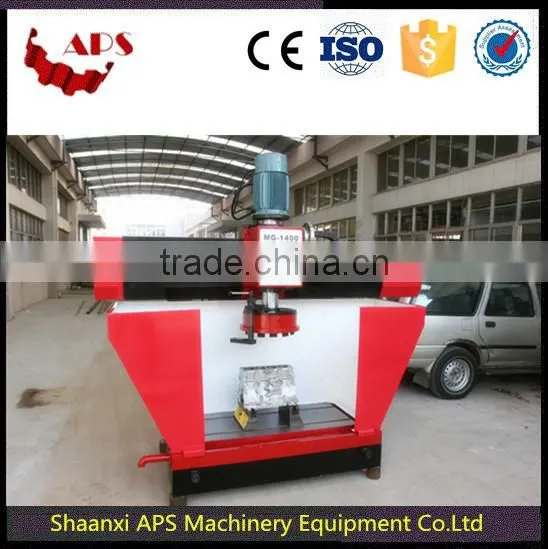

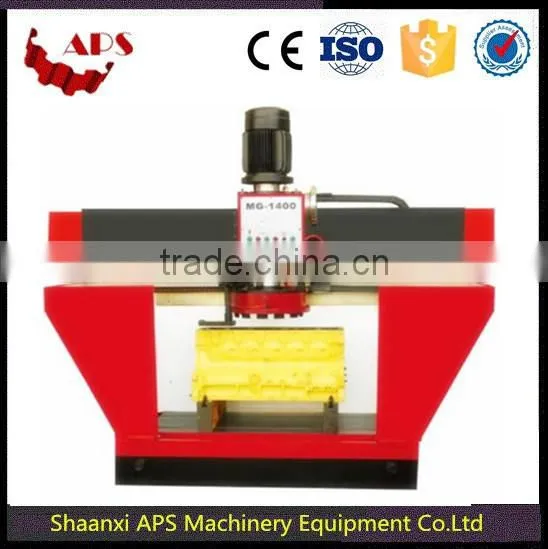

Cylinder Heads Grinding-Milling MG1400
The Surface Grinding – Milling Machine Model: MG-1400 is a medium size wet grinding machine which with its sturdy and well proportioned design offers a lot of advantages within large and medium size engine reconditioning as well as industrial grinding. The fact that the stability of the machine is constant regardless of the height of the item to be ground assures optimum stock removal and grinding result
Model |
MG1400 |
Spindle Speed |
200 ~ 1400 rpm stepless |
Grinding Wheel Motor |
4 kW |
Grinding Wheel Traverse Motor |
0.75 kW |
Coolant Pump Motor |
0.12 kW |
Capacity of Coolant Tank |
100 Litres |
Max. Grinding Length |
1400 mm |
Max. Grinding Width |
400 mm |
Max. Height of Work Piece |
800 mm |
Working Table Surface ( L×D ) |
1400×600 mm |
Grinding Wheel |
400 mm |
Number of Segments |
12 piece |
Vertical Movement of Grinding Wheel |
150 mm |
Grinding Wheel Traverse Speeds , Stepless |
200 ~ 1800 mm / min |
Length of Machine |
2200 mm |
Width of Machine |
1080 mm |
Max. Height of Machine |
2250 mm |
Min. Height of Machine |
2100 mm |
Flatness for Grinding |
0.015 mm / 300 mm |
Surface Roughness for Grinding |
Ra 0.45 |
Package Size ( L×D×H ) |
3000×1150×2250 mm |
N.W. |
3500 Kg |
G.W. |
4000 Kg |
