Specifications
TLSS series screw conveyor1.Large lifting capacity.
2.Long lifting distance.
3.Low break and noise.
4.Long service

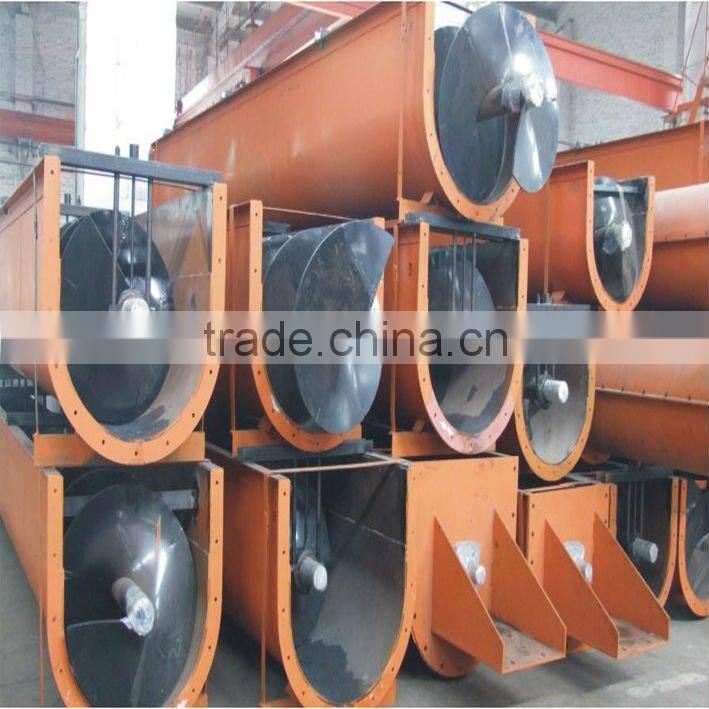

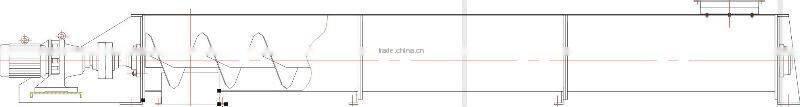

TLSS series screw conveyor
1.Large lifting capacity.
2.Long lifting distance.
3.Low break and noise.
4.Long service life
TLSS type series of screw conveyor is a fixed type conveying equipment of being used for milling, oil, feedstuff, grain and storage vocation.
1. It suit for horizontal or inclined conveying of powdered, granular or small block material.
2. The screw blade is with full-face type and blade type, screw body has levorotatory, dextrorotation and varying screw pitch type etc.
3. The middle hunger bearing is made of self-lubrication include nylon or filled with polyfluoroe material.
4. When it runs, the outside lubricating won’t be used to avoid the lubricating oil polluting the material.
Model |
Capacity (M3/h) |
Screw Size (mm) |
Revolution (rpm) |
|
Diameter |
Screw pitch |
|||
TLSS200 |
6-12.5 |
200 |
200 |
50-100 |
TLSS250 |
11-22 |
250 |
250 |
45-90 |
TLSS315 |
20-41 |
320 |
320 |
40-80 |
TLSS400 |
32-65 |
400 |
355 |
36-71 |
TLSS500 |
50-98 |
500 |
400 |
32-63 |
TLSS630 |
70-139 |
630 |
450 |
25-50 |
TLSS800 |
70-139 |
800 |
500 |
20-40 |
TLSS1000 |
140-280 |
1000 |
560 |
16-32 |
TLSS1250 |
200-390 |
1250 |
630 |
13-25 |
