Help CenterTDXL Series Grain Discharging Cart
Related Products
Specifications
TDXL series discharging cart1. Safety and stable running
2. Long life time
3. Small servicing work
4. Easy maintenance

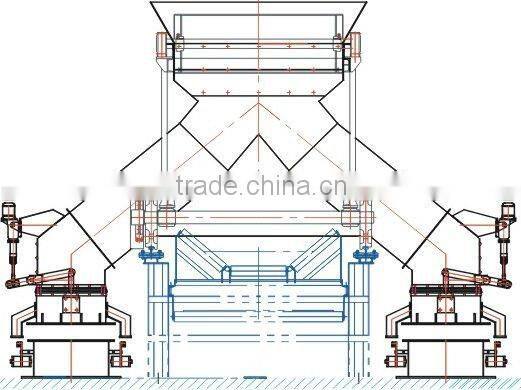

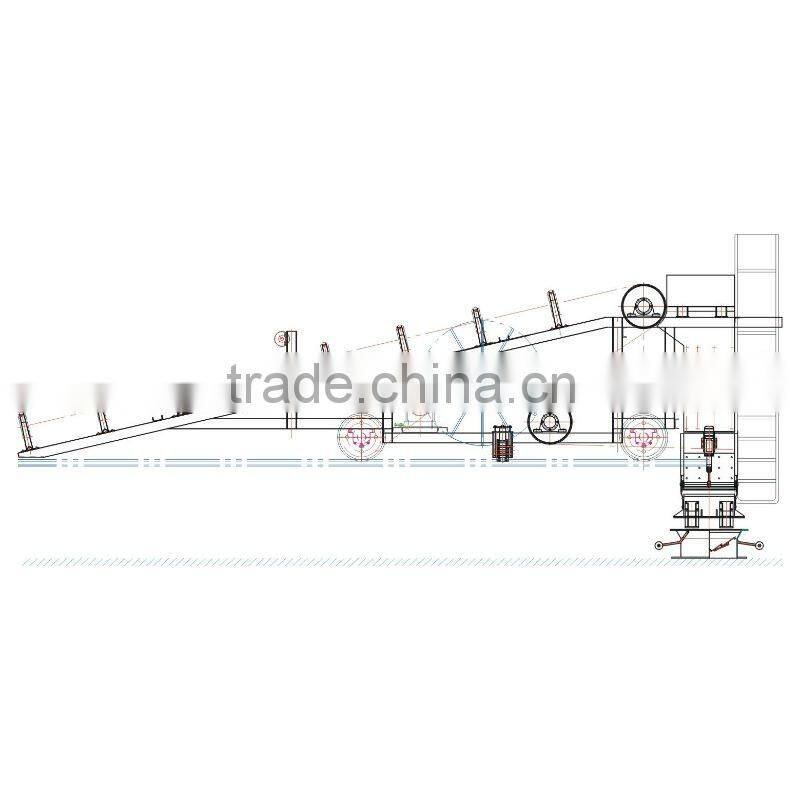

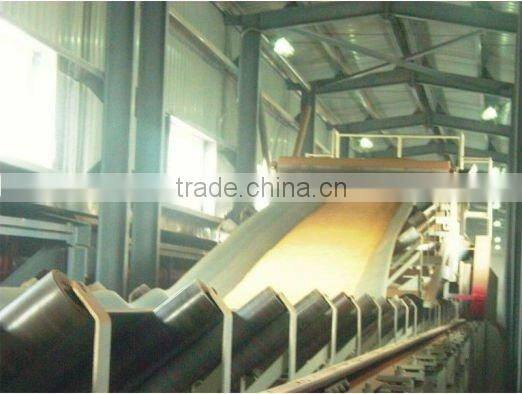

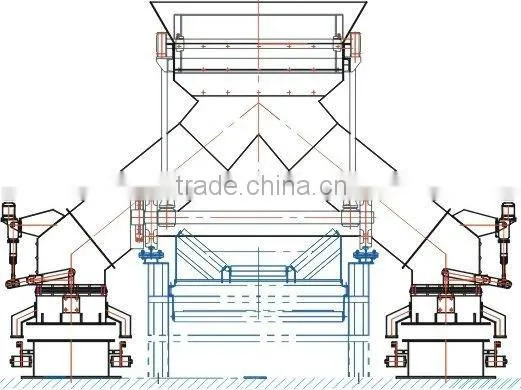

TDXL type discharging cart can be discharged at any points for the horizontal portion of general belt conveyor. The type of discharging cart will be suited for general belt conveyor. According to technical requirement, the fix point discharging cart will be installed chute rabbet seal device and auto-alignment control system, and any point continuous discharging cart can be auto controlled the discharge point randomly. The discharge cart could finish single side or double sides discharging.
1. The series of TDXL discharge cart which designed by our company safety and stable running, long life, small servicing work, easy maintenance etc.
2. It’s a ideal matching discharge equipment of the general belt conveyor at the field of grain and oil, coal, chemical industry, mining, construction material, electrical industry and so on.
3. It’s could be satisfied multi-point discharge
Model |
Belt Width (mm) |
Belt speed (m/s) |
Capacity (M3/h) |
Speed (m/s) |
Dip (°) |
Power (Kw) |
TDXL50 |
500 |
0.8-2.5 |
50-150 |
0.25 |
9-12 |
4 |
TDXL 65 |
650 |
0.8-2.5 |
90-220 |
0.25 |
9-12 |
5.5 |
TDXL 80 |
800 |
0.8-2.5 |
140-420 |
0.25 |
9-12 |
7.5 |
TDXL 100 |
1000 |
0.8-2.5 |
220-600 |
0.30 |
9-12 |
11 |
TDXL 120 |
1200 |
0.8-2.5 |
340-900 |
0.30 |
9-12 |
11 |
TDXL 140 |
1400 |
0.8-2.5 |
560-1450 |
0.30 |
9-12 |
11 |
TDXL 160 |
1600 |
0.8-2.5 |
700-2000 |
0.30 |
9-12 |
15 |
TDXL 180 |
1800 |
0.8-2.5 |
900-2300 |
0.30 |
9-12 |
18.5 |
TDXL 200 |
2000 |
0.8-2.5 |
1000-2800 |
0.30 |
9-12 |
22 |
