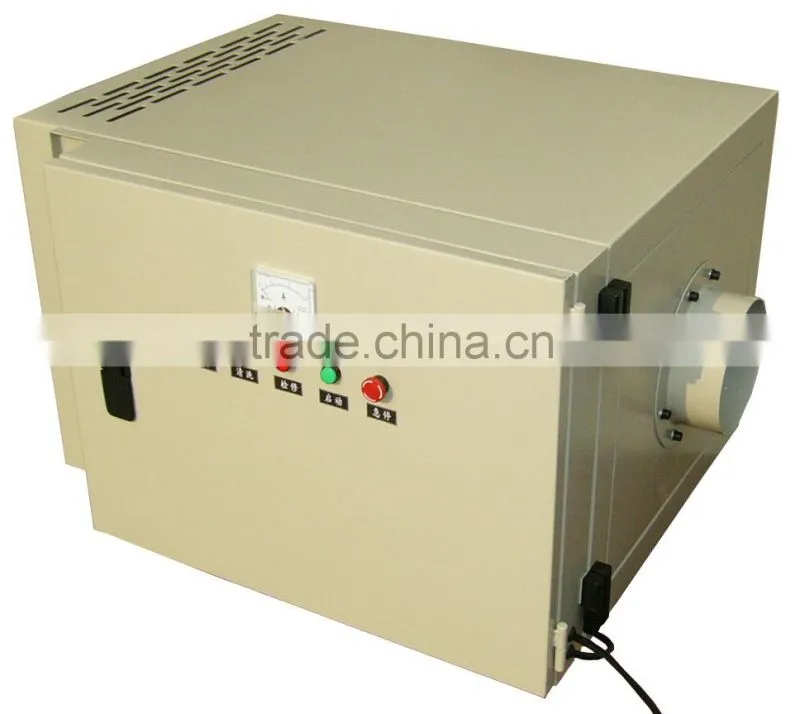

CNC lathe fume & oil mist purifier
Application Field:
The lubricant and cooling oil are easy to be gasified by the heat coming out during milling and grinding of the hi-speed operating equipments. These oil mists contain poisonous PCB (polychlorobiphenyl), which is severely harmful to the operating worker and infectant to the air. BG-500 series CNC lathe oil mist purifier collects and removes the dangerous mist, keep the air fresh in the workshop, and even helps prolong the maintenance period of the machines.
Operating Principle:
The dual-part style BG-500CNC lathe fume & oil mist purifier includes ionizing part and collecting part. A series of tungsten filament and opposite earthing plates constitude the ionizing part. The dirt motes are charged P/N by the ionizer. A series of parallel plates constitute the collecting part. The plates are charged by hi-tension DC form the electric field. Charged corpuscles are attracted by earthing plates, simultaneously repelled by charged plates. Thus, the dirt motes are easily removed.
ITEMS |
BG 550 |
Airflow Rating (M3/H) |
550CMH |
Power Consumption |
300 W |
Electrical Supply |
220 V |
Dimension: |
900*560*550 MM |
Flange Diameter: |
100 MM |
Weight: |
72 KG |
Noise: |
70dp(A) |
Capacity: |
Min particle 0.01μM |
Efficiency |
Up to 99.9% |
Cabinet: |
1.1 mm thickness welded stainless steel sheet
BG 450 |
Finish: |
High Bake Epoxy Powder |
Airflow: |
Horizontal. Right/Left or Left/Right |
Installation: |
Free standing, wall or frame mounted
|
Electrical Connection: |
Direct to junction box on unit |
Pre-/after-filter: |
Washable aluminium mesh |
Controls: |
On/Off Switch with operating light |
Electric Field |
Spiked design; aluminium / stainless steel blades |
Insulators: |
Teflon |
Voltage: |
Ionizer - 12 KV / Collector- 6 KV |
Power Supply: |
220V/AC 50~60Hz |
