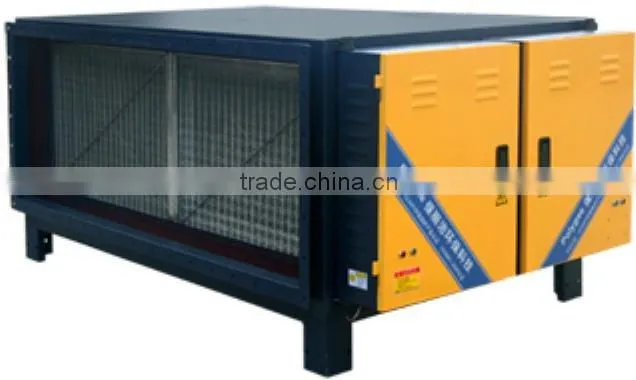

ESP electrostatic precipitator for kitchen series
Air Purifier (Electrostatic) for industrial and commercail use
1) Purifying the waste gas from kitchen, suitable for restaurants and hotels 2) Captures oil mist, smoke, dust, etc.
LK-QA-Series AIR PURIFIER is specially designed for the purifIcation of the exhaust gas from hotel, restaurant, canteen and food processing factories with varies of sizes and fittings. Besides the standard line-ups, we provider tailor-made solutions to all exhaust system.
The dual-stage style LK-QA consists of ionization unit & collection unit. A Series of tungsten filament and opposite earthing plates constitute the ionization unit. The motes are charged +/- by the ionization unit. A Series of parallel plates constitute the collection part. The plates are charged +/-by hi-Voltage DC (same polarity, half voltage as the ionization unit), which forms the electric field. Charged motes are attracted by earthing plates, simultaneously repelled by charged plates, then the motes are easily removed.
Technical Features:
1. Hi-efficiency: Collecting all sizes of oil mist high efficiently.
2. Flexible: Modularized purification units can fixed optionally, the quantity of the units can be adjusted according to the workload and purifying levels.
3. Convenient: Drawer-Style Modularized purification units are easy to be fixed, maintained and cleaned.
4. Advanced: Static power supply control system can automatically adjust electric field intensity, which keeps the long-term and durable hi-effciency.
5. Safe: With carefully designed safety system, the high tension supply switches off automatically.
Type |
Airflow (CMF) |
Dimension (MM) |
Flange (MM) |
Weight (KGS) |
Efficiency |
Input Voltage |
Power (W) |
|
LK-20 |
Single Unit |
2000 |
590*500*666 |
404*474 |
55 |
≥99.5% |
220 V |
40 |
LK-30 |
Single unit |
3000 |
800*500*666 |
612*474 |
65 |
60 |
||
LK-40 |
Single unit |
4000 |
1060*500*666 |
874*474 |
75 |
80 |
||
LK series Commercial and Industrial Air Cleaner Manufacturer
