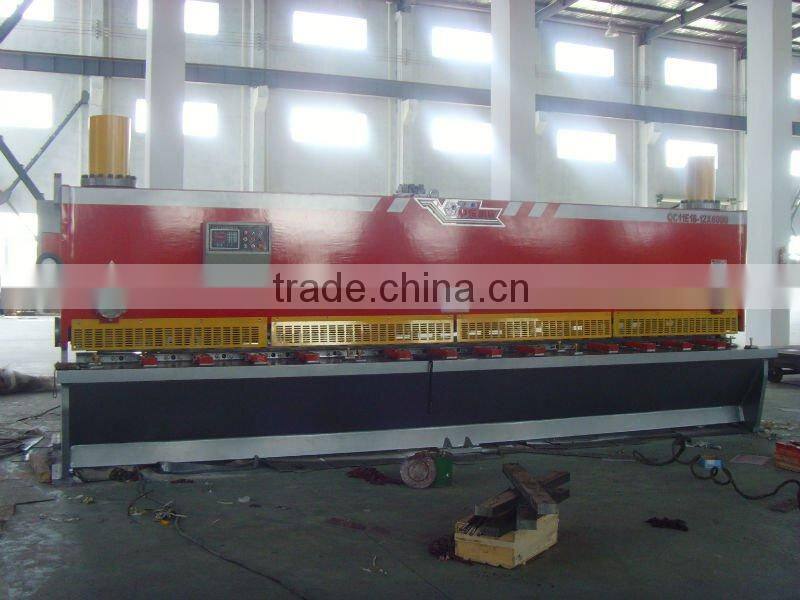

hydraulic guillotine shearing machine
1. The frame is steel welded structure, have sufficient strength and rigidity, eliminate internal stress and high frequency vibration, to ensure the overall accuracy of the fuselage. Has a good rigidity, two cylinders fixed on the left and right columns (wallboard).
2. QC11Y hydraulic guillotine shearing machine blades has four sides, every side can be use.
3. QC11Y hydraulic guillotine shearing machine can be adjust shear angle and blades gap.

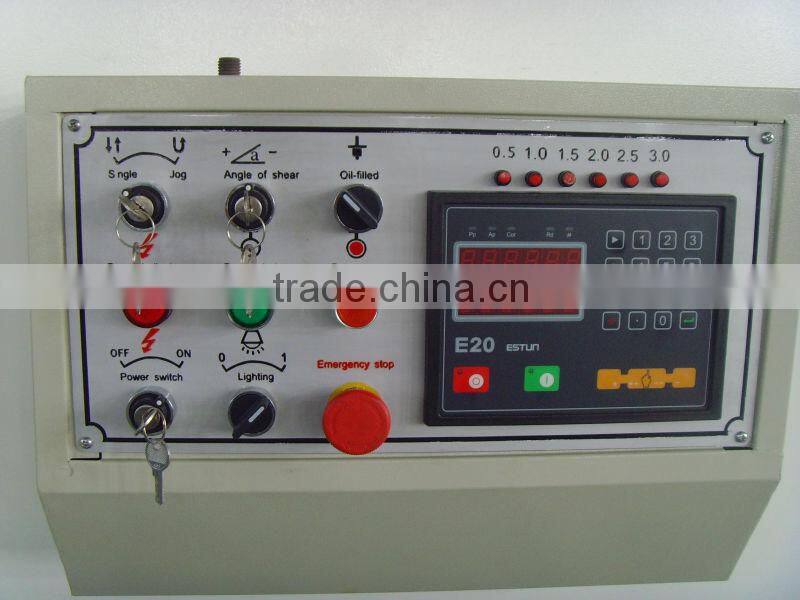

5. E20 NC system control , E20 NC system can be digital display , also can be simple control and locate back gauge. our E20 NC system humanized design , display shear angle.
6. We adopt Taiwan HIWIN linear guides, ball screw, improve accuracy.
main specification and technical parameters:
| Model | Max shearing thickness mm | Max shearing width mm | Strokes min -1 | Scope of back stop mm | shearing angle ° | Throat depth mm | Motor power kw | Overall dimension mm(L×W×H) |
| 12×6000 | 12 | 6000 | 8-35 | 10-1000 | 0.5-2.5 | 100 | 37 | 6590×2095×2710 |
