Specifications
Plastic frame, Less weight60*60cm, 45W,4300lm,2.5KG
Dimmable, Emergency 3 hours
TUV,CE,CB,SAA, C-Tick approved

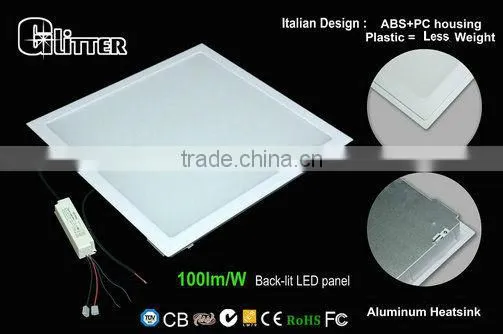

Plastic frame 60*60cm LED Panel light
Main Feature
1) Back-lit, 95-100lm/W, PF>0.9, CRI 85
2) Plastic Frame, 2.5KG, safe in use
3) More choice installing: can be built in with clips like downlights
4) Intelligent design:
Emergency (Last 3 hours after power off)/
Dimmable series (0-10V/ PWM Dimmable)
Light sensor+ Motion sensor
5) Own designed LED Driver (SAA,GS,CB approved), safe and better Compatibility
Parameter
No. |
Parameter |
Unit |
Description |
|
1 |
Power supply |
V |
AC85-265 |
|
2 |
Current frequency |
Hz |
50/60 |
|
3 |
Working voltage |
V |
DC24 |
|
4 |
Power consumption |
W |
45 |
|
5 |
Color temperature |
Warm white |
lm |
2800-3500 |
Neutral white |
3800-4500 | |||
Cool white |
5500-6500 |
|||
6 |
Lumen |
Warm white |
K |
>3800 |
Neutral white |
>4050 |
|||
Cool white |
>4300 |
|||
7 |
Material |
|
ABS+Aluminun |
|
8 |
Operating temperature |
°C |
-10~+40 |
|
9 |
Humidity |
|
10-80% |
|
10 |
certificate |
TUV, CE, RoHS, SAA, CB, C-Tick |
||
11 |
Luminaires Class |
Ⅲ |
||
Dimension:
Package:
Package |
QTY/CTN |
Carton Size |
G.W. |
Volume Weight |
2pcs |
620*140*620mm |
11.00kgs |
10.76kgs |
Application
• Offices
• Kitchens
• Bathrooms
• Library
• Department Store & Boutiques
• Restaurant & Cafeteria
• Conference Rooms
• Hospital & Laboratory
