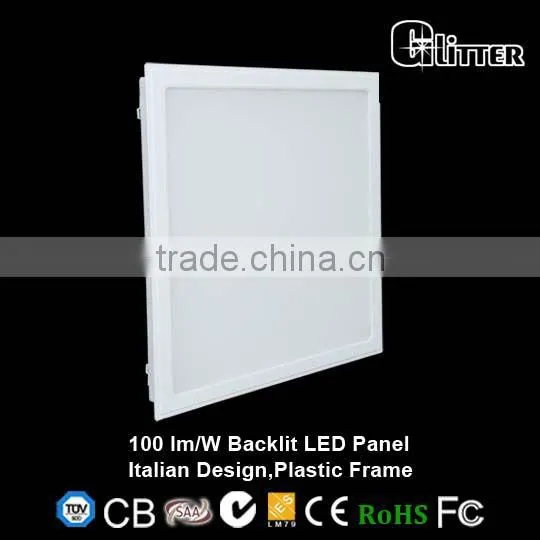

Israel Market Back-lit 100lm/w 45W LED Panel Light 600*600mm With CB

Shenzhen Glitter Optoelectronic Technology Co., Ltd.
Israel Market Back-lit 100lm/w 45W LED Panel Light 600*600mm With CB thumbnail-1
Israel Market Back-lit 100lm/w 45W LED Panel Light 600*600mm With CB photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
Epistar SMD 3014
Warranty(Years):
5
Input Voltage(V):
85-265
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar SMD 3014
Warranty(Years) 5
Input Voltage(V) 85-265
Lamp Power(W) 45
Lamp Luminous Flux(lm) 4200-4500
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Other, 2700K-7000K
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 40000
Lamp Body Material ABS
IP Rating IP44
Certification C-tick, CCC, CE, EMC, FCC, GS
Place of Origin Guangdong, China
Brand Name GLITTER
Model Number PL-0606-4505

Specifications

1.Easier installation for more kinds of ceiling
2. only 2.5KG for 60x60x43cm LED panel
3.GS,CB,SAA,C-Tick certified LED dirver

Specifications:

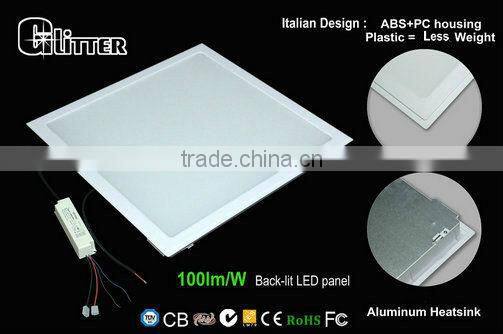

1.Italian design Back-lit LED panel light, TUV,SAA,CB,GS approved LED panel light,95-100lm/W LED light
2.Back-lit LED Panel Light PL-0606-4505
3.95-100lm/W with TUV,SAA,CB,C-Tick
4.ABS+PC frame+Aluminum heat sink



Products features :
  • Easier installation for more kinds of ceiling
  • Less weight : only 2.5KG for 60x60x43cm LED panel
  • Higher lighting efficiency: 95-100lm/W
  • GS,CB,SAA,C-Tick certified LED dirver (better compatibility , efficiency>90%)

Technical Specification :



1). Technical parameter

Item No.

PL-0606- 4503

Dimension

595x595x43mm

Voltage

AC85V-265V 50/60HZ

Power

45W

LED Type

SMD3014

LED Quantity

484pcs

Luminous Flux

Warm white

3900lm

Neutral white

4000lm

Pure white

4300lm

Color Temperature

(CCT)

Warm white

2800-3500K

Neutral white

3800-4500K

Pure white

5500- 6500K

Beam Angle

120°

Color Rendering Index (CRI)

75-85

Power Supply Efficiency

>90%

LED Luminous Efficiency

Up to 100lm/W

Power Factor (PF)

>0.95

Total Harmonic Distortion (THD)

≤15%

IP Rank

IP 50

Net Weight

2.50 Kgs

Certificate

CE, RoHS, SAA, TUV, CB, C-Tick



 Application :

 · Offices

· Kitchens

· Bathrooms

· Library

· Department Store & Boutiques

· Restaurant & Cafeteria

· Conference Rooms

· Hospital & Laboratory

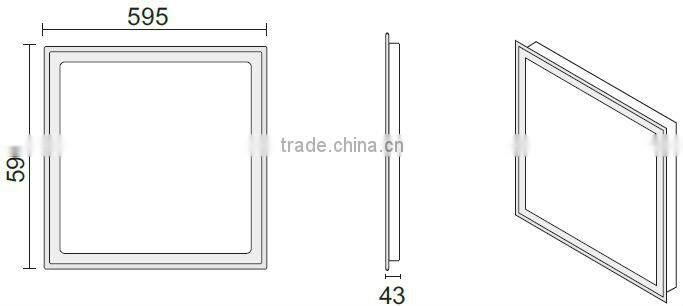

Dimension (Unit: mm)



Installation :



 Warning: Before installation, please make sure the power is turned off .



A: Recessed Type



B: Suspended Type :



Packing information :



Material

QTY/CTN

Carton Size

G.W.

Net Weight

Carton

2pcs

650*650*160mm

7kgs

5 kgs







You inquiry are warmly welcome ,we would like to provide our best quality products and excellent pre-sale and after-sale service
