Home > Lights & Lighting > LED Interior Lighting > LED Panel Light > Plastic Frame 595*595 LED Panel Light (Dimmable, Emergency,TUV,CE,CB,SAA, C-Tick)

Plastic Frame 595*595 LED Panel Light (Dimmable, Emergency,TUV,CE,CB,SAA, C-Tick)

Shenzhen Glitter Optoelectronic Technology Co., Ltd.
Plastic Frame 595*595 LED Panel Light (Dimmable, Emergency,TUV,CE,CB,SAA, C-Tick) thumbnail-1
Plastic Frame 595*595 LED Panel Light (Dimmable, Emergency,TUV,CE,CB,SAA, C-Tick) photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
SMD 3014
Warranty(Years):
3
Input Voltage(V):
AC 85-265
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD 3014
Warranty(Years) 3
Input Voltage(V) AC 85-265
Lamp Power(W) 45
Lamp Luminous Flux(lm) 3800-4300
Lamp Luminous Efficiency(lm/w) 95
Color Temperature(CCT) Other, 2800-6500K
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 50000
Lamp Body Material Plastic
IP Rating Other, IP40
Certification CCC, CE, C-tick, EMC, FCC, GS, GOST, LVD, PSE, SAA
Place of Origin Guangdong, China
Brand Name Glitter
Model Number PL-0606-4503

Specifications

Plastic frame, less weight
595*595mm, 45W,4300lm,2.5KG
Dimmable, Emergency 3 hours,Light+Montion sensor
TUV,CE,CB,SAA, C-Tick

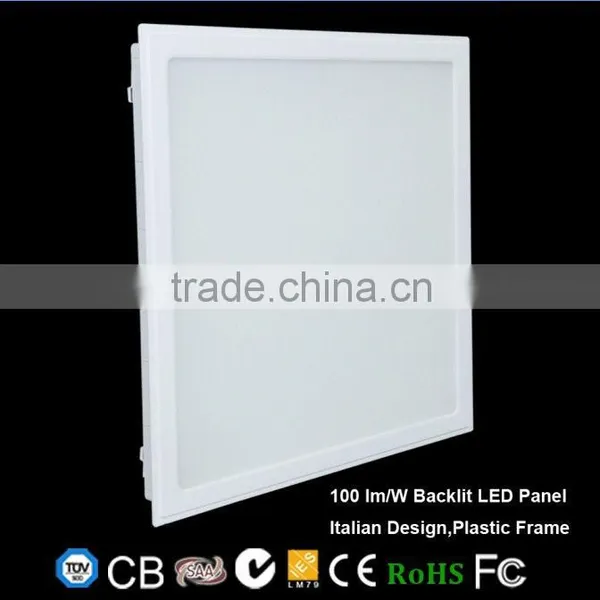

Plastic frame 595*595mm LED Panel light





Main Feature



1) Back-lit, 95-100lm/W, PF>0.95, CRI 85

2) Plastic Frame, 2.5KG, safe in use

3) More choice installing: can be built in with clips like downlights

4) Intelligent design:

    Emergency (Last 3 hours after power off)/

    Dimmable series (0-10V/ PWM Dimmable)

    Light sensor+ Motion sensor

5) Own designed LED Driver (SAA,GS,CB approved), safe and better Compatibility





Parameter



No.

Parameter

Unit

Description

1

Power supply

V

AC85-265

2

Current frequency

Hz

50/60

3

Working voltage

V

DC24

4

Power consumption

W

45

5

Color temperature

Warm white

lm

 2800-3500

Neutral white

3800-4500

Cool white

5500-6500

6

Lumen

Warm white

K

>3800

Neutral white

>4050

Cool white

>4300

7

Material



ABS+Aluminun

8

Operating temperature

°C

-10~+40

9

Humidity



10-80%

10

certificate



 TUV, CE, RoHS, SAA, CB,  C-Tick

11

Luminaires Class



Ⅲ



Plastic frame 595*595 LED Panel light (Dimmable, Emergency,TUV,CE,CB,SAA, C-Tick)



 Dimension:

 Plastic frame 595*595 LED Panel light (Dimmable, Emergency,TUV,CE,CB,SAA, C-Tick)

Package:



Package

QTY/CTN

Carton Size

G.W.

Volume Weight

2pcs

620*140*620mm

11.00kgs

10.76kgs

 Plastic frame 595*595 LED Panel light (Dimmable, Emergency,TUV,CE,CB,SAA, C-Tick)



Application



• Offices

• Kitchens

• Bathrooms

• Library

• Department Store & Boutiques

• Restaurant & Cafeteria

• Conference Rooms

• Hospital & Laboratory
