Specifications

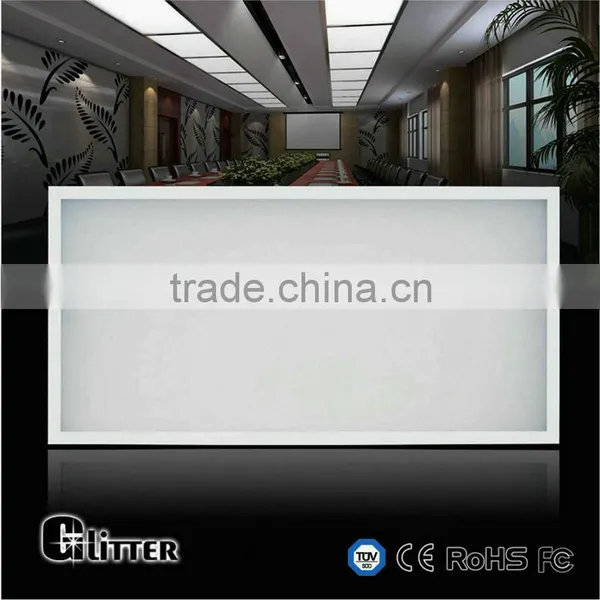

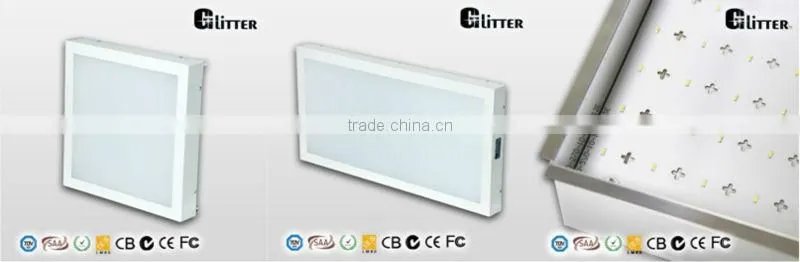

88W LED panel, Back-lit LED panel 1200x600 , TUV,CE,SAA,CB,GS approved LED panel lighting,Back-lit LED Panel 1200x600 --PL-0612-8803
1. Outstanding Heat Dissipation: help to reduce the luminous degradation and extent lifespan of products
2. High Lighting Transmittance Efficiency: up to 93% by imported diffuser from Japan
3. High Lighting Efficiency: over 100lm/W by Epistar SMD 3014 LED
4. GS,CB,SAA,C-Tick certified LED dirver (better compatibility , efficiency>90%)
1). Technical parameter
Item No. | PL-0612- 8803 (LED panel 1200x600) | |
Dimension | 595x1198x48mm | |
Voltage | AC85V-265V 50/60HZ | |
Power | 88W | |
LED Type | SMD3014 | |
LED Quantity | 880pcs | |
Luminous Flux | Warm white | >7000lm |
| Neutral white | >7500lm | |
| Pure white | >8500lm | |
Color Temperature (CCT) | Warm white | 2800-3500K |
| Neutral white | 3800-4500K | |
| Pure white | 5500- 6500K | |
Beam Angle | 120° | |
Color Rendering Index (CRI) | >80 | |
Power Supply Efficiency | >90% | |
Luminous Efficiency | Up to 100lm/W | |
Power Factor (PF) | >0.95 | |
Total Harmonic Distortion (THD) | ≤15% | |
IP Rank | IP 44 | |
Net Weight | 10.15 Kgs | |
Certificate | CE, RoHS, SAA, TUV, CB,GS | |
Application :
· Offices
· Kitchens
· Bathrooms
· Library
· Department Store & Boutiques
· Restaurant & Cafeteria
· Conference Rooms
· Hospital & Laboratory
Dimension (Unit: mm)
Installation :
Warning: Before installation, please make sure the power is turned off .
A: Recessed Type
B: Suspended Type :
Packing information :
Material | QTY/CTN | Carton Size | G.W. | Net Weight |
Carton | 2pcs | 660*1300*180mm | 20.20kgs | 30.88 kgs |
