Help CenterHigh Brightness 600*600mm 45W LED Panel Light for Project Lighting With TIV CE and Five Years Warranty LED Panel Light
Related Products
-
Israel Market Back-lit 100lm/w 45W LED Panel Light 600*600mm With CBNegotiableMOQ: 1 Piece -
LED Panel 1200x600 With TUV,CE.SAA,GS,CB CertificateNegotiableMOQ: 1 Piece
-
300x1200 LED Panel Light With TUV,CE.SAA,GS,CB CertificateNegotiableMOQ: 1 Piece
-
Back-lit 30x30 LED Panel (up to 100lm/W With TUV,CE.SAA,GS,CB Certificates)NegotiableMOQ: 1 Piece
-
Back-lit 30x60 LED Panel (95-100lm/W) With TUV,SAA,CB, Very Good Price LED PanelNegotiableMOQ: 1 Piece
Specifications
1.Easier installation for more kinds of ceiling2. only 2.5KG for 60x60x43cm LED panel
3.GS,CB,SAA,C-Tick certified LED dirver
Specifications:
1.Italian design Back-lit LED panel light, TUV,SAA,CB,GS approved LED panel light,95-100lm/W LED light
2.Back-lit LED Panel Light PL-0606-4505
3.95-100lm/W with TUV,SAA,CB,C-Tick

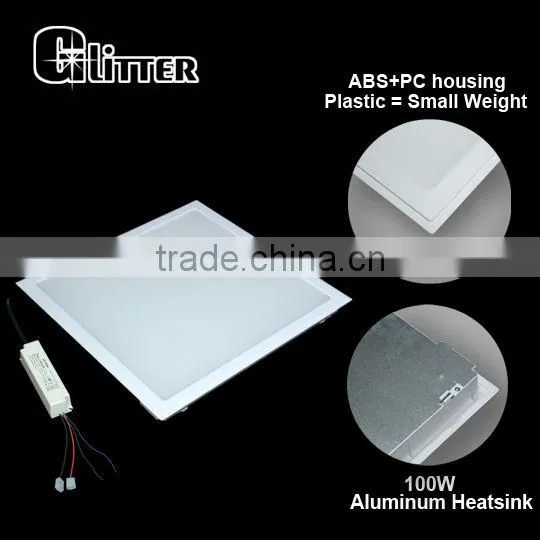

4.ABS+PC frame+Aluminum heat sink
- Easier installation for more kinds of ceiling
- Less weight : only 2.5KG for 60x60x43cm LED panel
- Higher lighting efficiency: 95-100lm/W
- GS,CB,SAA,C-Tick certified LED dirver (better compatibility , efficiency>90%)
Technical Specification :
1). Technical parameter
Item No. | PL-0606- 4503 | |
Dimension | 595x595x43mm | |
Voltage | AC85V-265V 50/60HZ | |
Power | 45W | |
LED Type | SMD3014 | |
LED Quantity | 484pcs | |
Luminous Flux | Warm white | 3900lm |
| Neutral white | 4000lm | |
| Pure white | 4300lm | |
Color Temperature (CCT) | Warm white | 2800-3500K |
| Neutral white | 3800-4500K | |
| Pure white | 5500- 6500K | |
Beam Angle | 120° | |
Color Rendering Index (CRI) | 75-85 | |
Power Supply Efficiency | >90% | |
LED Luminous Efficiency | Up to 100lm/W | |
Power Factor (PF) | >0.95 | |
Total Harmonic Distortion (THD) | ≤15% | |
IP Rank | IP 50 | |
Net Weight | 2.50 Kgs | |
Certificate | CE, RoHS, SAA, TUV, CB, C-Tick | |

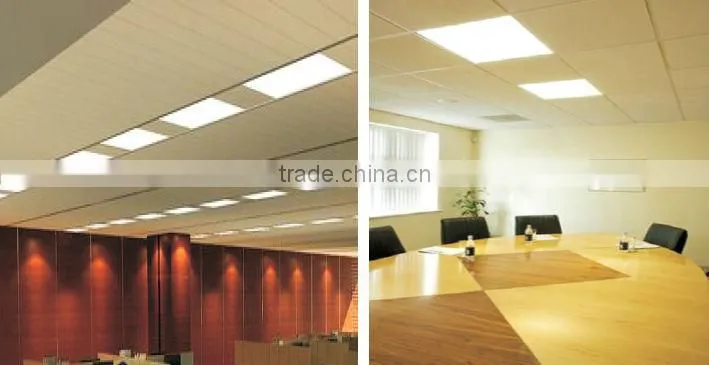

Application :
· Offices
· Kitchens
· Bathrooms
· Library
· Department Store & Boutiques
· Restaurant & Cafeteria
· Conference Rooms
· Hospital & Laboratory
Dimension (Unit: mm)
Installation :
Warning: Before installation, please make sure the power is turned off .

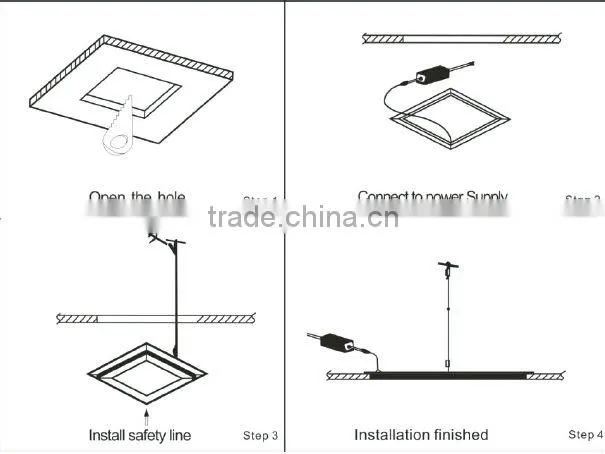

A: Recessed Type

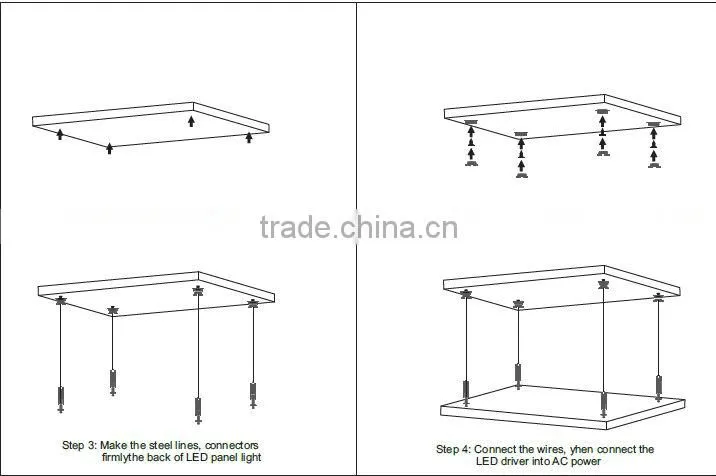

B: Suspended Type :

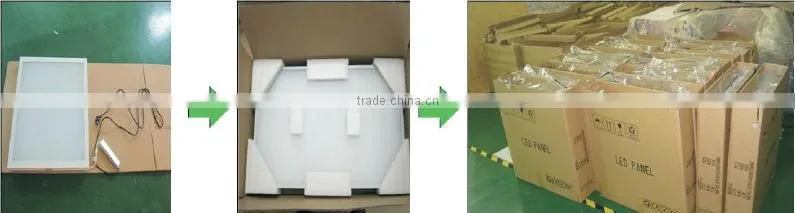

Packing information :
Material | QTY/CTN | Carton Size | G.W. | Net Weight |
Carton | 2pcs | 650*650*160mm | 7kgs | 5 kgs |
You inquiry are warmly welcome ,we would like to provide our best quality products and excellent pre-sale and after-sale service
Encore 5years warranty 45W 60x60cm Dimmable Backlit LED Panel Light
