Home > Lights & Lighting > LED Interior Lighting > LED Panel Light > 595*595mm 45W LED Panel Light PL-0606-4503 (SAA, C-Tick, TUV,RoHS)

595*595mm 45W LED Panel Light PL-0606-4503 (SAA, C-Tick, TUV,RoHS)

595*595mm 45W LED Panel Light PL-0606-4503 (SAA, C-Tick, TUV,RoHS) thumbnail-1
595*595mm 45W LED Panel Light PL-0606-4503 (SAA, C-Tick, TUV,RoHS) photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
SMD 3014
Warranty(Years):
3
Input Voltage(V):
AC 85-265
Contact Supplier Request Quote Chat Now
Shenzhen Glitter Optoelectronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD 3014
Warranty(Years) 3
Input Voltage(V) AC 85-265
Lamp Power(W) 45
Lamp Luminous Flux(lm) 3800-4300
Lamp Luminous Efficiency(lm/w) 95
Color Temperature(CCT) Other, 2800-6500K
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating Other, IP 40
Certification CCC, CE, C-tick, EMC, FCC, GS, GOST, LVD, PSE, SAA
Place of Origin Guangdong, China
Brand Name Glitter
Model Number PL-0606-4503

Specifications

PL-0606-4503 595*595 led panel light
High efficiency 95lm/W
Dimmable and Emergency (3 hours)
Own designed Driver(GS,SAA,GS)

 PL-0606-4503: 595*595*48mm



595*595mm 45W LED Panel light PL-0606-4503 (SAA, C-Tick, TUV,RoHS)



1- Features and Advantages



•  Back-lit, perfect heat dissipation, well protected the chips
• High light efficiency  up to 100lm/W by SMD 3014
•  Own designed LED Driver (GS,CB,SAA approved), better compatibility and stability
•  Intelligent design:  Emergency (3 hours)/ Dimmable series (DALI/ 0-10V/ PWM)/ Light +Motion sensor
•  No such hazard. No RF or electronic magnetic interference
•  3 yrs warranty




2- Technical Specifications



No.

Parameter

Unit

Description

1

Power supply

V

AC85-265

2

Current frequency

Hz

50/60

3

Working voltage

V

DC24

4

Power consumption

W

45

5

Color temperature

Warm white

K

2800-3500

Neutral white

3800-4500

Cool white

5500-6500

6

Lumen

Warm white

lm

  >3800

Neutral white

>4000

Cool white

>4300

7

Material



PMMA, Steel coating

8

Operating temperature

°C

-10~+40

9

Humidity



10-80%

10

certificate



CE( TUV, ), RoHS, SAA,  C-Tick

11

Luminaires Class



Ⅲ

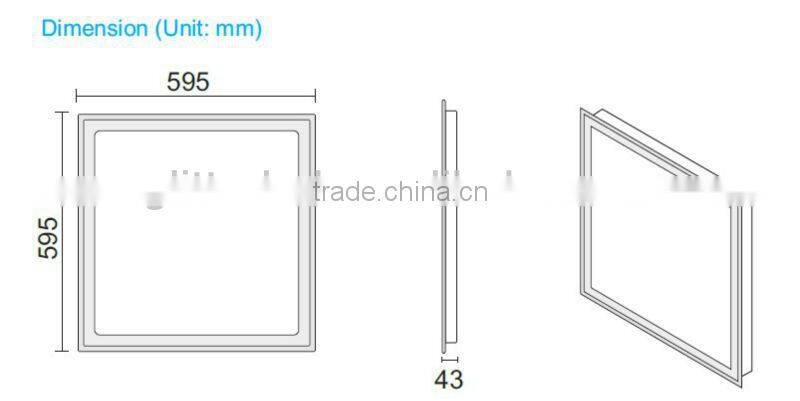

3- Dimension



595*595mm 45W LED Panel light PL-0606-4503 (SAA, C-Tick, TUV,RoHS)



4- Installing

 595*595mm 45W LED Panel light PL-0606-4503 (SAA, C-Tick, TUV,RoHS)

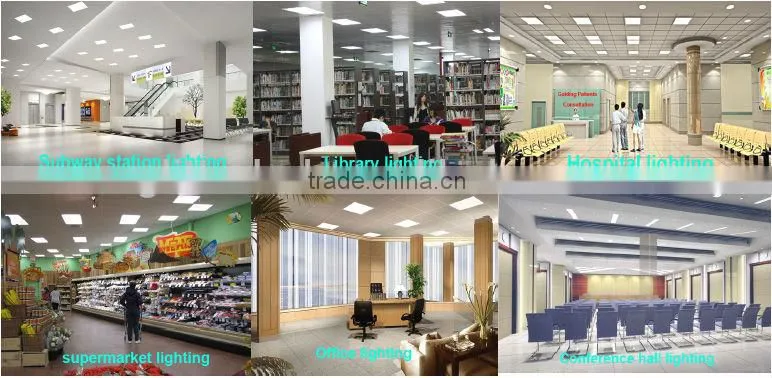

5- Application



• Offices

• Kitchens

• Bathrooms

• Library

• Department Store & Boutiques

• Restaurant & Cafeteria

• Conference Rooms

• Hospital & Laboratory

      595*595mm 45W LED Panel light PL-0606-4503 (SAA, C-Tick, TUV,RoHS)

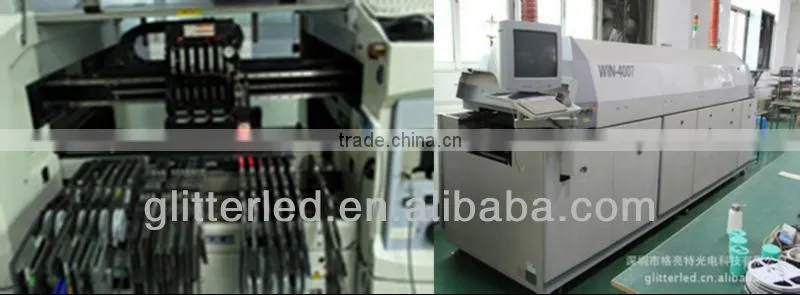

6- Production view



SMT Machine and Welding soldering machine



595*595mm 45W LED Panel light PL-0606-4503 (SAA, C-Tick, TUV,RoHS)



Test machine: Temp test, Integrating Sphere, Photometer:







7- Package



Package

QTY/CTN

Carton Size

G.W.

Volume Weight

2pcs

620*140*620mm

11.00kgs

10.76kgs



595*595mm 45W LED Panel light PL-0606-4503 (SAA, C-Tick, TUV,RoHS)
