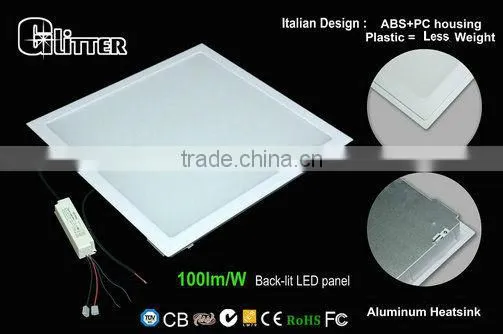

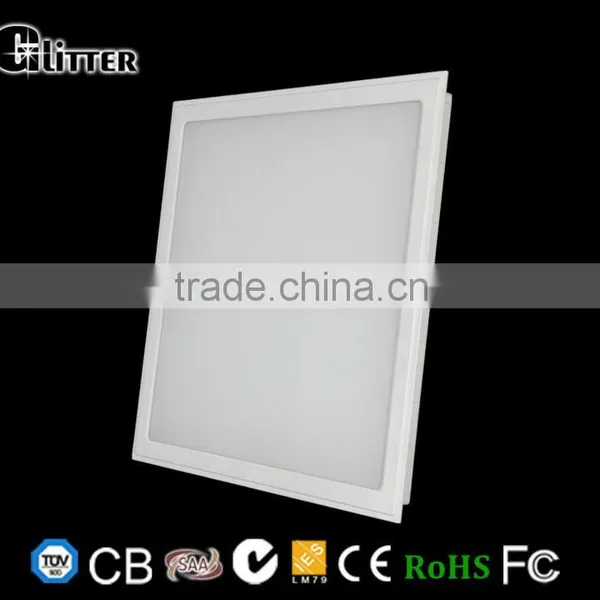

95-100lm/W LED Ceiling Panel 60x60 (Italian Design LED Panel 600x600 With TUV,SAA,GS,CB)

95-100lm/W LED Ceiling Panel 60x60 (Italian Design LED Panel 600x600 With TUV,SAA,GS,CB) thumbnail-1
95-100lm/W LED Ceiling Panel 60x60 (Italian Design LED Panel 600x600 With TUV,SAA,GS,CB) photo-1
US$ 60 - 80 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
SMD3014
Warranty(Years):
3
Input Voltage(V):
AC85-265V
Contact Supplier Request Quote Chat Now
Shenzhen Glitter Optoelectronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD3014
Warranty(Years) 3
Input Voltage(V) AC85-265V
Lamp Power(W) 45
Lamp Luminous Flux(lm) 4300
Lamp Luminous Efficiency(lm/w) 95
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 80000
Lamp Body Material Other, ABS+PC frame + Aluminum
IP Rating IP44
Certification EMC, FCC, GS, LVD, SAA
Place of Origin Guangdong, China
Brand Name Glitter
Model Number PL

Specifications

Italian design Back-lit LED ceiling panel 60x60
TUV,SAA,CB,GS approved LED panel light,
95-100lm/W LED light

LED ceiling panel 60x60 PL-0606-4503(LED panel 600x600)


Italian design LED panel ( 95-100lm/W with TUV,SAA,CB,C-Tick )
ABS+PC frame+Aluminum heat sink

95-100lm/W LED ceiling panel 60x60 (Italian design LED panel 600x600 with TUV,SAA,GS,CB)

Products features :
  • Easier installation for more kinds of ceiling
  • Less weight : only 2.5KG for 60x60cm LED panel
  • Higher lighting efficiency: 95-100lm/W
  • GS,CB,SAA,C-Tick certified LED dirver (better compatibility , efficiency>90%)

Technical Specification :



1). Technical parameter



Item No.

PL-0606- 4503

Dimension

595x595x43mm

Voltage

AC85V-265V 50/60HZ

Power

45W

LED Type

SMD3014

LED Quantity

484pcs

Luminous Flux

Warm white

3900lm
Neutral white

4000lm
Pure white

4300lm

Color Temperature

(CCT)

Warm white

2800-3500K
Neutral white

3800-4500K
Pure white

5500- 6500K

Beam Angle

120°

Color Rendering Index (CRI)

75-85

Power Supply Efficiency

>90%

Luminous Efficiency

Up to 100lm/W

Power Factor (PF)

>0.95

Total Harmonic Distortion (THD)

≤15%

IP Rank

IP 50

Net Weight

2.50 Kgs

Certificate

CE, RoHS, SAA, TUV, CB, C-Tick





Application :



· Offices

· Kitchens

· Bathrooms

· Library

· Department Store & Boutiques

· Restaurant & Cafeteria

· Conference Rooms

· Hospital & Laboratory





Dimension (Unit: mm)



95-100lm/W LED ceiling panel 60x60 (Italian design LED panel 600x600 with TUV,SAA,GS,CB)

Installation :



 Warning: Before installation, please make sure the power is turned off .



A: Recessed Type

95-100lm/W LED ceiling panel 60x60 (Italian design LED panel 600x600 with TUV,SAA,GS,CB)



B: Suspended Type :

95-100lm/W LED ceiling panel 60x60 (Italian design LED panel 600x600 with TUV,SAA,GS,CB)





Packing information :



Material

QTY/CTN

Carton Size

G.W.

Net Weight

Carton

2pcs

650*650*160mm

7kgs

5 kgs





95-100lm/W LED ceiling panel 60x60 (Italian design LED panel 600x600 with TUV,SAA,GS,CB)
