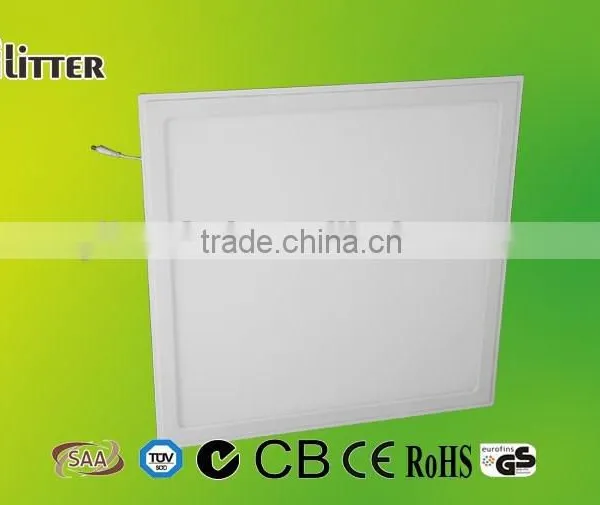

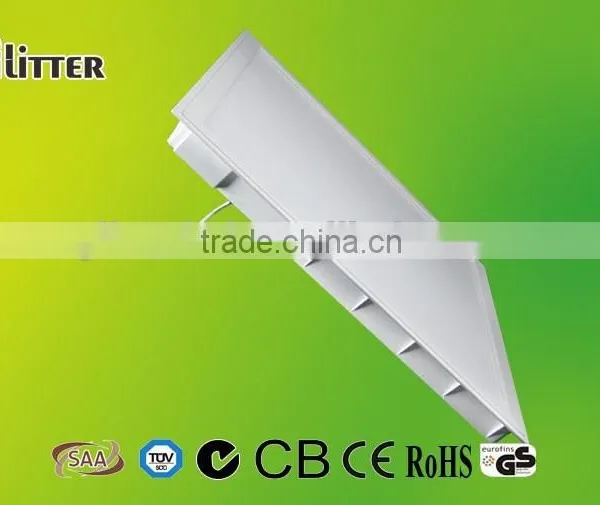

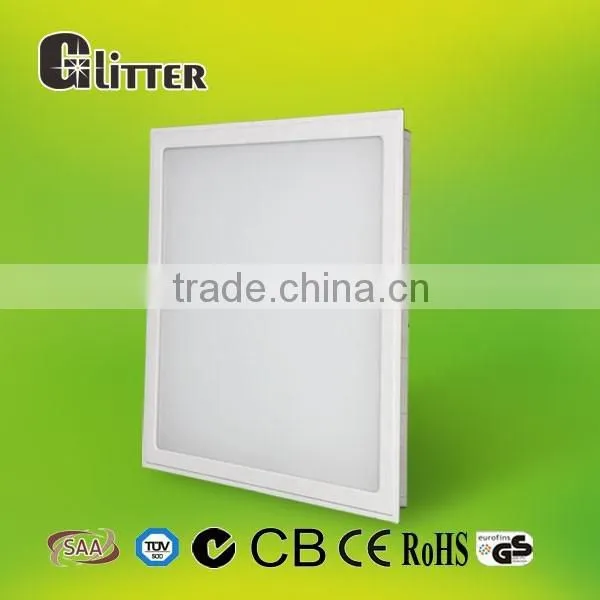

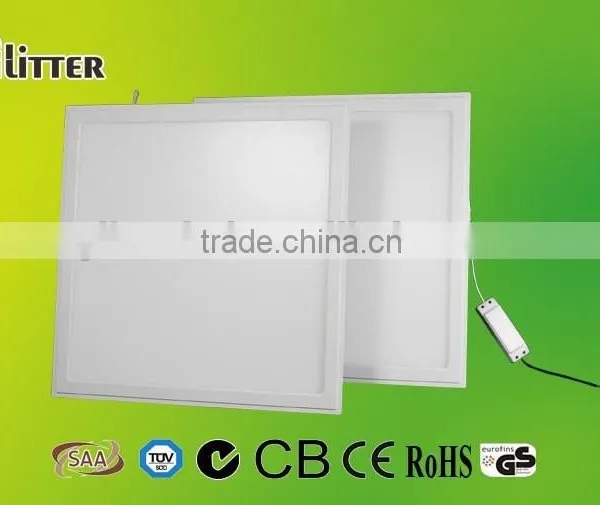

Save energy lamp 600x600 300x300 300x1200 led panel light CE CB SAA RoHS TUV certification with 5 years warranty
Main Feature of led panel light 2x2
1. More efficiency: 120lm/W, PF>0.95, CRI 80
2. More Elegant : Perfect finishing, 2.0KG only

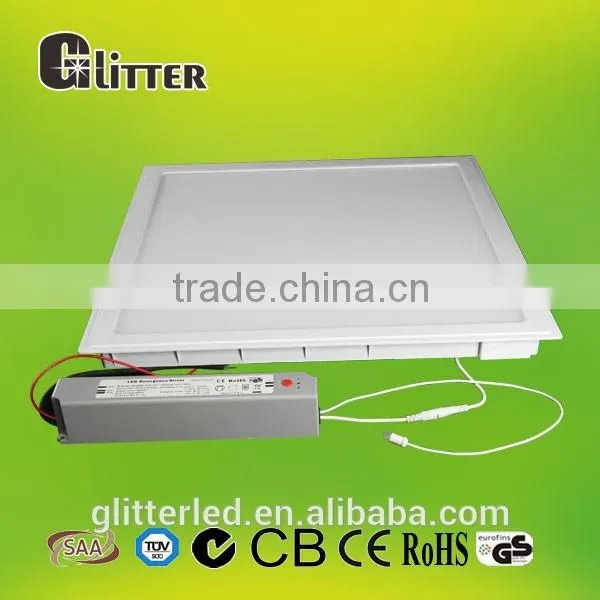

3. More reliable: Own designed LED Driver (SAA,GS,CB,CE approved), safe and better Compatibility
4. More Professional : IES Files, LM79, LM80 available
5. More reliable: TUV, CE, RoHS, CB, GS ,SAA,C-Tick approved
5 YEARS WARRANTY
1). Technical parameter
Item No. |
PL-0606- 4504 |
|
Dimension |
595x595x43mm |
|
Voltage |
AC85V-265V 50/60HZ |
|
Power |
45W |
|
LED Type |
SMD2835 |
|
LED Quantity |
484pcs |
|
Luminous Flux |
Warm white |
5200lm |
| Neutral white | 5300lm |
|
| Pure white | 5400lm |
|
|

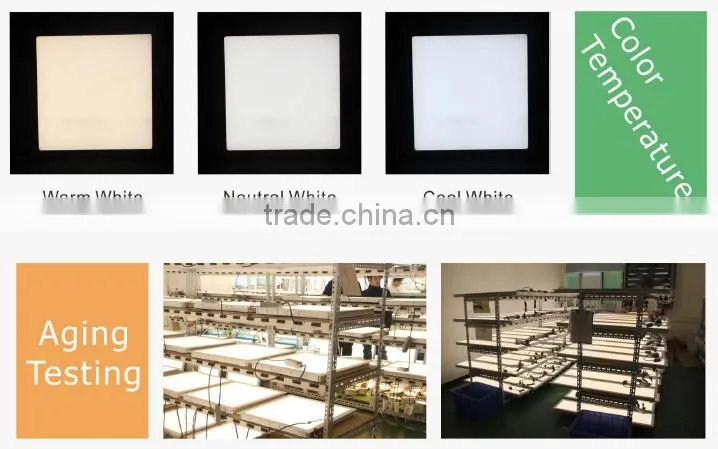

Color Temperature (CCT) |
Warm white |
2800-3500K |
| Neutral white | 3800-4500K |
|
| Pure white | 5500- 6500K |
|
Beam Angle |
120° |
|
Color Rendering Index (CRI) |
>80 |
|
Power Supply Efficiency |
>90% |
|
Luminous Efficiency |
Up to 120lm/W |
|
Power Factor (PF) |
>0.95 |
|
Total Harmonic Distortion (THD) |
≤15% |
|
IP Rank |
IP 50 |
|
Net Weight |
2.50 Kgs |
|
Certificate |
CE , ERP , SAA , TUV, CB , GS, UL,ROHS |
|

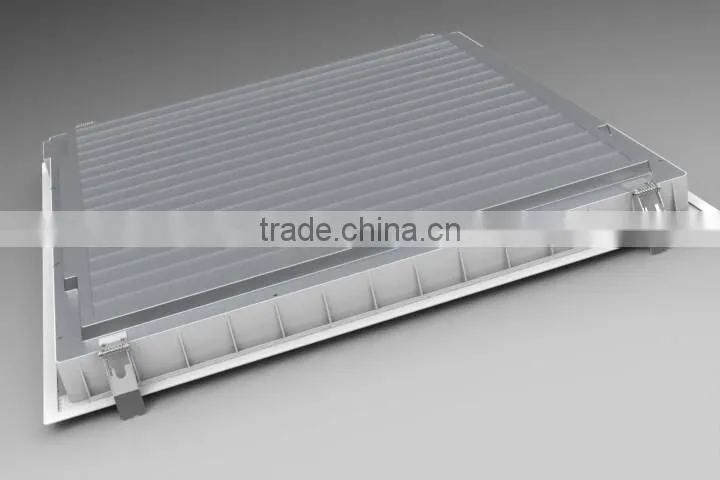

Dimension (Unit: mm)

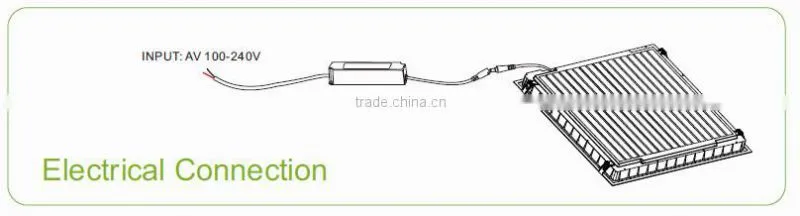

Installation :
Warning: Before installation, please make sure the power is turned off .
A: A. The standard False Ceiling Installation
B: The embedded installation :
C: The suspended installation
Application :
· Offices
· Kitchens
· Bathrooms
· Library
· Department Store & Boutiques
· Restaurant & Cafeteria
· Conference Rooms
· Hospital & Laboratory
Equipment :
Certificate:
Our Services
A, Contact us for good price.
B, If you need, We can send you samples to check.
C, Confirm other details such as delivery time, payment, shipment.
D, You pay the deposit.
E, After produce finished, we send the sample for your check if you need, then you finish payment.
F, We arrange shippment. And send documents for your custom clearance.
G, When you got the goods, tell us the comments then we can do better next time.
H, Will share latest price or other news of your goods anytime if you need.
