Home > Lights & Lighting > LED Interior Lighting > LED Panel Light > Meanwell Driver 60*120cm 90W LED Panel Light 595*1195mm, 600*1200 SAA,TUV

Meanwell Driver 60120cm 90W LED Panel Light 5951195mm, 600*1200 SAA,TUV

Name: Meanwell Driver 60*120cm 90W LED Panel Light 595*1195mm, 600*1200 SAA,TUV
Brand: Glitter
SKU: 129698827
Availability: InStock

Meanwell Driver 60*120cm 90W LED Panel Light 595*1195mm, 600*1200 SAA,TUV thumbnail-1

Meanwell Driver 60*120cm 90W LED Panel Light 595*1195mm, 600*1200 SAA,TUV photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

LED Light Source:

SMD 3014

Warranty(Years):

Input Voltage(V):

AC85-265

Contact Supplier Request Quote Chat Now

Shenzhen Glitter Optoelectronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source SMD 3014

Warranty(Years) 3

Input Voltage(V) AC85-265

Lamp Power(W) 90

Lamp Luminous Flux(lm) 7600-9000 lm

Lamp Luminous Efficiency(lm/w) 95

Color Temperature(CCT) Other, 2700-7000K

Working Temperature(℃) -20, 40

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating Other, IP40

Certification CCC, C-tick, EMC, FCC, GS, GOST, LVD, PSE, SAA

Place of Origin Guangdong, China

Brand Name Glitter

Model Number PL-0612-9003

Specifications

60*120cm Dimmable LED Panel light
Back-lit,95lm/W
Dimmable and Emergency (3 hours)
Own designed Driver (GS,CB,SAA)

PL-0612-9003 60*120cm Dimmable LED Panel light

1- Features and Advantages

• Back-lit, perfect heat dissipation, Better protection for the chips and longer lifespan

• 100lm/W by SMD 3014, PF>0.95

• Own designed LED Driver (GS,CB,SAA approved), better compatibility and stability

• Emergency (Last 3 hours after power off)/ Dimmable series (DALI/ 0-10V/ PWM Dimmable)/ Light +Motion sensor

• 3 yrs warranty

2- Technical Specifications

No.	Parameter		Unit	Description
1	Power supply		V	AC85-265
2	Current frequency		Hz	50/60
3	Working voltage		V	DC24
4	Power consumption		W	90
5	Color temperature	Warm white	K	2800-3500
		Neutral white		3800-4500
		Cool white		5500-6500
6	Lumen	Warm white	lm	>7600
		Neutral white		>8000
		Cool white		>8400
7	Material			PMMA, Steel coating
8	Operating temperature		°C	-10~+40
9	Humidity			10-80%
10	certificate			CE( TUV, ), RoHS, SAA, C-Tick
11	Luminaires Class			Ⅲ

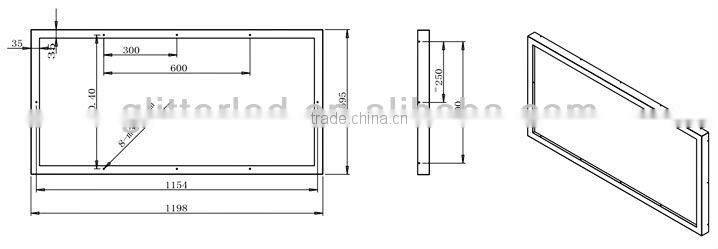

3- Dimension

4- Installing

5- Application

6- Production view

SMT Machine and Welding soldering machine

Test machine: Temp test, Integrating Sphere, Photometer:

7- Package

Installation Method	No.	Description	Quantity	Complement
1. Recessed	1	600x1200 LED panel light	2pcs	AC85-265V
	2	Constant LED Driver	2pcs
	3	Usage Manual	2pcs
2. Suspended	1	600x1200 LED panel light	2pcs
	2	Constant LED Driver	2pcs
	3	Usage Manual	2pcs
	4	Steel Wires	8pcs	Optional
