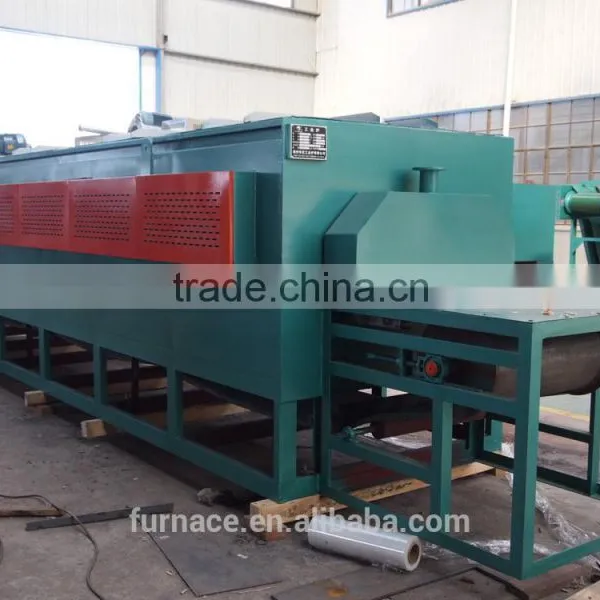

Mesh Belt Conveyor Quenching and Tempering Oven

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port SHANGHAI

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Resistance Furnace
Usage	Heat Treatment Furnace	Place of Origin	Zhejiang, China
Brand Name	HUAHONG	Model Number	RCW
Voltage	380V	Power(W)	20-150Kw
Dimension(LWH)	customized	Weight	4-27ton
Certification	ISO9001:2008	Warranty	1year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Features:

1.The lcontinous mesh belt conveyor furnace main used for mass process of small machine parts,such as:standard parts,bearings, chains, screws, needles,bolt and nut etc.

2.Application:

quenching + carburizing/ nitriding /corbonitriding in protect atmosphere+Tempering.

3.The lining use the full-fiber refractory .This kind of refractory material is lighter and more effective.

4.The strong fan could make strong wind to make the temperature uniformity in the lining.

5.The automatic control system make the producion easier and more economical.

Equipment matching form and Product Scope

RCW mesh belt quenching furnace
RCWquenching oil pool
RCWa complete set of stainless steel mesh belt hoisting mechanism
RCW mesh belt tempering furnace
RCWwashing tank
Thermocouple
electric control system
electrical control cabinet
Carbon potential control meter(as your requirement)
paperless recorder (as your requirement)
Manual and electrical schematic

Quenching furnace:

Furnace Model	RCW-20	RCW-45	RCW-60	RCW-75	RCW-90	RCW-120	RCW-150
Temperature(°c)	850	850	850	850	850	850	850
Dimension(mm)	1300X150X50	2400X220X50	2400X300X50	3600X300X50	4700X300X80	4700X400X80	5000X500X80
Power(Kw)	20	45	60	75	90	120	150
Production(Kg/h)	30	60	100	150	200	250	300

Tempering furnace:

Furnace Model	RCW-25	RCW-35	RCW-45	RCW-60	RCW-90
Temperature(°c)	600	600	600	600	600
Dimension(mm)	3000X400X120	4000X400X120	3900X600X120	5000X600X120	4700X800X120
Power(Kw)	25	35	45	60	90
Production(Kg/h)	45	60	150	200	300
