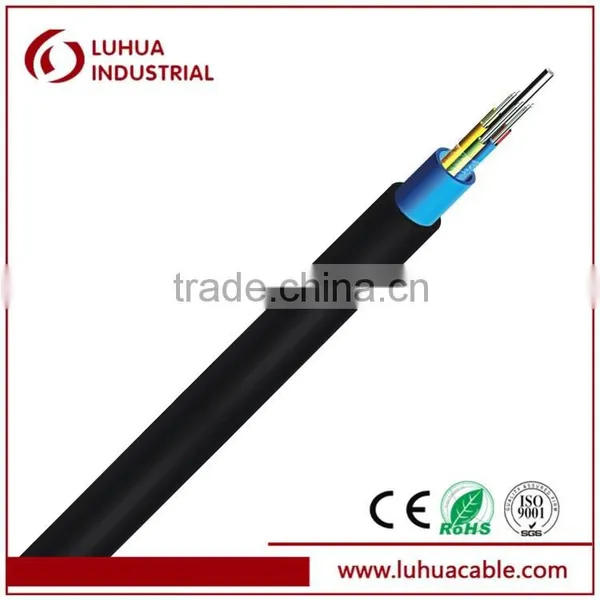

GYTA STRANDED LOOSE TUBE NON-ARMORED CABLE
Description

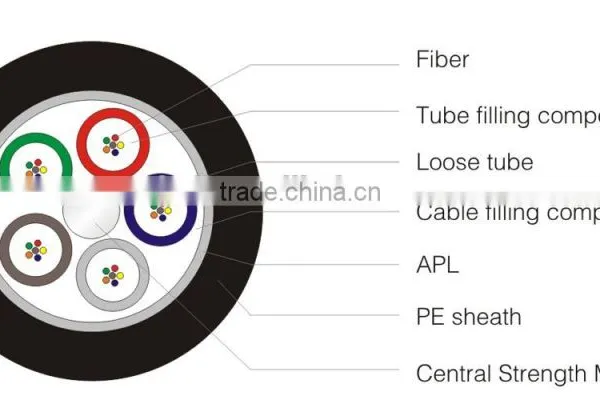

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastics. The tubes are filled with a water-resistant filling compound. A steel wire , sometimes sheathed with polyethylene(PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes(and fillers)are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate(APL) is a applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.
Characteristics
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant.
Special tube filling compound ensure a critical protection of fiber
Specially designed compact structure is good at preventing loose tubes from shrinking
PE sheath protects cable from ultraviolet radiation
The following measures are taken to ensure cable watertight.
--Steel wire used as the central strength member --100% cable core filling
--Loose tube filling compound --APL moisture barrier
Optical characteristics
G.652 |
G.655 |
50/125μm |
62.5/125μm |
||
|
Attenuation (+20℃)
|
@850nm |
≤3.0dB/km |
|
||
@1300nm |
≤1.0dB/km |
|
|||
@1310nm |
≤0.36dB/km |
≤0.40dB/km |
|
||
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
||
|
Bandwidth(Class A)
|
@850nm |
≥500MHz•km |
≥200MHz·km |
||
@1300nm |
≥1000MHz•km |
≥600MHz·km |
|||
Numerical Aperture |
0.200±0.015NA |
0.275±0.015NA |
0.275±0.015NA |
||
Cable Cut-off Wavelength λcc |
≤1260nm |
≤1480nm |
|
||
Technical parameters
Cable Type |
GYTA-2~6 |
GYTA-8~12 |
GYTA-14~18 |
GYTA-20~24 |
GYTA-26~30 |
Fiber count |
2~6 |
8~12 |
14~18 |
20~24 |
26~30 |
Tubes |
1 |
2 |
3 |
4 |
5 |
Fillers |
4 |
3 |
2 |
1 |
0 |
Cable Diameter(mm) |
9.7 |
9.7 |
9.7 |
9.7 |
9.7 |
Cable Weight(kg/km) |
90 |
90 |
90 |
90 |
90 |
Tensile Strenghth Long /Short Term(N) |
600/1500 |
600/1500 |
600/1500 |
600/1500 |
600/1500 |
Crush Resistance Long /Short Term(N/100mm) |
300/1000 |
300/1000 |
300/1000 |
300/1000 |
300/1000 |
|
Bending Radius Static/Dynamic (mm) |
10D/20D |
10D/20D |
10D/20D |
10D/20D |
10D/20D |
Location
Hangzhou LinAn LuHua Industrial Co.,Ltd is situated in Linglong Industrial Zone, Lin'an, Zhejiang
province , China.
Strength
Our company is a capable enterprise with more than15 years experiences both in the production
and the management system, We have the most advanced testing equipment, and got some
authority certificate of this field,such as the ISO-9001, CE, ROSHS, all of these contribute
to insure that we can provide the products with high quality.
Major Product
Our cable products including:
Fiber optical cable (indoor fiber cable for FTTH Cable&outdoor fiber cable for GY series)
Coaxial cable (RG series,JIS series,D-FB series RF Cables)
Lan cable ( UTP/FTP/SFTP CAT5e/CAT6/CAT6A,etc)
