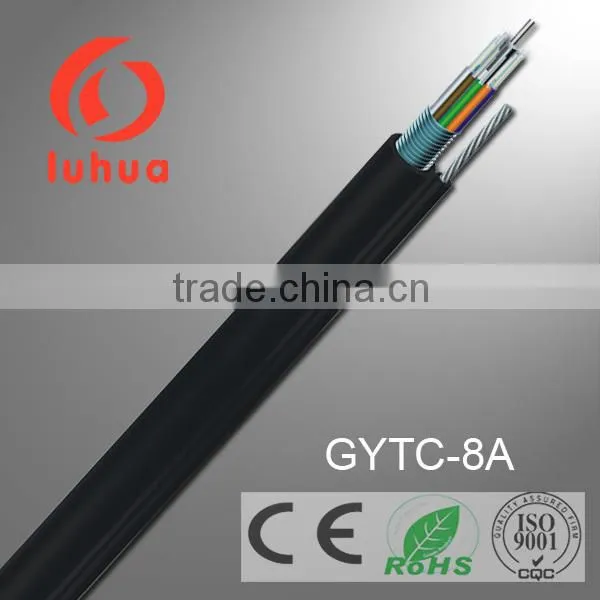

GYTC8A Self-support Figure 8 Cable
DESCRIPTION

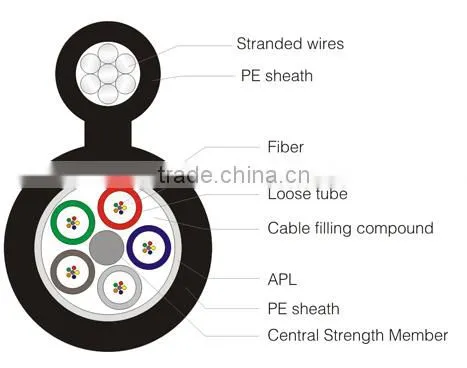

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member, The tubes (and filler) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate(APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.
Characteristics
High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
Good mechanical and temperature performance.
High strength loose tube that is hydrolysis resistant.
Special tube filling compound ensure a critical protection of fiber.
The following measures are taken to ensure cable watertight.
--Steel wire used as the central strength member --100% cable core filling
--Loose tube filling compound --APL moisture barrier
Optical characteristics
|
|
G.652 |
G.655 |
50/125μm |
|
Attenuation (+20℃) |
@850nm |
|
|
≤3.0dB/km |
≤3.0dB/km |
@1300nm |
|
|
≤1.0dB/km |
≤1.0dB/km |
|
@1310nm |
≤0.36dB/km |
≤0.40dB/km |
|
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500MHz•km |
≥200MHz•km |
@1300nm |
|
|
≥1000MHz•km |
≥600MHz•km |
|
Numerical Aperture |
|
|
|
0.200±0.015NA |
0.275±0.015NA |
Cable Cut-off Wavelength λcc |
|
≤1260nm |
≤1480nm |
|
|
Technical paremeters
Cable Type |
GYTC8A- 2~6 |
GYTC8A-8~12 |
GYTC8A-14~18 |
GYTC8A-20~24 |
GYTC8A-26~30 |
Fiber count |
2~6 |
8~12 |
14~18 |
20~24 |
26~30 |
Tubes |
1 |
2 |
3 |
4 |
5 |
Fillers |
4 |
3 |
2 |
1 |
0 |
Cable Diameter(mm) |
9.5*18.3 |
9.5*18.3 |
9.5*18.3 |
9.5*18.3 |
9.5*18.3 |
Cable Weight(kg/km) |
218 |
218 |
218 |
218 |
218 |
Tensile Strenghth Long /Short Term(N) |
600/1500 |
600/1500 |
600/1500 |
600/1500 |
600/1500 |
Crush Resistance Long /Short Term(N/100mm) |
300/1000 |
300/1000 |
300/1000 |
300/1000 |
300/1000 |
Bending Radius Static/Dynamic(mm) |
10D/20D |
10D/20D |
10D/20D |
10D/20D |
10D/20D |
Remark: xxx means type of optical fiber
Packing and Shipping
1. from 1km to 4km or other required,1 drum with cartoon box, 18drums/package
2. pakcing size:depend on cable size and packing length
3. Item shipped in 3-15 working days after payment is received depends on the quantity of the order.
Our Service
1.We are professional manufacture of optical fiber cables in China.
2.OEM is accepted.
3.The cable size and material are customized,and your own logo or design are welcome.
4.We'll reply you in 12 hours after you send enquiry to us
