GYTC8A fiber optical cable
- SHANGHAI or NINGBO
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | LUHUA or OEM | |
| Model Number | GYTC8A Fiber Optic Cable | Type | Cat 1 | |
Product Description
GYTC8A FIGURE 8 CABLE
DESCRIPTION

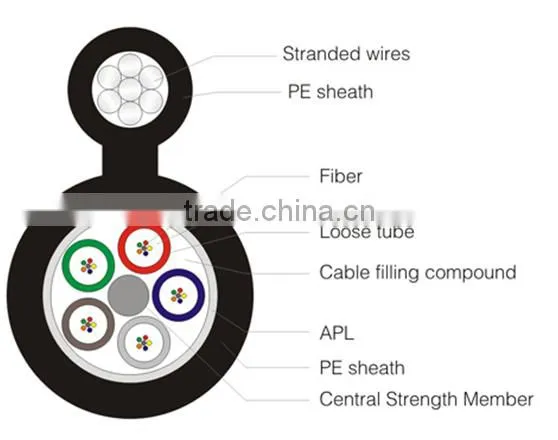

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member, The tubes (and filler) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate(APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.
Characteristics
High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
Good mechanical and temperature performance.
High strength loose tube that is hydrolysis resistant.
Special tube filling compound ensure a critical protection of fiber.
The following measures are taken to ensure cable watertight.
--Steel wire used as the central strength member --100% cable core filling
--Loose tube filling compound --APL moisture barrier
Optical characteristics
|
| G.652 | G.655 | 50/125μm |
|
Attenuation (+20℃) | @850nm |
|
| ≤3.0dB/km | ≤3.0dB/km |
@1300nm |
|
| ≤1.0dB/km | ≤1.0dB/km | |
@1310nm | ≤0.36dB/km | ≤0.40dB/km |
|
| |
@1550nm | ≤0.22dB/km | ≤0.23dB/km |
|
| |
Bandwidth (Class A) | @850nm |
|
| ≥500MHz•km | ≥200MHz•km |
@1300nm |
|
| ≥1000MHz•km | ≥600MHz•km | |
Numerical Aperture |
|
|
| 0.200±0.015NA | 0.275±0.015NA |
Cable Cut-off Wavelength λcc |
| ≤1260nm | ≤1480nm |
|
|
Technical paremeters
Cable Type | GYTC8A- 2~6 | GYTC8A-8~12 | GYTC8A-14~18 | GYTC8A-20~24 | GYTC8A-26~30 |
Fiber count | 2~6 | 8~12 | 14~18 | 20~24 | 26~30 |
Tubes | 1 | 2 | 3 | 4 | 5 |
Fillers | 4 | 3 | 2 | 1 | 0 |
Cable Diameter(mm) | 9.5*18.3 | 9.5*18.3 | 9.5*18.3 | 9.5*18.3 | 9.5*18.3 |
Cable Weight(kg/km) | 218 | 218 | 218 | 218 | 218 |
Tensile Strenghth Long /Short Term(N) | 600/1500 | 600/1500 | 600/1500 | 600/1500 | 600/1500 |
Crush Resistance Long /Short Term(N/100mm) | 300/1000 | 300/1000 | 300/1000 | 300/1000 | 300/1000 |
Bending Radius Static/Dynamic(mm) | 10D/20D | 10D/20D | 10D/20D | 10D/20D | 10D/20D |
Remark: xxx means type of optical fiber
Location
Hangzhou LinAn LuHua Industrial Co.,Ltd is situated in Linglong Industrial Zone, Lin'an, Zhejiang
province , China.
Strength
Our company is a capable enterprise with more than15 years experiences both in the production
and the management system, We have the most advanced testing equipment, and got some
authority certificate of this field,such as the ISO-9001, CE, ROSHS, all of these contribute
to insure that we can provide the products with high quality.
Major Product
Our cable products including:
Fiber optical cable (indoor fiber cable for FTTH Cable&outdoor fiber cable for GY series)
Coaxial cable (RG series,JIS series,D-FB series RF Cables)
Lan cable ( UTP/FTP/SFTP CAT5e/CAT6/CAT6A,etc)
