phenolic foam board making machine

Specifications

phenolic foam board making machine
1.Thickness: 20-100mm;
2.Laminating length:24m, 30m,36m;
3.Productivity: 130-180m3/8h

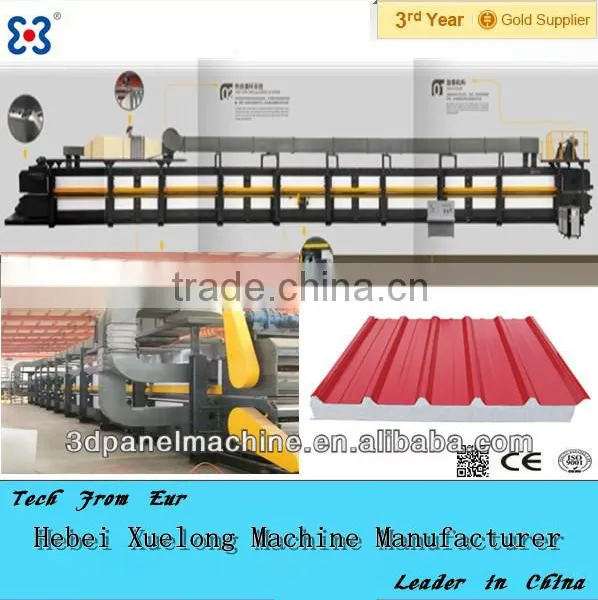

Phenolic foam board making machine/ Phenolic foam board production line





Main technical parameters

1) thickness of the phenolic foam board: 20-100mm

2) standard size of the phenolic foam board: 4*1.2m(L*W)

3)density of phenolic foam:50-65kg/m3

4)stirring speed :2800r/min

5)max temperature of hot air circulating:70°C

6)productivity of whole phenolic foam board production line: 130-180m3/8hours

7) thickness of aluninum foil :0.06-0.08mm

8) non-woven fabric: 30-60g/m2

9) max opening height of laminating system:300mm



PF production line includes phenolic resin & foaming agent pre-mixing device 1 set, un-coiler 2 sets, pre-heating device 1 set, movable pouring device 1 set, side paper attaching device 1 set, laminating conveyor 1 set, hot air circulating device 1 set, timmer 1 set, auto-tracking cutting device 1 set, roller frame and so on.





Phenolic resin & foaming agent pre-mixing device





 un-coiler





pre-heating device and pouring device







mixture storage tank (low pressure pre-expander)







side paper attaching device





laminating conveyor









hot air circulating system







trimmer







auto-tracking cutting machine







roller frame











For your option : phenolic resin reactor

Xuelong production workshop
