Specifications
phenolic foam board production line1.Thickness: 20-100mm;
2.Laminating length:24m, 30m,36m;
3.Productivity: 130-180cbm/8
Phenolic foam board making machine/ Phenolic foam board production line
Main technical parameters
1) thickness of the phenolic foam board: 20-100mm
2) standard size of the phenolic foam board: 4*1.2m(L*W)
3)density of phenolic foam:50-65kg/m3
4)stirring speed :2800r/min
5)max temperature of hot air circulating:70°C
6)productivity of whole phenolic foam board production line: 130-180m3/8hours
7) thickness of aluninum foil :0.06-0.08mm
8) non-woven fabric: 30-60g/m2
9) max opening height of laminating system:300mm
phenolic foam (PF) production line includes phenolic resin & foaming agent pre-mixing device 1 set, un-coiler 2 sets, pre-heating device 1 set, movable pouring device 1 set, side paper attaching device 1 set, laminating conveyor 1 set, hot air circulating device 1 set, timmer 1 set, auto-tracking cutting device 1 set, roller frame and so on.

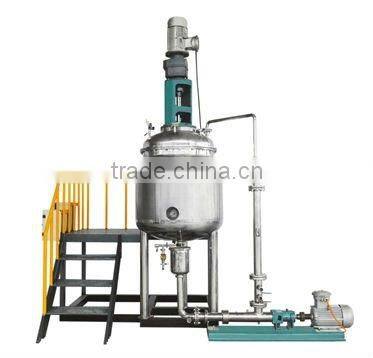

Phenolic resin & foaming agent pre-mixing device
un-coiler
pre-heating device and pouring device
mixture storage tank (low pressure pre-expander)
side paper attaching device
laminating conveyor
hot air circulating system
trimmer
auto-tracking cutting machine

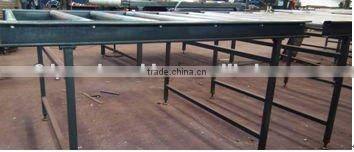

roller frame

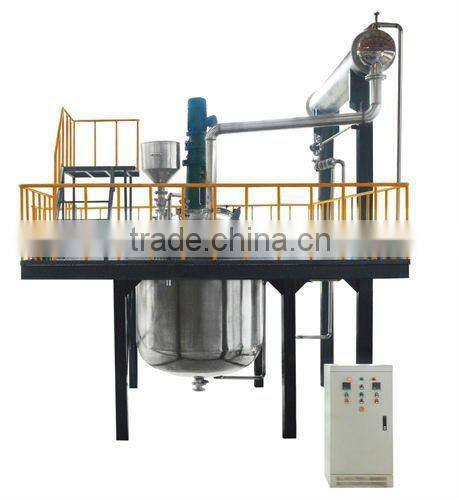

For your option : phenolic resin reactor
Xuelong production workshop
