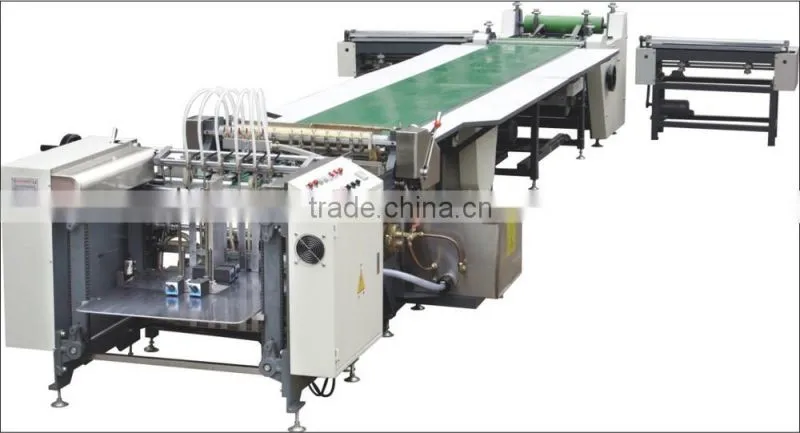

Automatic Hot-melt Glue Powder Coating Machine (Rubber Wheel)
Automatic Hot-melt Glue Powder Coating Machine is a transferring type of paper upper-side gluing equipment, combined with many-year experience on packing machinery, designed along with the needs of the clients.
Automatic Hot-melt Glue Powder Coating Machine is an ideal equipment for medium size printing packing plants to make flow line production.
Automatic Hot-melt Glue Powder Coating Machine adopts heat fused adhesive powder to avoid traditional white emulsion from shrinking and mildewing.
Adjustable gluing drum to make the glue spread out on the surface of the paper.
The conveyor has a draft fan and keep the paper transfer from deviation.
Temperature control system in glue tank can guarantee the viscosity of the glue.
Time controller for pre-heating and to enhance production profits.
Circular cleaning system makes the machine cleaned within 2 minutes. So it is very convenient.
Speed adjustable according to skillful degree of the production worker.
It is characterized by rational structure, stable performance, convenient operation, easy replacement, and low labor intensity.
Ps:
1, Standard 5m working table; 7m, 9m working table can be customized per to the customer's need.
2, Remodel for white glue.
There are 3 sizes for Automatic Hot-melt Glue Powder Coating Machine, as the following machine parameters:
Model |
HM-650B |
Working Width |
80-600mm |
Sheet Thickness |
80-200gsm |
Cardboard Thickness |
1-4mm |
Production Speed |
7-40pcs/min |
Voltage |
380V |
Power |
6.6KW |
Overall Dimension |
6350x1650x1100mm |
Net Weight |
790kg |

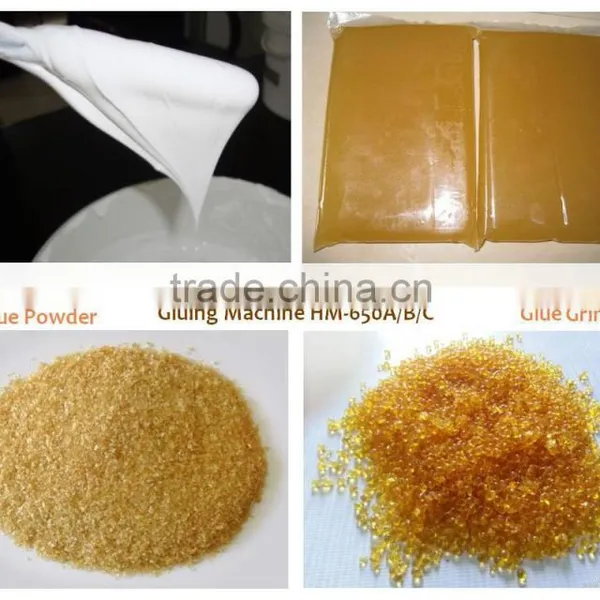

Automatic Hot-melt Glue Powder Coating Machine's glues: hot glue powder and hot glue jelly.
Automatic Hot-melt Glue Powder Coating Machine 's application:
Automatic Hot-melt Glue Powder Coating Machine family:
Automatic Hot-melt Glue Powder Coating Machine series:
