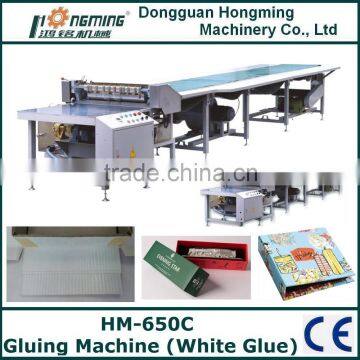

HM-650C Universal Hot-melt Glue Coating Machine(feed manually)
HM-650C Universal Hot-melt Glue Coating Machine(feed manually)'s introduction:
Universal Gluing Machine is suitable for feeding and gluing the paper which is for making book cover, rigid box, set up box, etc.
It has the function of automatic temperature control and 24-hours timer.
The draft fan for the assembly lines prevents cover paper from curling and bubbling.
Hot melt adhesives (animal adhesives) are used for health and environmental protection ,and they also save cost because of the recycle system and the adjustable speeds.
Ps:
1, Standard 4.2m working table; 6.2m, 8.2m working table can be customized per to the customer's need.
2, Remodel for white glue.
HM-650C Universal Hot-melt Glue Coating Machine(feed manually)'s parameters:
Model |
HM-650C |
HM-850C |
Working Width |
80-600mm |
80-800mm |
Sheet Thickness |
80-200gsm |
80-200gsm |
Production Speed |
7-40pcs/min |
7-40pcs/min |
Voltage |
AC380V |
AC380V |
Power |
6.2kW |
6.2kW |
Dimension |
6000x1650x1100mm |
6000x1850x1100mm |
Net Weight |
766kg |
866kg |

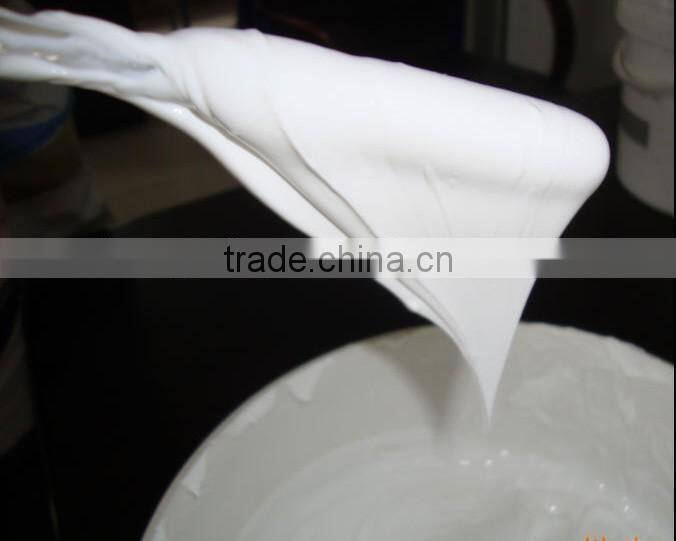

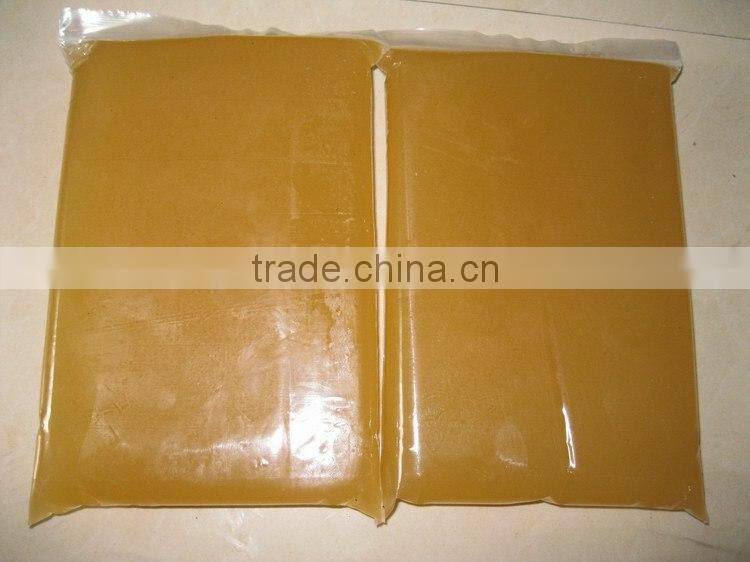

HM-650C Universal Hot-melt Glue Coating Machine(feed manually)'s glue needed:

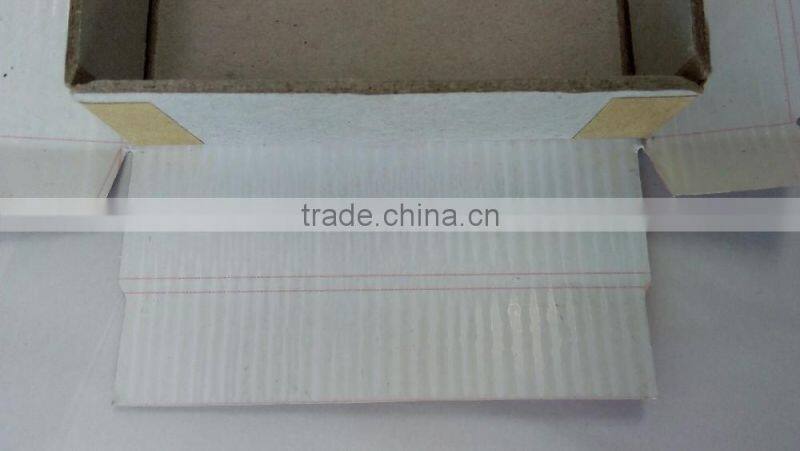

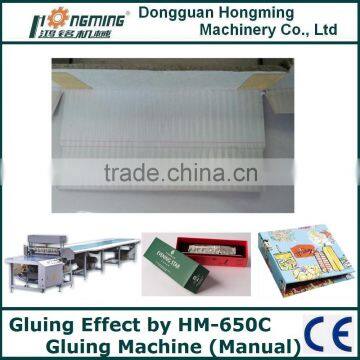

HM-650C Universal Hot-melt Glue Coating Machine(feed manually)'s output effect:

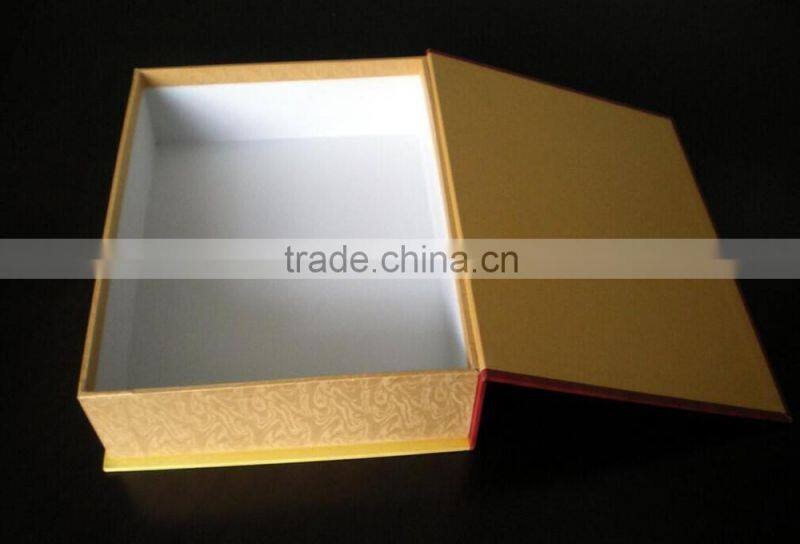

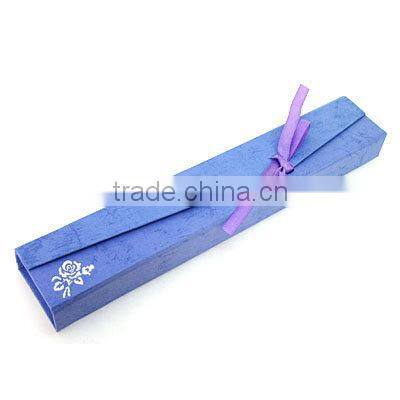

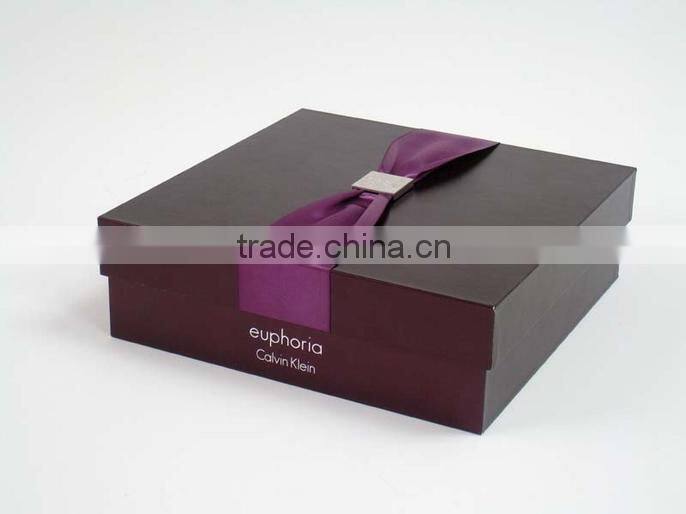

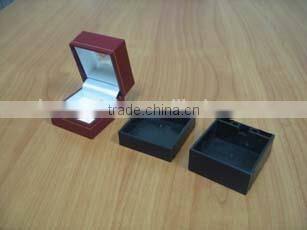

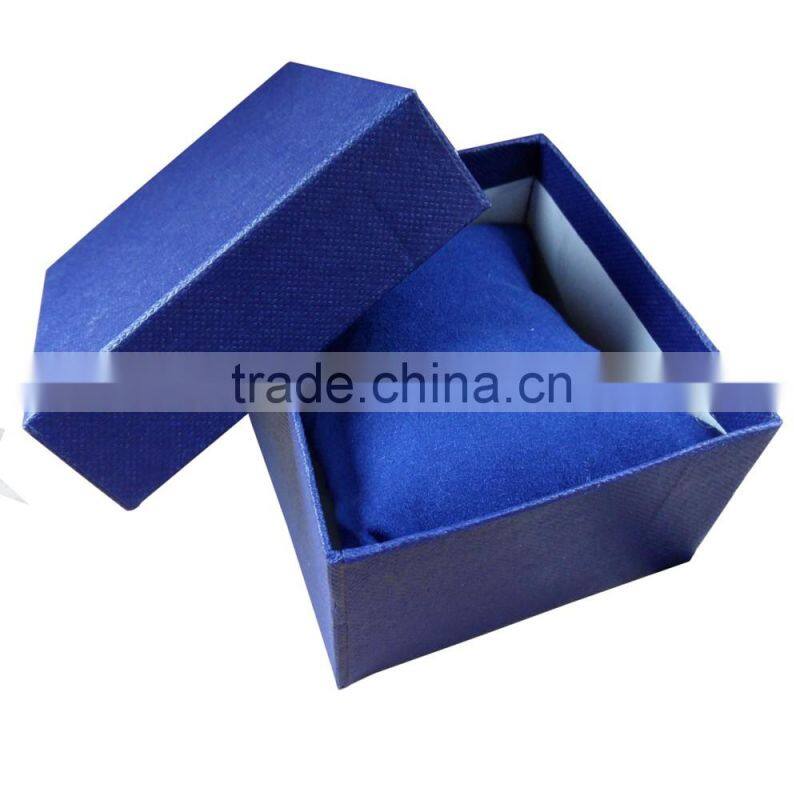

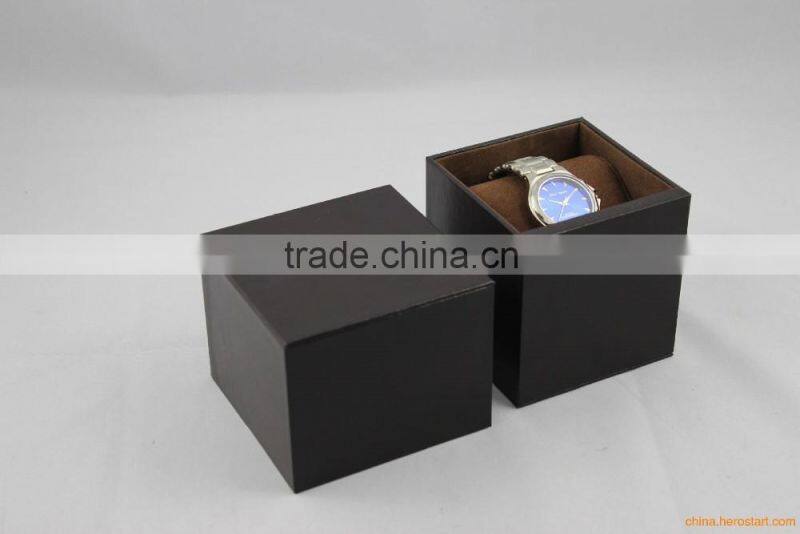

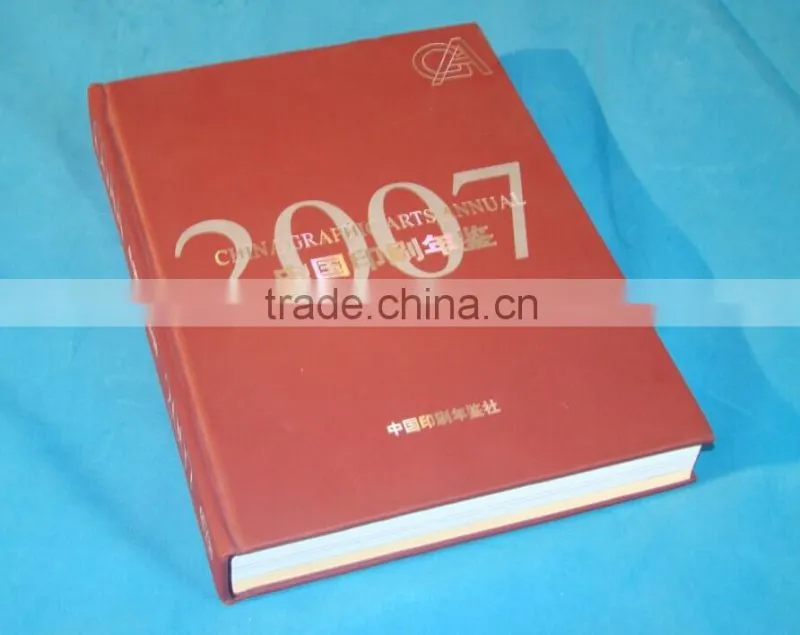

HM-650C Universal Hot-melt Glue Coating Machine(feed manually)'s final output:

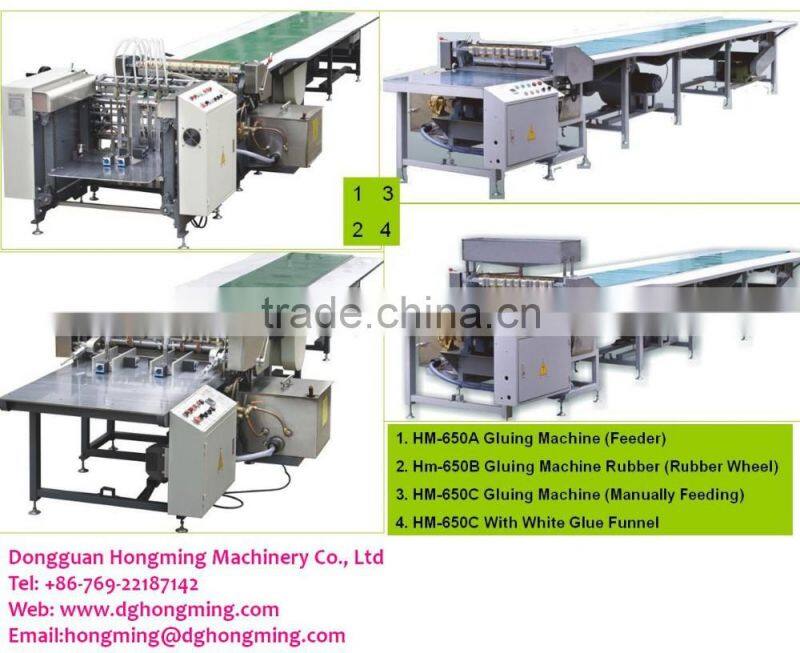

HM-650C Universal Hot-melt Glue Coating Machine(feed manually)'s family:
Universal Gluing Machine is suitable for feeding and gluing the paper which is for making book cover, rigid box, set up box, etc.
It has the function of automatic temperature control and 24-hours timer.
The suction devices for the assembly lines prevent cover paper from curling and bubbling.
Hot melt adhesives (animal adhesives) are used for health and environmental protection ,and they also save cost because of the recycle system and the adjustable speeds .
Model |
650C |
Case Size |
W80-600mm |
Cardboard Thickness |
1-4mm |
Sheet Thickness |
80-250g |
Production Speed |
7-40pcs/min |
Power Requirement |
380V |
Power |
6.2kw |
Net Weight |
766kg |
Machine Overall Dimension |
6000*1650*1100mm |
