Home > Products > Gluing machine > HM-650A Automatic Hot-melt Glue Coating Machine

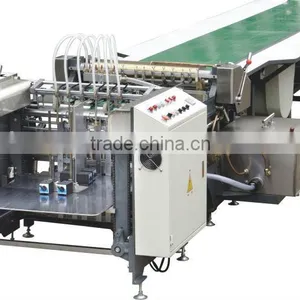

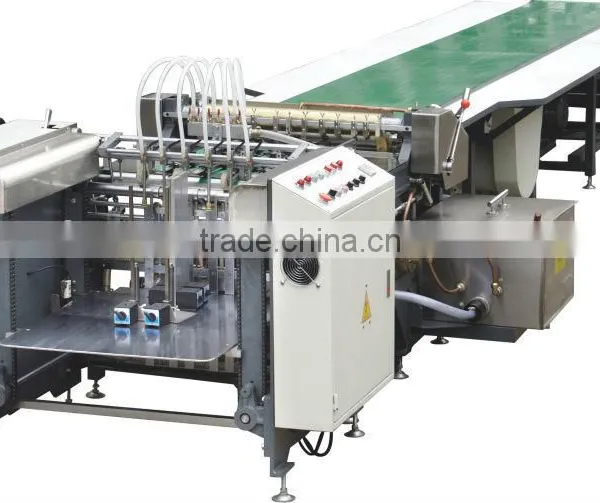

HM-650A Automatic Hot-melt Glue Coating Machine
- 500 Set / Sets per Month
- SHENZHEN
- T/T PayPal
-
Single-ended carbon fiber heat lamps 500mm 800w infrared heat lamps
-
1300w 670mm far infrared heat lamp frosted carbon fiber heat lamps
-
220v 1300w 670mm infrared carbon fiber heating lamp frosted carbon fiber heat lamps
-
400mm 600w infrared quartz lamp replacement carbon fibre heating lamp
-
400mm 600w infrared quartz heating element carbon fiber quartz tubes
-
230v 1200w infrared paint lamp infrared carbon fiber heating lamp for DTF machines
Product Details
Condition: | New | Application: | Other, Machinery & Hardware | Packaging Type: | Case |
Packaging Material: | Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380V | Power: | 7.45KW | Place of Origin: | Guangdong, China |
Brand Name: | HONGMING | Model Number: | HM-650A | Dimension(L*W*H): | 6350x1650x1100mm |
Weight: | 1100kg | Certification: | CE | After-sales Service Provided: | No overseas service provided |
Product Description
Specifications
Automatically feed and glue paper; automatic temperature control and 24-hours timer; could process paper, carton, greyboard,..HM-650A Automatic Hot-melt Glue Coating Machine
It is suitable for feeding and gluing the paper which is for making book cover, rigid box, set up box, etc.
It has the function of automatic feeding paper and gluing, automatic temperature control and 24-hours timer.
The suction devices for the assembly lines prevent cover paper from curling and bubbling.
Feeder absorption and feed are applied, which contribute to the characteristic of steady and quick paper conveyance.

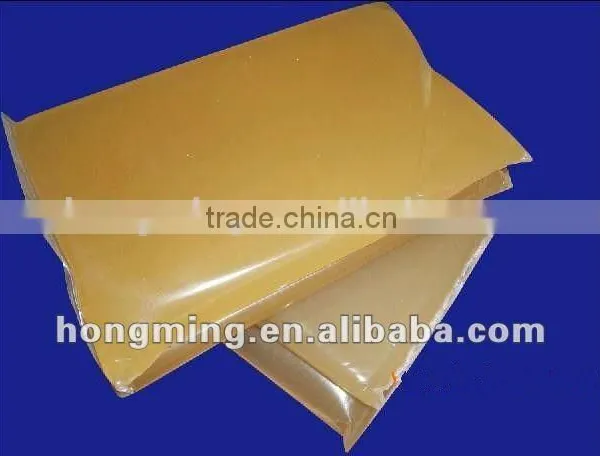

Hot melt adhesives (animal adhesives) are used for health and environmental protection, and they also save cost because of the recycle system and the adjustable speeds .
Ps:
1, Standard 5m working table; 7m, 9m working table can be customized per to the customer's need.
2, Remodel for white glue.
There are three sizes for this Gluing Machine, as the following machine parameters:
Model | HM-650A | HM-750A | HM-850A |
Case Size | W80-600mm | W80-600mm | W80-800mm |
Sheet Thickness | 80-200g | 80-200g | 80-200g |
Production Speed | 7-40pcs/min | 7-40pcs/min | 7-40pcs/min |
Voltage | 380V | 380V | 380V |
Power | 7.45kw | 7.45kw | 7.45kw |
Diemension | 6350x1650x1100mm | 6350x1650x1200mm | 6350x1650x1300mm |
Net Weight | 1100kg | 1188kg | 1275kg |
starching machine, gluing mahcine, laminating machine, hot glue coating machine, cold glue sticking machine, white glue attaching machine
