SY80E Hydraulic Slotting Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

EMM

Model Number:

SY80E

Extreme Machinery Manufacture Co., Ltd. (Jingjiang)

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name EMM

Model Number SY80E

Specifications

Features

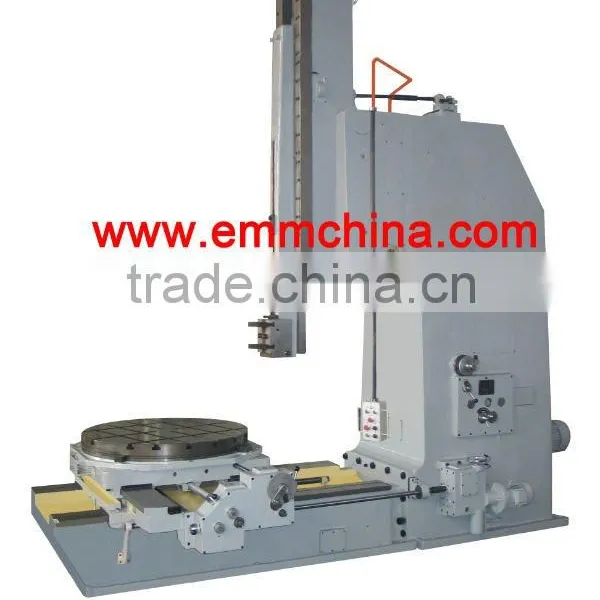

SY80E Hydraulic Slotting Machine
Being designed for cutting various planes, formed surface and key way of workpiece,

Technical Data

Desription	SY80E
Max.stroke length cf ran	800	mm
Mix.stroke length cf ran	125	mm
Max.slotting length	800	mm
Distance cf vertical adjest of ram	732	mm
Extreme high speed for work stroke cf ram	22	m/min
Extreme low speed for work stroke cf ram	5	m/min
Speed ratio cf work stroke and return stroke cf ram	1:1.45
Speed adjust for work stroke	(Stepless)
Max.slotting force	27	KN
Distance from tool holding surface to column front	1246	mm
Distance from worktable surface to underside of slide rack	1000	mm
Max.longitudinal travel of worktable	1200	mm
Max.transeverse travel of worktable	1070	mm
Diameter of worktable	φ1000	mm
Inclination of ram	0-10	.
Range of vertical feed (stepless)	0~1.5	mm
Range of horizontal feed (stepless)	0~3	mm
Range of rotary feed (stepless)	0°~1°15′	.
Max loading weight on worktable	4000	kg
T-slot width in the center of worktable	22H8
Power and rotaing sreed of main motor	11kw,960r/min
Power and rotaing sreed of motor for rapid mover of table	1.5kw,960r/min
Type of motor for cooling pump	DB-12B 40W 380W
Net weight(approx)	14000	kg
Dimensions cf machine tool (Lenght×Wight×High)	4125×2742×4229	mm

Working Accuracy

Flatness of machined surface on tested workpiece	0.015	mm
Verticality of machined surface on tested workpiece	0.025	mm
Surface roughness on tested workpiece	6.3	mm
Verticality of machined side surface on tested workpiece against base	0.02	mm
