Help Center2A Creep Type Thermal Protector
US$ 0.2 - 0.3
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
HW
Model Number:
HRM
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
V7AM-W Snap Thermal ProtectorUS$ 0.2 - 0.3MOQ: 1000 Pieces -
HVC2 Creep Thermal ProtectorUS$ 0.2 - 0.3MOQ: 1000 Pieces
-
HVA1 Creep Action Thermal ProtectorUS$ 0.2 - 0.3MOQ: 1000 Pieces
-
HA9 Normally Open/Close UL CQC Certified Snap Action Thermal ProtectorNegotiableMOQ: 1000 Pieces
-
HA9B PBT Plastic Case UL CQC Certified Normally Open/Close Snap Action Thermal ProtectorNegotiableMOQ: 1000 Pieces
Place of Origin
Taiwan, China
Brand Name
HW
Model Number
HRM
Thermal Protector - JRM Series
Structure characters

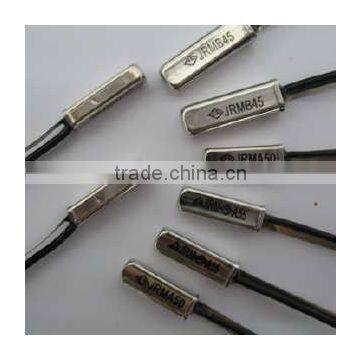

HRM series thermal protectors are sensitive to temperature changing and safe. The high quality bimetal is sensitive element in product. They are enclosed by metal case and will reset themselves.
Applications
HRM series thermal protectors are not only widely used for production in DC electrical tools, miners lamp, PC, interphone and rechargeable battery in vidicon, but also can be used for temperature control in medical tools, house-holding machine and some low-voltage electric machine.
Parameters
| Action temp. | -20~200°C |
| Tolerance | ±5 |
| Reset temp. | a range of 2 below action temperature |
| Used condition | -20~200°C |
| Rated voltage | DC24V, AC120V |
| Rated current | 2A,3A,5A |
Certificate.
UL:E189924 TUV:50103015 complying with RoHS
