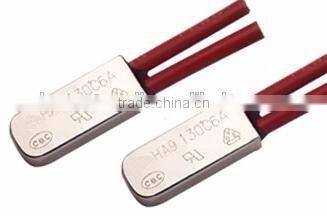

HA9 Normally Open/Close UL CQC Certified Snap Action Thermal Protector
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
HW
Model Number:
HA9
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HA9B PBT Plastic Case UL CQC Certified Normally Open/Close Snap Action Thermal ProtectorNegotiableMOQ: 1000 Pieces -
HB02 Mini Size Low Resistance Gasketed Case Snap Action Thermal ProtectorNegotiableMOQ: 1000 Pieces
-
HB05 Mini Size UL CQC Certified Snap Action Thermal ProtectorNegotiableMOQ: 1000 Pieces
-
Snap Action Thermal ProtectorUS$ 0.2 - 0.3MOQ: 1000 Pieces
-
Snap Action Thermal ProtectorUS$ 0.2 - 0.3MOQ: 1000 Pieces
Place of Origin
Taiwan, China
Brand Name
HW
Model Number
HA9
HA9 Normally Open/Close UL CQC Certified Snap Action Thermal Protector
Applications:
Transformer, series motor, NI-MH battery, air-conditioner, washing machine, juicer, vacuum cleaner, massage chair, seat heating pad, etc.

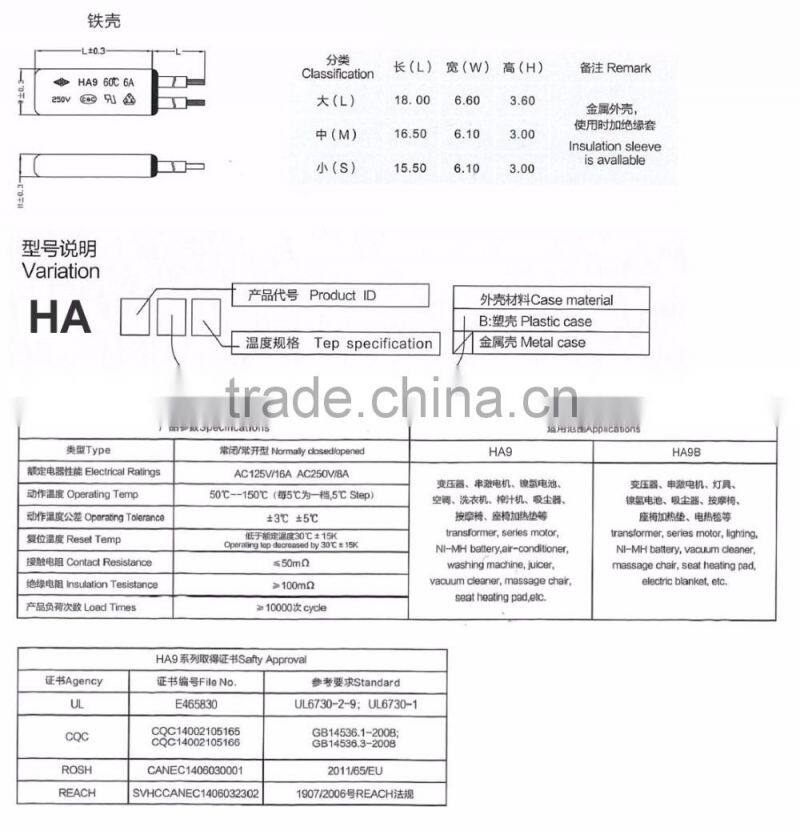

Specification:
| Contact type | Normally Close , Normally Open |
| Rating | AC250V/12A AC125V/20A |
| Operation temperature | 50°C-160°C (every 5℃ /scale) |
| Tolerance | ±3°C ±5°C |
| Reset temperature | Less than operation temperature 30℃±15K |
| Resistance | ≤50mΩ |
| Insulation resistance | ≥100MΩ |
| Life cycle | 10,000 cycles |
