Help CenterTTM Series Micro Switch
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
HW
Model Number:
TTM
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Taiwan, China
Brand Name
HW
Model Number
TTM
Max. Current
500mA
Max. Voltage
12VDC
TTM Series Micro Switch
Features: Compact detector switches for micro-current circuit.
Applications: Compact audio products, office machines, compact radio equipments, VCRs, video camera recorders, etc.

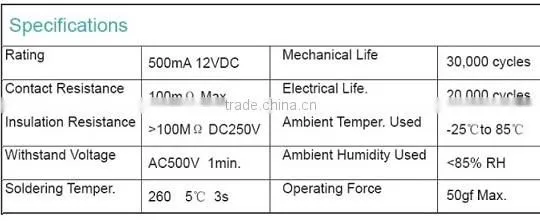

Specification:
| Rating | 500mA 12VDC |
| Contact Resistance | 100mΩ Max. |
| Insulation Resistance | >100MΩ DC250V |
| Withstand Voltage | AC500V 1min. |
| Soldering Temper | 260 5°C 3s |
| Mechanical Life | 30,000 cycles |
| Electrical Life | 20,000 cycles |
| Ambient Temper. Used | -25°C to 85°C |
| Ambient Humidity Used | <85% RH |
| Operating Force | 50gf Max. |
