Help CenterR6 Series Rocker Switch
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
HW
Model Number:
R6
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Taiwan, China
Brand Name
HW
Model Number
R6
Max. Current
10A
Max. Voltage
250V
Mechanical Life
30,000

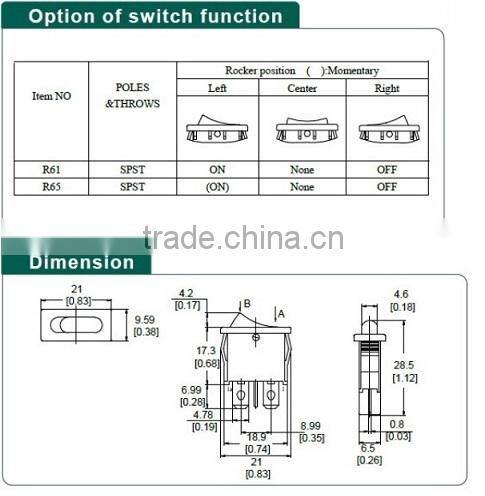

R6 Series Rocker Switch
Spec:
| Electrical Rating |
6A 250VAC/10A 125VAC(UL) 4(1)A 250VAC(VDE) |
| Mechanical life | Over 30000 cycles |
| Electrical life | Over 10000 cycles |
| Contact resistance | <20mΩ |
| Insulation resistance | >1000MΩ |
| High voltage resistance | >1500V 1 min. |
| Ambient temperature | Terminal side -20 to +85°C |
| Actuating side | -20 to +55°C |
| Storage temperature | -30 ~ +85°C Max |
| Atmospheric humidity | Max.85% |
| Actuating force | 4N |
| Flammability | UL94 V-2 |
| Temperature rise at the terminal | Max 30°C (UL1054) |
| Solder ability of terminal | Max 350°C,3s |
Material:
| Housing | PA66 |
| Rocker | PA66 |
| Contact | Silver Alloy |
| Terminal | Brass Silver Plated |
| Movable Arm | Copper Silver Plated |
