SMS Pump Controller Light Power Switch
SMS Pump Controller Light Power Switch

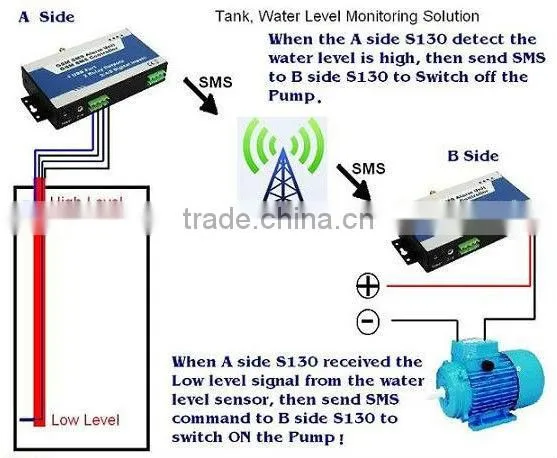

Hot selling Automatic Water Level Tank Pump Controller S130
SMS Remote Controller, Home Automation
Turn Relay ON OFF by Mobile Phone/SMS Text Command
Keyword: remote controller for motor, generator, pump, water well, valve, power,Remote Controller, Wireless Remote Switch, GSM controller, Automation,Remote Controller S130/S140/S150 work as a wireless remote switch or Automation by GSM network.Also called GSM Remote Controller in industry area.
ios APP iKeypad download free on APP STORE!
Android App Available Now!!!
Make Control Easier!
ASK US FOR MORE DETAILS!
- Wireless remote controller work by GSM Quad-band Network
- Lighting/Pump/Generator/Motor/Valve Remote switch controller

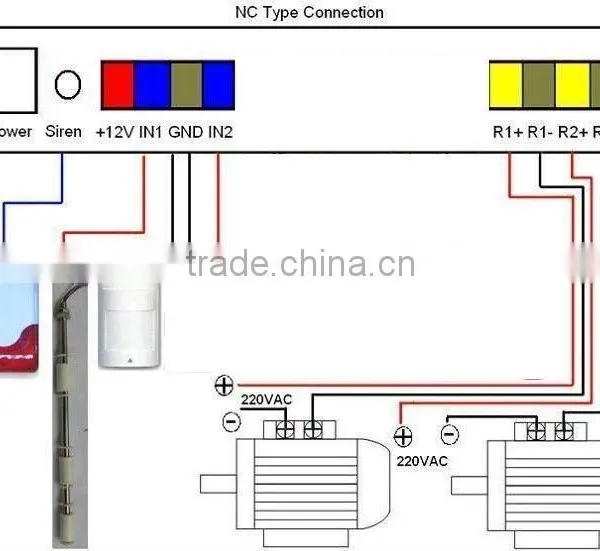

- Wireless GSM Switch 2/4/8 NC/NO Dry Contact Inputs & 2 Relay Outputs
>>>Vending machine controller;
>>>Pump,Motor,Tank,Generators monitoring and switch control.

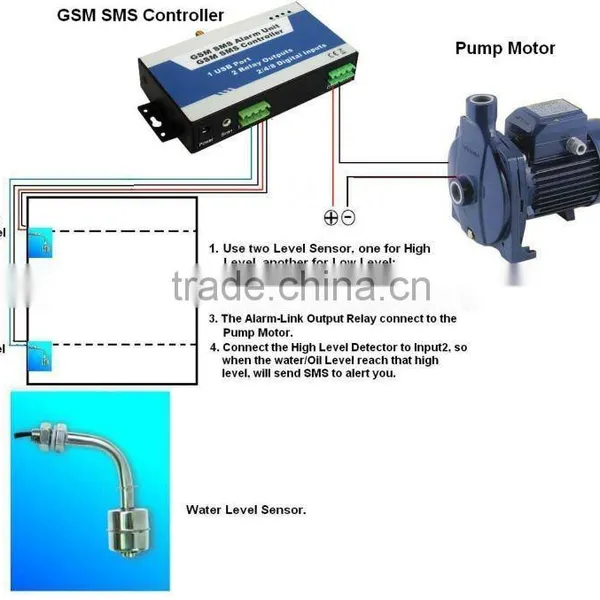

Automatic Water Level Tank Pump Controller S130 Features:
Model | Digital Input | Relay out | Analog input | USB | RS 232 | SMS Alarm Numbers | Dialing Alarm Numbers | Voice Call in | On-site Alarm | AC Power failure alarm | Batt -ery |
S130 | 2 | 2 | 0 | 1 | 0 | 3 | 5 | Yes* | Yes* | SMS | Yes |
S140 | 4 | 2 | 0 | 1 | 0 | 3 | 5 | Yes* | Yes* | SMS | Yes |
S150 | 8 | 2 | 0 | 1 | 0 | 3 | 5 | Yes* | Yes* | SMS | Yes |
RTU5010 | 4 | 4 | 0 | 0 | 1 | 10 | Same as SMS | / | Relay to siren | SMS | Yes |
RTU5011 | 8 | 8 | 4 (0-20mA) | 0 | 1 | 10 | Same as SMS | Yes* | Relay to siren | SMS | Yes |
- >>> 1 relay output (240VAC/3A) can be switched ON/OFF by sending a SMS text;
- >>> 1 relay output (240VAC/3A) can be switch on 0-120mins if any inputs triggered;
- >>> 2/4/8 Alarm logic inputs, NC or NO and EOL is optional;
- >>> 3 SMS Alert numbers and 5 auto-dial phone numbers can accept to the alarm message;
- >>> Two-way voice communication* by external microphone and speaker;
- >>> Supports armed, disarmed, inquiry status, switch ON or OFF relay output by SMS Commands;
- >>> Password protection, prevents unauthorized user;
>>>>>> Automatic Water Level Tank Pump Controller S130 suitable for:
1.Security Alarm System applications;
2.Supervision and monitoring alarm systems;
3.Automatic monitoring system;
4.Vending Machines security protection;
5.Pumping Stations, Tanks, Oil or Water levels;
6.Buildings and Real Estate;
7.Weather Stations;
8.River Monitoring and Flood Control;
9.Oil and gas pipelines;
10.Corrosion protection
11.Temperatures, water leakage applications;
12.Wellheads, boat, vehicle;
13.Energy saving, street lights control system;
14.Valve controls;
15.Transformer stations;
16.Unmanned machine rooms;
17.Control room application;
18.Automation System, M2M;
19.GSM Access Control System, GSM Gate Opener, etc.
>>>>>>Specifications of Automatic Water Level Tank Pump Controller S130 :
GSM Frequency: Default 900/1800/1900MHz, Optional 850/1900/1800/1900MHz
Power adapter: DC 12V/1.5A
Power Current: Max:500mA Type :50mA
SIM Card : Supporting 3V SIM Card
GSM Antenna : 50 Ω SMA Antenna interface,
Serial : USB Port
Input Type : UP TO 8, dry contact, NC,NO,EOL
S130: 2
Output Type : 2 Relay,dry contact, 240VAC/3A.
Dimension : LxWxH 153x86x28mm
Backup-Power : 3.7V 1200MAh LI-ION battery
Temperature : -20°C ~ +60 °C
Humidity : Relative humidity 20~95% (condensation free)
Net Weight : 320g
** Electrical Characteristics /25°C
>>>>>>Standard Package list of Automatic Water Level Tank Pump Controller S130 :
>>GSM SMS Controller * 1
>>AC/DC Power supply adapter * 1 (12V 1.5A),UK/EU/USA/AU type plug are available

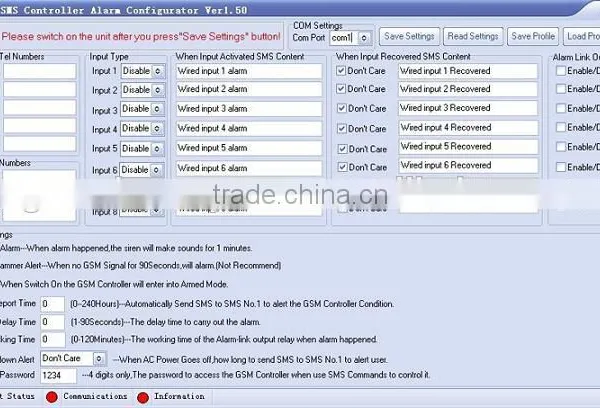

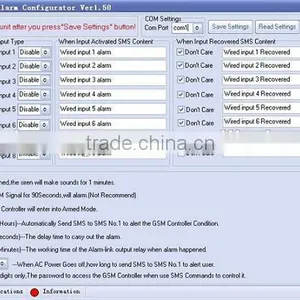

>>CD (Pc programmer tool) * 1
>>GSM Antenna * 1
>>Package Size:W190*D140*H60mm
>>Gross Weight: 1.0Kg
15pcs per carton
>>Optional Accessories:
Water Overflow Level Sensor,
Oil Overflow Level Sensor,
Water Leak Sensor,
Temperature Sensor,
Door Sensor,
PIR Motion detector,
Smoke detector,
Gas Leak detector,
Glass Break detector,
Shock detector,
Power failure detector, etc.
>>>>>>>Why KING PIGEON?
King Pigeon is a professional GSM Wireless Alarm, GSM Home Alarm System, GSM SMS Alarm, GSM SMS Controller, GSM Home Automation system, Industrial Remote Controller, GPRS RTU Data Logger, GSM Telemetry, Temperature Measurement Logger, Power Monitoring Alarm, GSM M2M Products Manufacturer since 2005.
Based on more than 8 years rich experiences, King Pigeon provide Professional High Quality and Reliable OEM/ODM service for the market in worldwide!
welcoem to visite our website:gsmalarmsystem.en.china.cn (King Pigeon Hi-Tech Co., Ltd.)to know more about us!!
Welcome OEM/ODM Service
Put Your LOGO on Unit and Package Available!
Your any requests would be much appreciated, please do not hesitate to contact us.
Skype: gsmalarm55
