Help CenterTTS Series Micro Switch
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
HW
Model Number:
TTS Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Taiwan, China
Brand Name
HW
Model Number
TTS Series
Max. Current
3A
Max. Voltage
250VAC

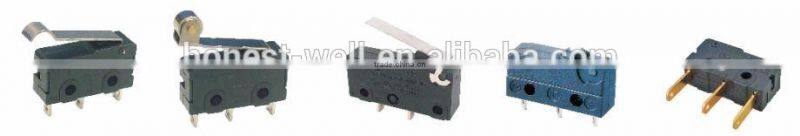

TTS Series Micro Switch
Features:
- Reliability, small size and light weight;
- It has long life and more operating forces can be applied such as lightly force
- Good feeling and more levers are applied.
Applications: Telephone, air conditioner, computer, humidifier, alarm, time recorder, solder gun, fax machine, joystick, water pump, toy car, light, etc.
Specification:
| Rating |
3A 125V/250VAC (5A 6A 10.1A) |
| Contact Resistance | 500mΩ Max. |
| Insulation Resistance | >100MΩ DC500V |
| Withstand Voltage | AC1000V 1min. |
| Soldering Temperature | 260±5°C 3s |
| Mechanical Life | 1,000,000 cycles |
| Electrical Life | 10,000 cycles |
| Ambient Temperature Used | -25°C ro 85°C |
| Ambient Humidity Used | <85% RH |
| Operating Force | See Table |
