Help CenterLC303 Series Rocker Switch
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
HW
Model Number:
LC303
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Taiwan, China
Brand Name
HW
Model Number
LC303
Max. Current
2A
Max. Voltage
250VAC
Mechanical Life
30,000 cycles

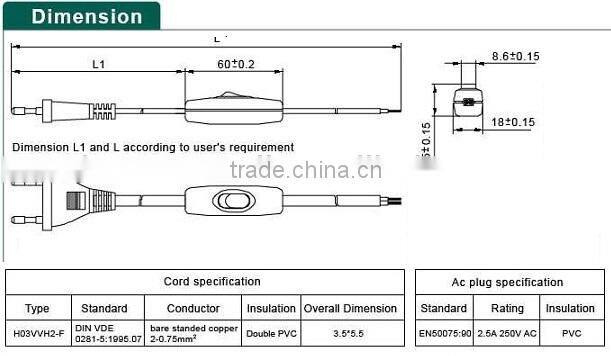

LC303 Series Rocker Switch
Specification:
| Electrical Rating | 2A 250VAC |
| Mechanical life | Over 30000 cycles |
| Electrical life | Over 10000 cycles |
| Contact resistance | <20mΩ |
| Insulation resistance | >1000MΩ |
| High voltage resistance | >1500V 1 min. |
| Ambient temperature | Terminal side -20 to +85°C |
| Actuating side | -20 to +55°C |
| Storage temperature | -30 to +80°C Max |
| Atmospheric humidity | Max.85% |
| Actuating force | 4 to 6N |
| Flammability | 94V-2 |
| Temperature rise at the terminal | Max 30°C (UL1054) |
| Solder ability of terminal | Max 350°C,3s |
Material:
- Housing: PC
- Rocker: PC
- Contacts: Silver Alloy
- Terminal: Copper or Brass Silver Plated
