Specifications

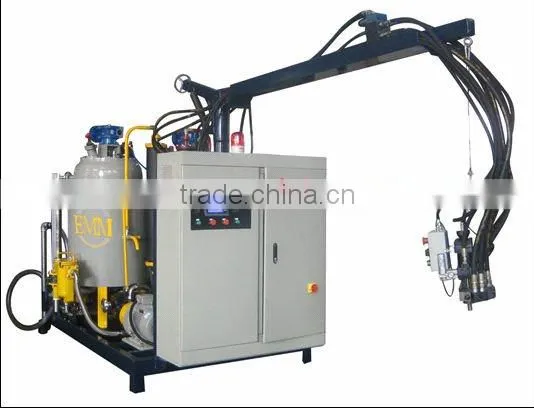

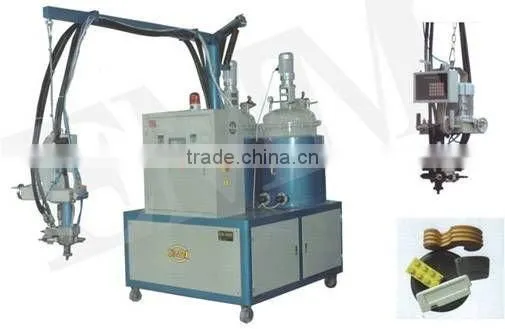

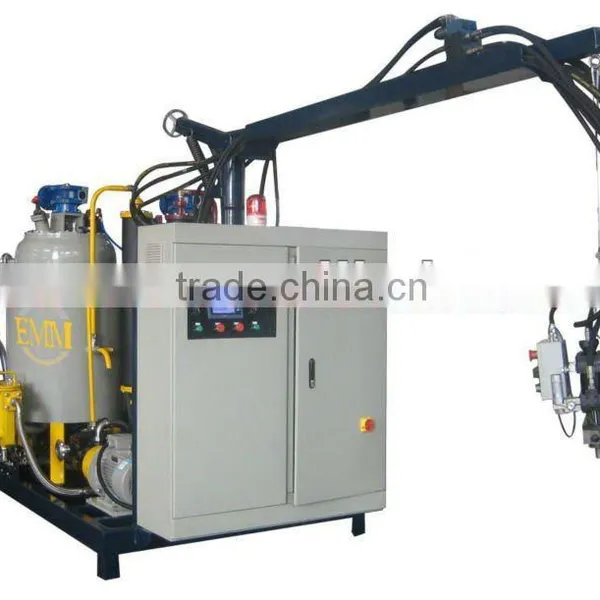

EMM078-A100-H High Pressure Foaming MachineEMM078-A100-H High Pressure Foaming Machine
Technical capacity
2.1 Model: EMM078-A100-H
2.2 Foam type:hard foaming,half-hard foaming
2.3 Viscosity:(22°C)
POLY:~2000mPas
ISO:~1000mPas
2.4 Pouring output:150-1530g/sec (1:1),adjust range of mix ratio:5:1~1:1
2.5 Injection time:0.5~99.99 (accuracy reach 0.01s)
2.6 Injection Program No.:
Hand-injection:9
Auto-injection:99
2.7Measure unit:measure accuracy ≤0.5%
Component material |
POLY |
ISO. |
Quantity |
1 |
1 |
Pump model |
A2VK28 |
A2VK28 |
Variable-frequency motor power(kw) |
11 |
11 |
Motor speed(rpm) |
1450 |
1450 |
Pump shaft seal lubricate |
DOP |
Magnetic connect (free-maintain) |
For component’s measurement, it includes bracket with vibration pads, variable frequency motor, coupling, axial piston pumps and valves, electronic pressure switches, etc.
