Specifications
1.high pressure2.three-component
3.intelligent computer control
4.hot oil heating
5.separate incuba

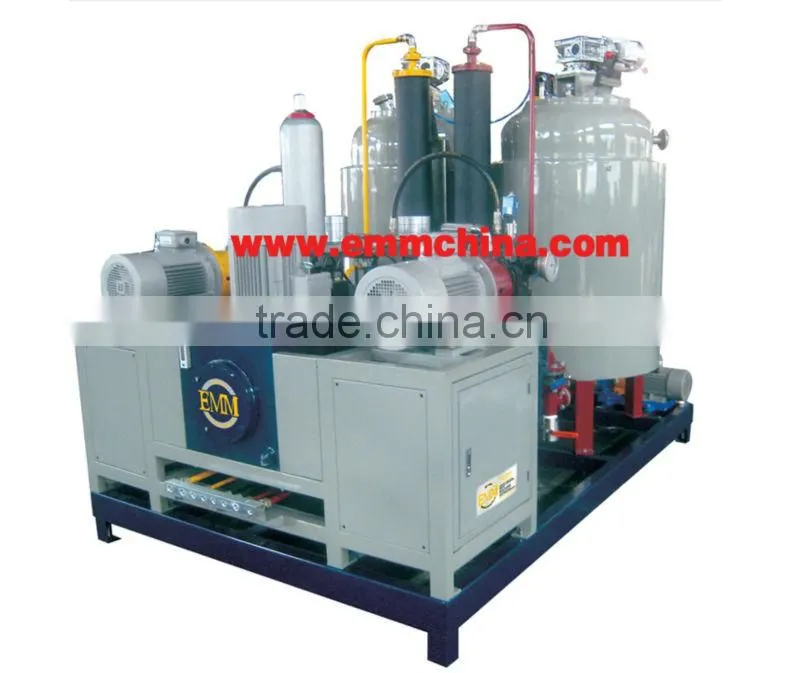

High pressure pu foaming machines EMM091-4
1. Introduction

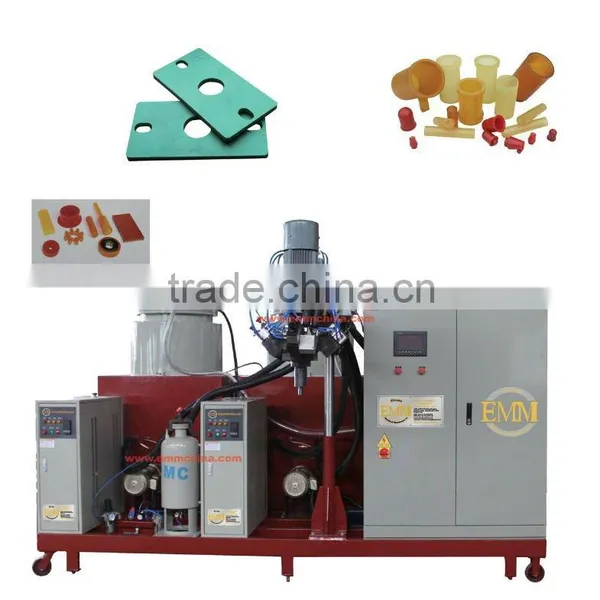

EMM091 series elastomer casting machine, a new kind of machine, develop on the base of EMM087series,
has reached to the world level. EMM091-5 series elastomer casting machine suits pours precisely two
to three component PU systems,such as a prepolymer add a high melting point of the chain extender (such as MBOCA); a prepolymer plus a chain extender diols (found in MDI cast elastomer systems) or a polyol, a diisocyanate and a chain extender (one-step casting MDI, MDQ system elastomers ).
2. Applicable Viscosity
A (Polyols or prepolymer ): ~4000mpa.s (45°C-100°C)
B (MDI/MDQ or prepolymer ): ~4000mpa.s (45°C-100°C)
C (when a chain extender alcohols): ~500mpa.s (45°C)
C (when MOCA): 10~1000mpa.s(130°C)
3. Pouring output
Output: 10000-30000g/min
The pouring out will be different as result of raw materials’ density and mixing proportion.
As the same time, the standard three-component casting machine could to increase the third injection head, according to the product needs to add color,
add catalyst (customers can choose according to their own needs). The casting machine by intelligent computer control.
4. Performace index
4.1 Pipeline
Material: PTFE strengthen stainless steel wire mesh
The heating system: oil heating
Temperature measurement system: have 6 sets PT100 thermal sensor
The max. pressure: 20 bar
The max. Temperature: 130°C
Temperature error: control +/- 1°C
These high flexibility insulation pipe can ensure the consistency of temperature in the whole pipeline.
4.2 Metering system (A,B,C component)
Metering pump: gear pump import from Germany Barmag
Filter screen: nets type filter, stainless steel AISI 304
Motor: converter in accordance with tachometer and motor to control the flow speed.
A |
B |
C |
Color 1 |
Color 1 |
|
Quantity |
1 |
1 |
1 |
2 |
1 |
Metering pump type |
GMB01D/12cc/(Barmag) |
GMA21D/6cc/(Barmag) |
GM121D/0.6(Barmag) |
GMD31D/0.3CC/(Barmag) |
JRG0.15/0.15cc/(China) |
Shift motor power |
1.5 kw |
0.75 kw |
0.37kw |
0.37kw |
0.37kw |
Speed(Rpm) |
40-200 |
40-200 |
40-200 |
40-200 |
40-200 |
pump sealing lubricating |
DOP |
DOP |
DOP |
DOP |
DOP |
Flowmeter |
VSED 58809 |
VSED 58809 |
VSE FLOWMETER |
The measurement system and filter in ovens, insulation material below. This design method can be pressurized tank in the wrong circumstances, to maintain sustained and steady output of raw materials; and keeping the consistency of the temperature. Computer will be set to control output of the wheel pump. This control system can ensure that the output of raw materials in the setting value of + / - 0.3% .
