Specifications
1. long life2.low noise.
3.high rigidity and precision

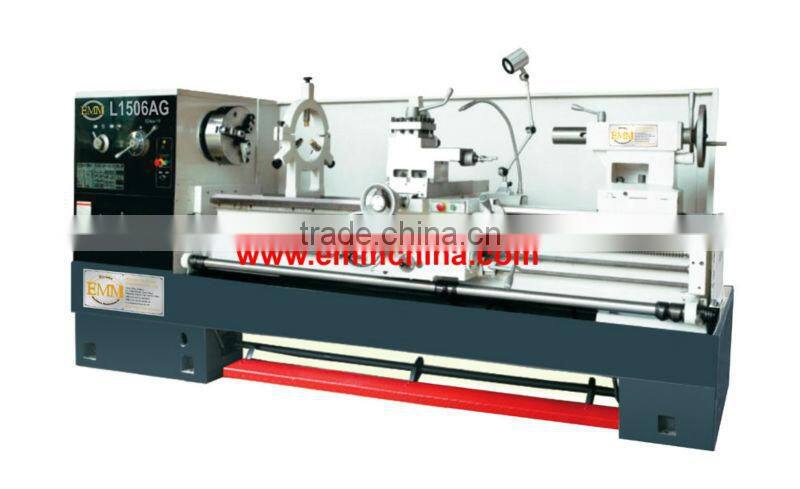

L1506AG Gap-bed cnc machining turning
Feature
1-The surface of the bed ways is supersonic frequency.
2-The spindle bore size is 80mm. The spindle system is high in rigidity and accuracy.
3-Rapid feed structure is available on Apron.
4-Clutch in headstock makes the lathe more attractive.
Main specification
Specification | ||||
Item |
Model |
L1506AG |
||
2000 | ||||
Max. Length swing diameter |
Over bed |
mm |
Φ500 |
|
Over carriage |
mm |
Φ310 |
||
Over gap |
mm |
Φ720 |
||
Max. length of work piece |
mm |
2000 |
||
Sindle |
Spindle bore |
mm |
Φ80 |
|
Taper of bore |
M.T. NO.7 |
|||
Number of speeds |
12 |
|||
Range of speeds |
r.p.m |
36-1600 |
||
Thread cutting |
Metric Range/No |
1-14mm/22 |
||
Inch Range/No |
28-2T.P.1/26 |
|||
D.P. Range/No |
56-4D.P/24 |
|||
Module Range/No |
0.5-7mm/18 |
|||
Range of feeds |
Longitudinal |
mm |
0.063-2.52 |
|
Cross |
mm |
0.027-1.07 |
||
Rapid traverse |
Longitudinal |
m/min |
4.5 |
|
Cross |
m/min |
1.9 |
||
Tailstock sleeve |
External diameter |
mm |
Φ75 |
|
Taper of bore |
M.T.No.5 |
|||
Max. Travel |
mm |
150 |
||
Max. top slide travel |
mm |
145 |
||
Max. cross slide travel |
mm |
340 |
||
Max. size of tool shank (W×H) |
mm |
25×25 |
||
Power of main motor |
kw |
7.5(10HP) |
||
Overall dimensions (L×W×H) |
mm |
3500*1100*1380 |
||
Net weight |
kg |
3400 |
||
