Specifications:
1.Simple operation

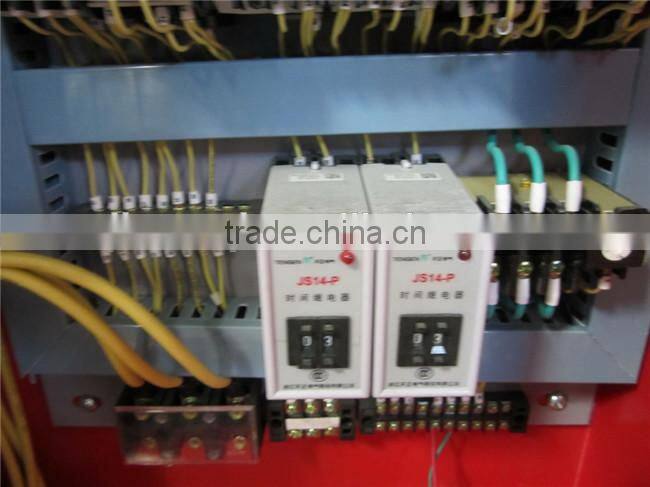

2.PLC control ,safe and convenient
3.100% real manufacturer
4.Good quality

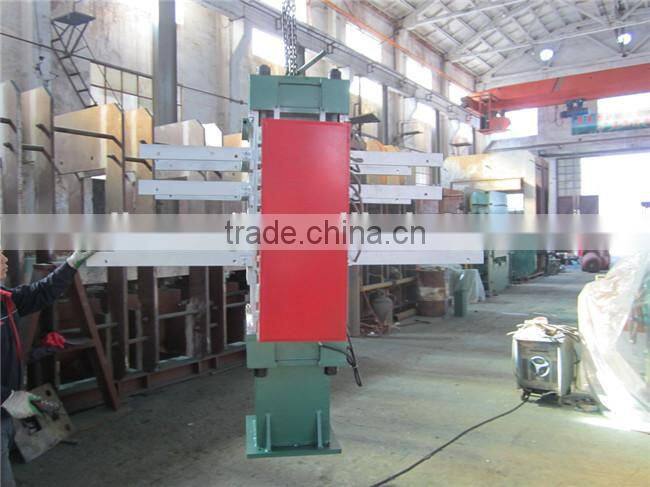

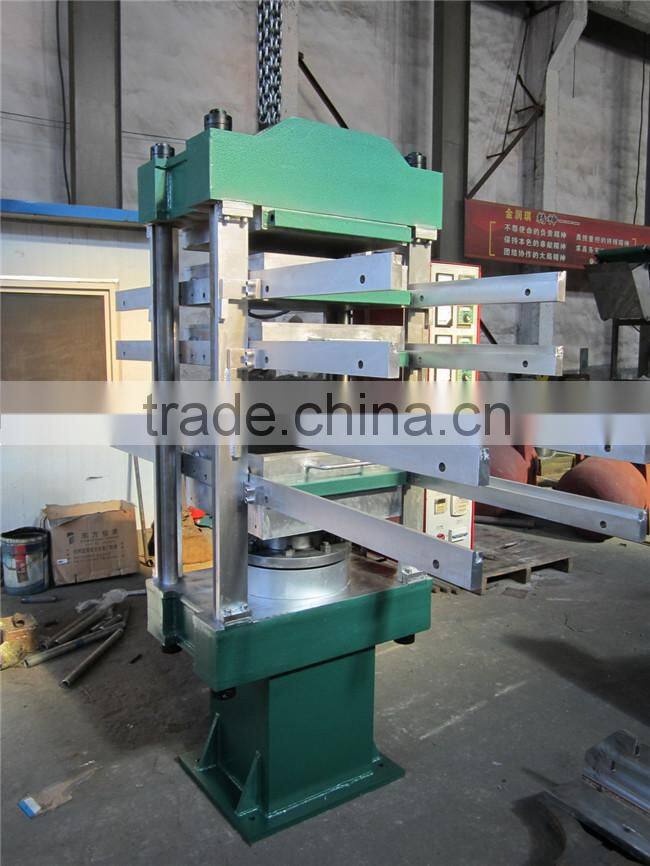

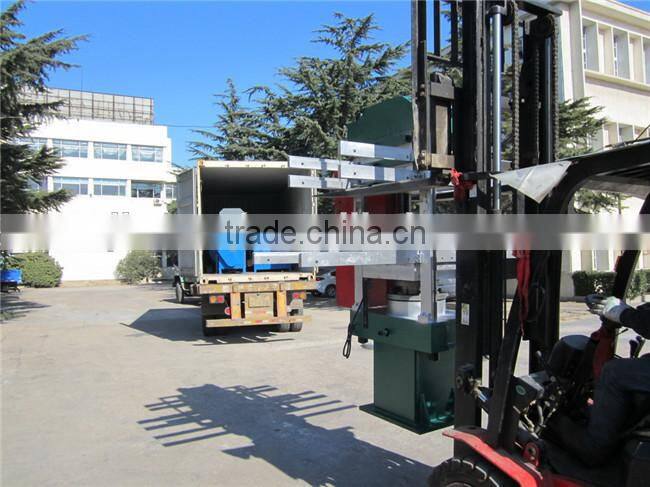

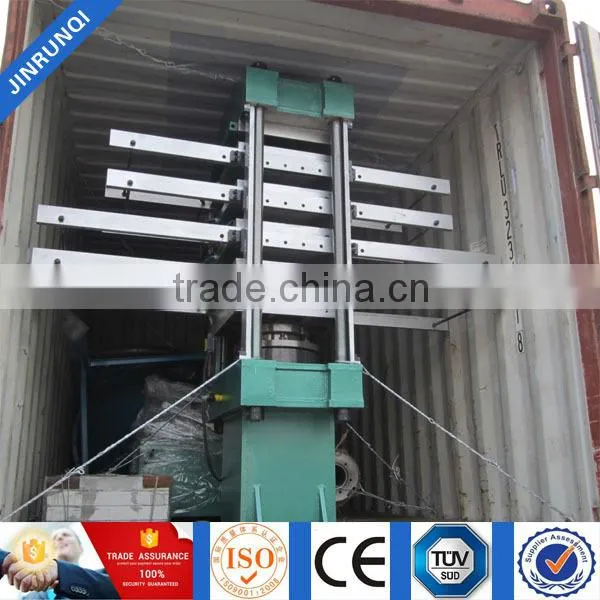

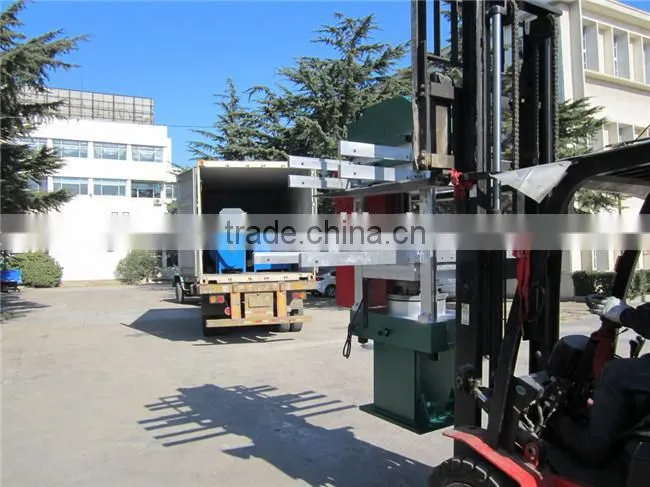

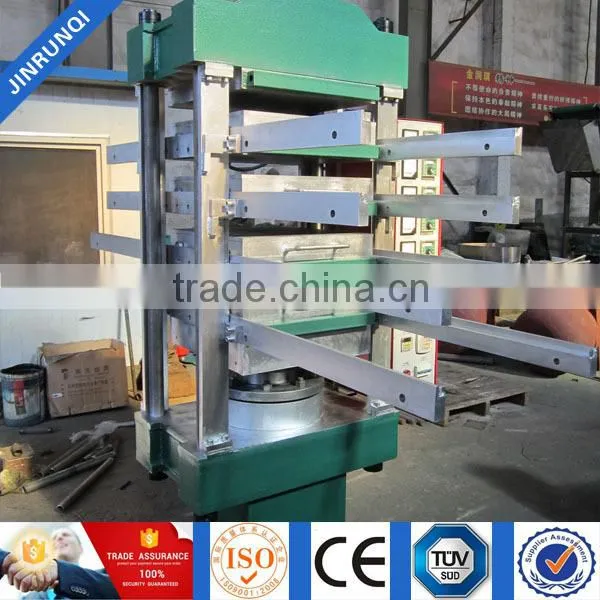

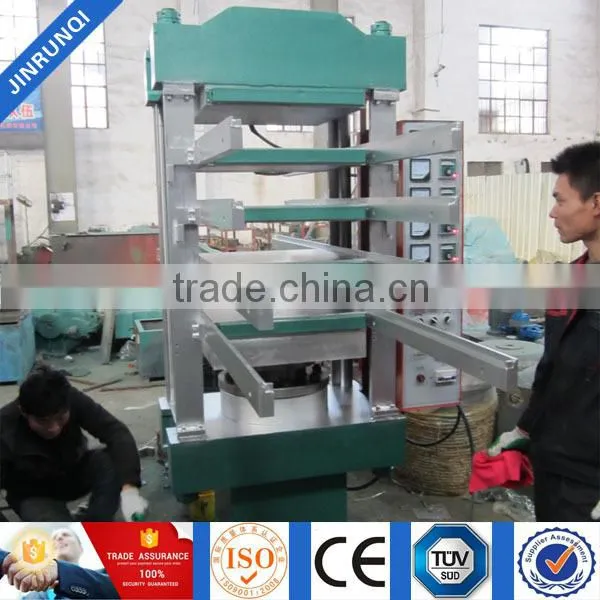

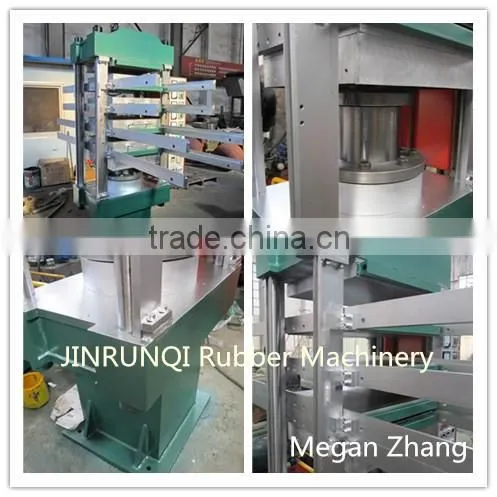

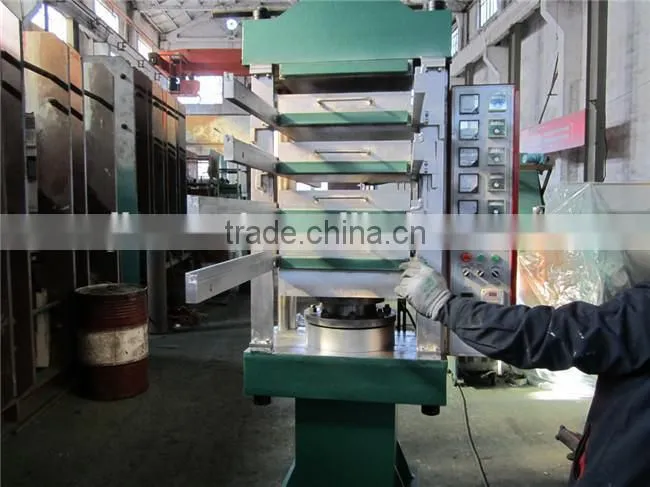

Rubber tile press with moulds
/rubber floor tiles making machine with molds
1. Applications:
Rubber tile vulcanizing press is to make rubber granules (from waste tires) into rubber tiles. It can heat the mixed recycled rubber granules, glue and pigment; and make all kinds of rubber tiles as different moulds.

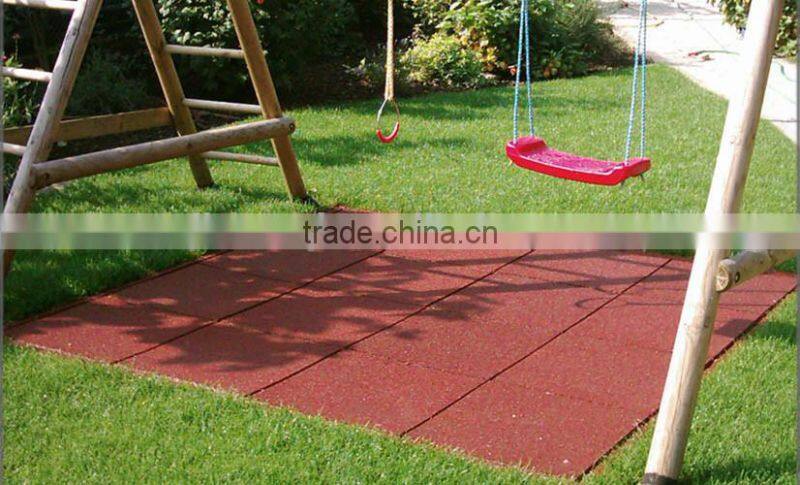

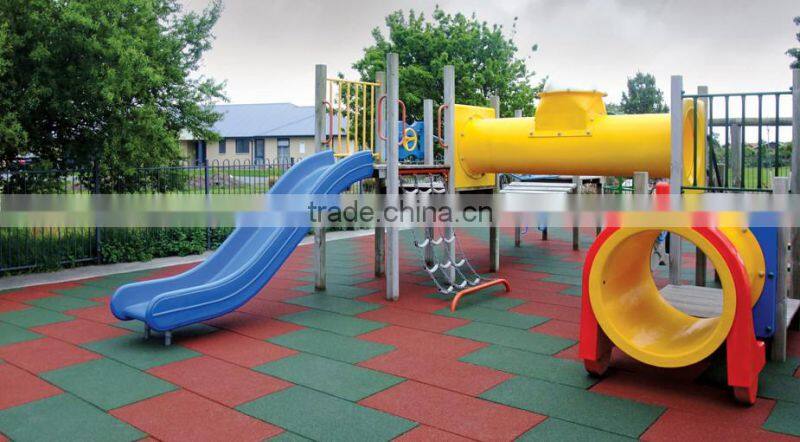

This kind of products are used in stadiums, children yard, sports playground, gym, senior
center, swimming pool beach, kindergartens, nurseries, parks, stations, shopping malls, office,
hotels and so on.
Rubber tiles is with elasticity, high strength, stand wear and tear, anti-slip, shock proof, insulation, anti-static. Ground covered with rubber tiles can protect people from falling down.
2. Production process:
2.1 Raw material: A. rubber granules B.Polyurethane glue C. Color pigment
2.2 Production: Put rubber granules into mixer. Add glue and color pigment. Mixer will mix them completely. Then put granules after mixing into molds and spread out. Push molds into vulcanizing press. After 10-12 minutes, it can be finished and take out the tiles.
2.3 Capacity: Common rubber tile size is 500*500mm. There are also bigger size which is 1000*1000mm.
Thickness of the tiles can be from 15mm to 50mm. Thickness used often is 15mm, 20mm, 25mm and 30mm.
Different thickness, vulcanizing time is a little different.
2.4 Parameters:
We also have 80 Ton,100 Ton,160Ton tile making machine,
You can chose the size of the machine as your need.
Total pressure |
50 Ton |
Hot plate size size |
550*550 |
Number of working layer |
4 |
Piston diameter (mm) |
200 |
Stroke of piston (mm) |
600 |
Distance between hot plate (mm) |
125 |
Unit area pressure of hot plate (Mpa) |
2.0 |
Power (KW) |
2.2+18 |
Voltage |
380v 50hz |
Working oil pressure |
160 Mpa |
Heating mode |
Electrical mode |
Working temperature |
200 |
Overall size (L*W*H) (mm) |
1800*550*2100 |
Weight (kg) |
1700 |
Control mode |
Automatic |
Close mould speed (mm/s) |
≥12 |
Open mould speed (mm/s) |
≥12 |

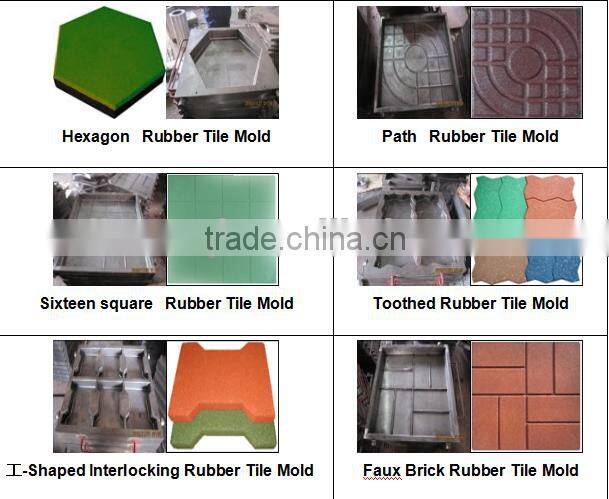

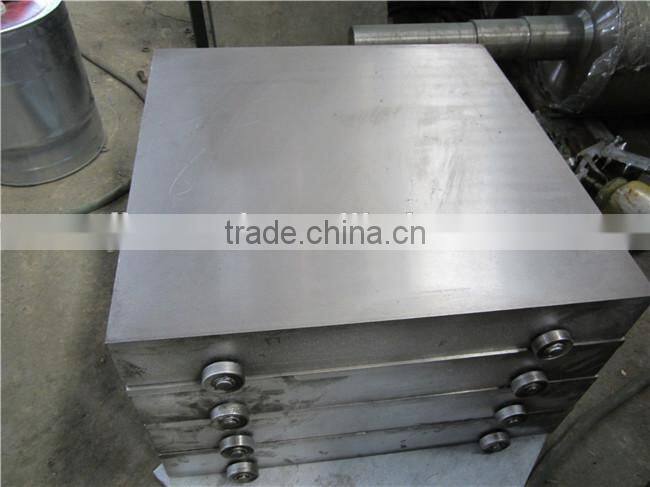

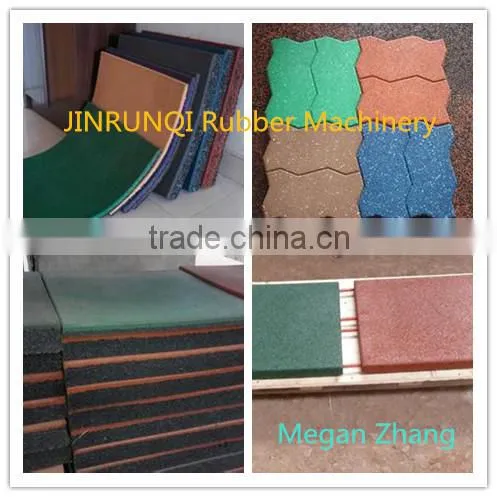

2.5 Different moulds: the patterns can be designed according to your need.
2.6 Main uses:
We are QINGDAO Jinrunqi Rubber Machinery CO.,LTD. Our main products are plate vulcanizing machine, curing press, rubber machine, conveyer belt vulcanizing press, Rubber crushing mill, Rubber refining mill, rubber tiles vulcanizing press, tire building machine, rubber kneader, two-roll mixing mill and so on.
The products have been exported to many countries, such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc .
If you interested in our products mentioned above. Kindly welcome to our factory for a visit and let us know by return email. Also we can make non-standard rubber machinery as customer’s requirements.
