Floor tiles making machine line/gym rubber machine/rubber tiles making machine
1. Structural Features:

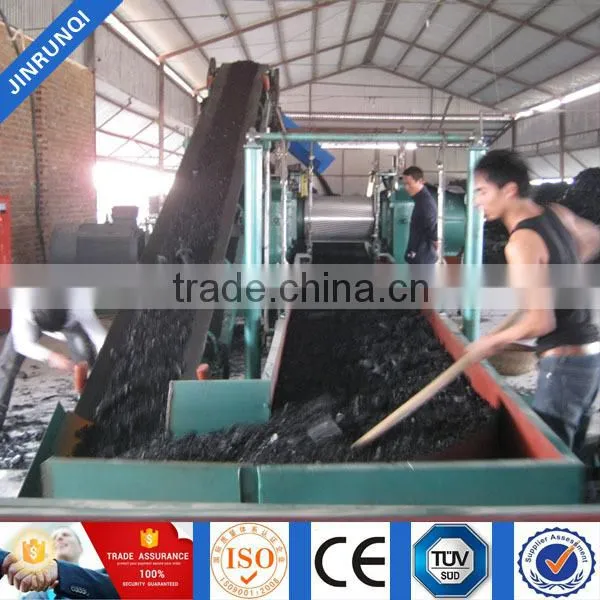

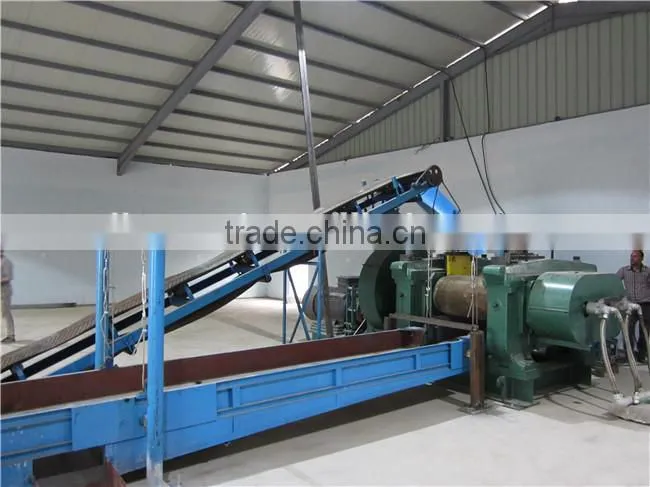

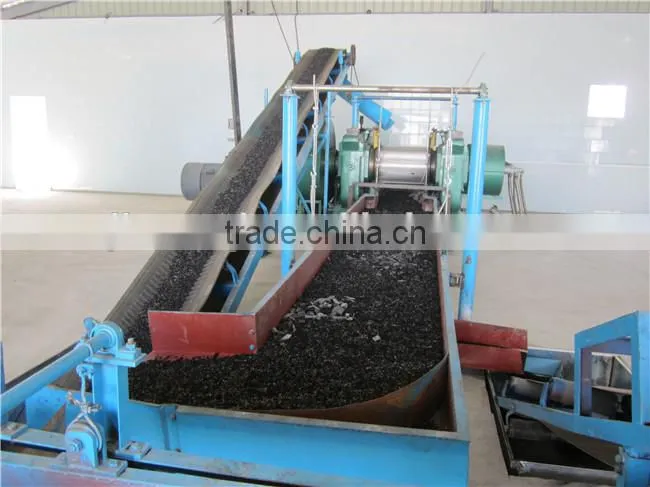

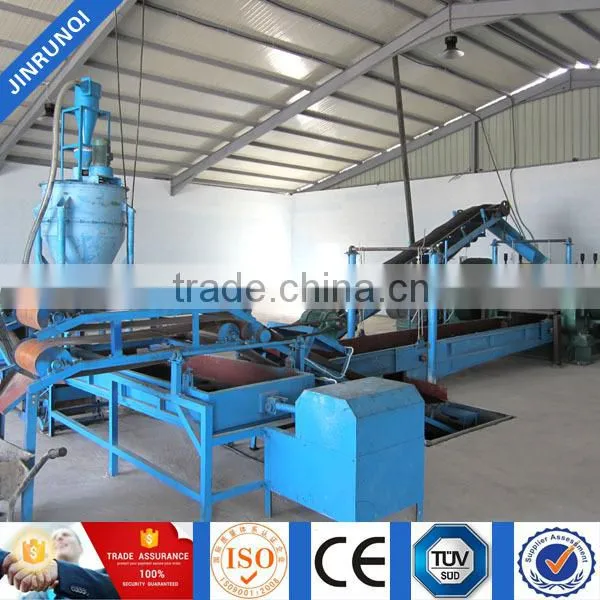

- The line is consist with two parts, rubber crusher mill and auxuliary devices. This line maily used for recycling waste tyre ( contain steel wire and fiber wire ) into rubber powder and also processing waste rubber products into rubber powder. Main machine is rubber crusher mill, there are three models could meet customers' different requirements.

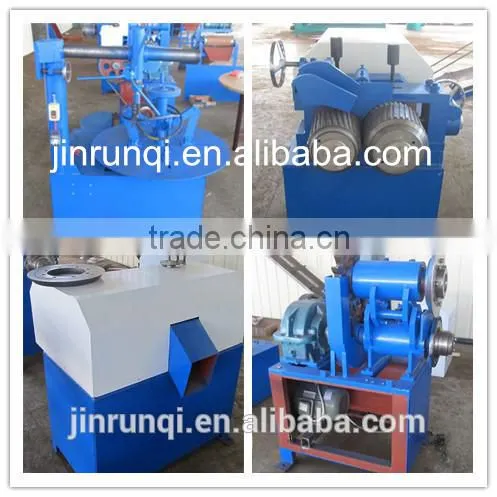

- The auxilliary devices include loop machine, ring cutter, strip cutter, block cutter, conveyor, vibrating device and megnetic seperator.
- For the request of market, most clients need the poder reach 80-120 meshes. Then the line will attach fiber seperator and refining mill machine.
2. Application: waste tyre recycling machine is used to make old&waste tire into rubber powder and collect steel wire. The powder could produce recalimed rubber.
Waste tire pretreating: Get 30*30mm or 40*40mm blocks. | |||
1 |
Ring cutter |
QQJ-20 |
1 |
2 |
Loop machine |
YQJ-285 |
1 |
3 |
strip cutter |
QTJ-380 |
1 |
4 |
block cutter |
QKJ-45 |
1 |
Rubber powder treatment: 5-30 meshes rubber powder. Separate steel wire and fiber from rubber powder. | |||
5 |

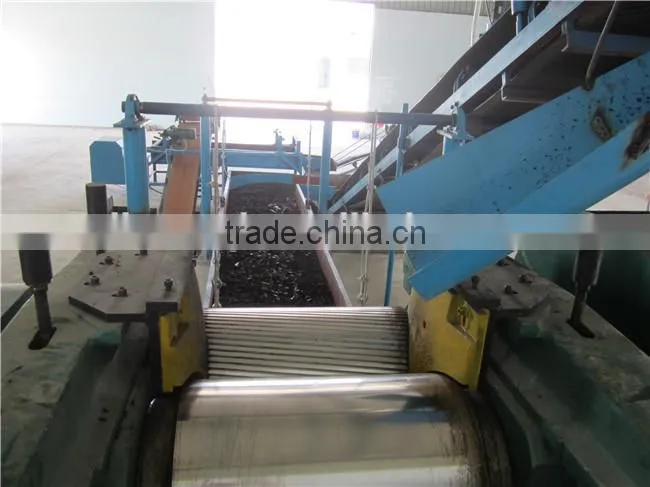

Two roll rubber crusher |
XKP-400 |
1 |
XKP-450 | |||
XKP-560 | |||
6 |
Main conveyor |
BCL-8 |
1 |
7 |
Small conveyor |
BCL-3 |
1 |
8 |
Double-deck magnetic separator |
BMS-22 |
1 |
9 |
Single-deck Magnetic |
SMS-1 |
1 |
10 |
Main vibrating sieve |
BSS-8 |
1 |
11 |
Small vibrating sieve |
SSS-3 |
1 |
12 |

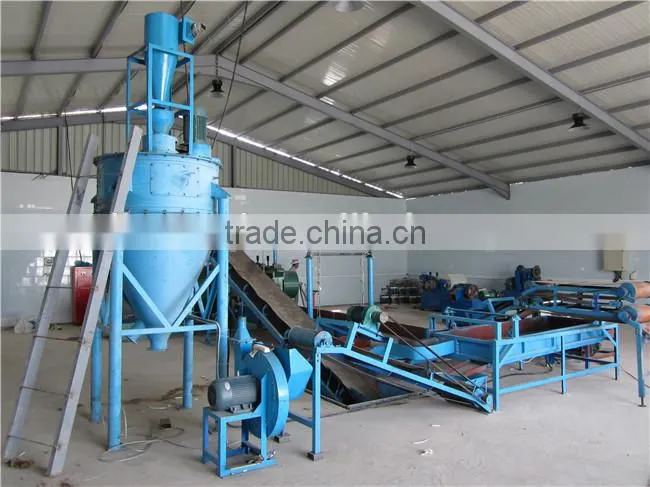

Fiber Processing Equipment |
FS-1100 |
1 |
3. Production capacity and energy consumption
NO |
MODEL |
Total Power(KW/h) |
Production Capacity (kg/h) |
1 |
XKP-400 line |
About 103.2kw |
200-300kg for around 10-30 mesh rubber powder. |
XKP-450 line |
About 113.2kw |
400-500kg for around 10-30 mesh rubber powder |
|
XKP-560 line |
About 132.2KW |
600-800kg for around 10-30 mesh rubber powder. |
|
Floor space:About 300-400 m2, Workers needed:3 operator and 1 maintainer | |||

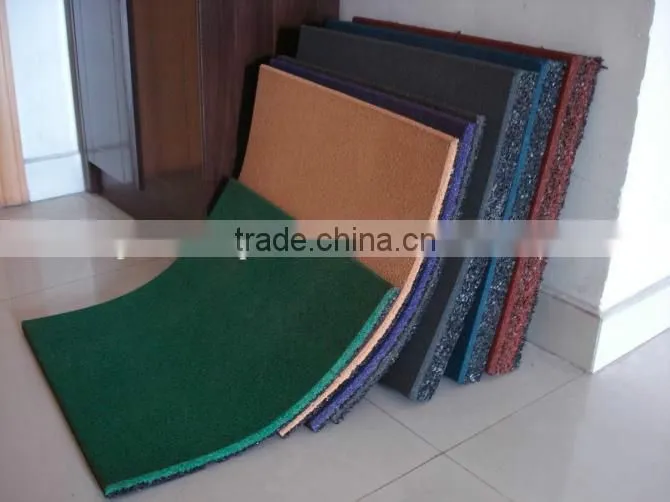

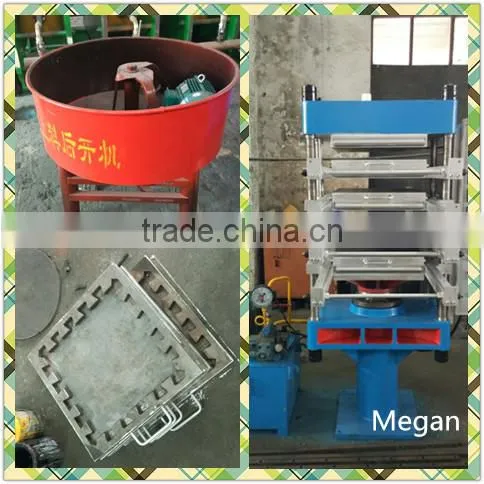

Rubber floor tiles making machine
We are QINGDAO Jinrunqi Rubber Machinery CO.,LTD. Our main products are plate vulcanizing machine, curing press, rubber machine, conveyer belt vulcanizing press, Rubber crushing mill, Rubber refining mill, rubber tiles vulcanizing press, tire building machine, rubber kneader, two-roll mixing mill and so on.
The products have been exported to many countries, such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc .
If you interested in our products mentioned above. Kindly welcome to our factory for a visit and let us know by return email. Also we can make non-standard rubber machinery as customer’s requirements.
