Qingdao Jinrunqi Rubber Machinery
Main products
1.Double Automatic Vulcanzing Press,Automatic Vacuum Vulcanizing Press,Rubber Injection Molding Machine,Solid Tire Vulcanizing press,Frame Type Plate vulcanizing press,Large plate vulcanizing press,Doplex"C" type vulcanizing press,sidewall /textile core/steel core conveyor belt production line
2.Rubber tiles vulcanizing press, Semi/auto waste tire recycling line,Reclaimed rubber production line
3.rubber kneader,rubber mixing mill, rubber calender,rubber crushing mill, Rubber refining mill,rubber extruder,Batch off cooler and so on.
The products have been exported to many countries, such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc .
Rubber Floor Tile Making Machine / Waste Tire Recycling Machines
Raw material: A. rubber granules B.Polyurethane glue C. Color pigment
Machine: A Floor Tile Making Machine
|
Technical Parameter XLB-0.50MN550*550*4(Without mould) | |
| Total pressure | 50 Ton |
| Piston size | 550*550 |
| Number of working layer | 4 |
| Piston diameter(mm) | 200 |
| Stroke of piston(mm) | 600 |
| Distance between hot plate(mm) | 125 |
| Unit area pressure of hot plate(Mpa) | 2 |
| Power(KW) | 2.2 |
| Voltage | 380v 50hz |
| Working oil pressure | 16 Mpa |
| Heating mode | Electrical mode |
| Working temperature | 200 |
| Overall size(L*W*H)(mm) | 1800*550*2100 |
| Weight(kg) | 1700 |
| Control mode | Automatic |
Note:
1. Delivery time: In 30 days after deposit.
2. MOQ: 1 SET
3. PAYMENT: 30% Deposit, 70% payment before shipping.
4. Warranty time: 1 year after installation.
Brick Making Machine is mainly for making rubber tiles. It can make 4 pcs 500*500mm rubber tiles in 15 minutes one time. Raw material rubber granules need to be smaller than 24 mesh.
Small Hydraulic Press Small Hydraulic Press Small Hydraulic Press
Common rubber tile size is 500*500mm.
There are also bigger size which is 1000*1000mm.This machine can produce 8 pcs each time.
Thickness of the tiles can be from 15mm to 50mm. Thickness used often is 15mm, 20mm, 25mm and 30mm. Different thickness, vulcanizing time is a little different.
We also have 80 Ton,100 Ton,160Ton tile making machine,
You can chose the size of the machine as your need.

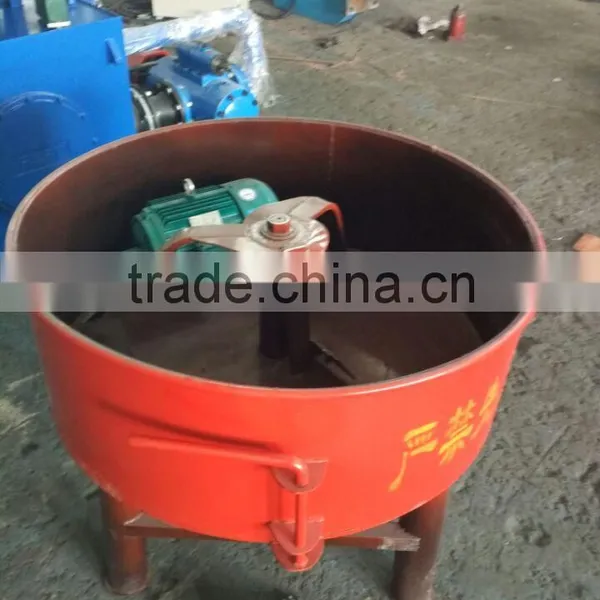

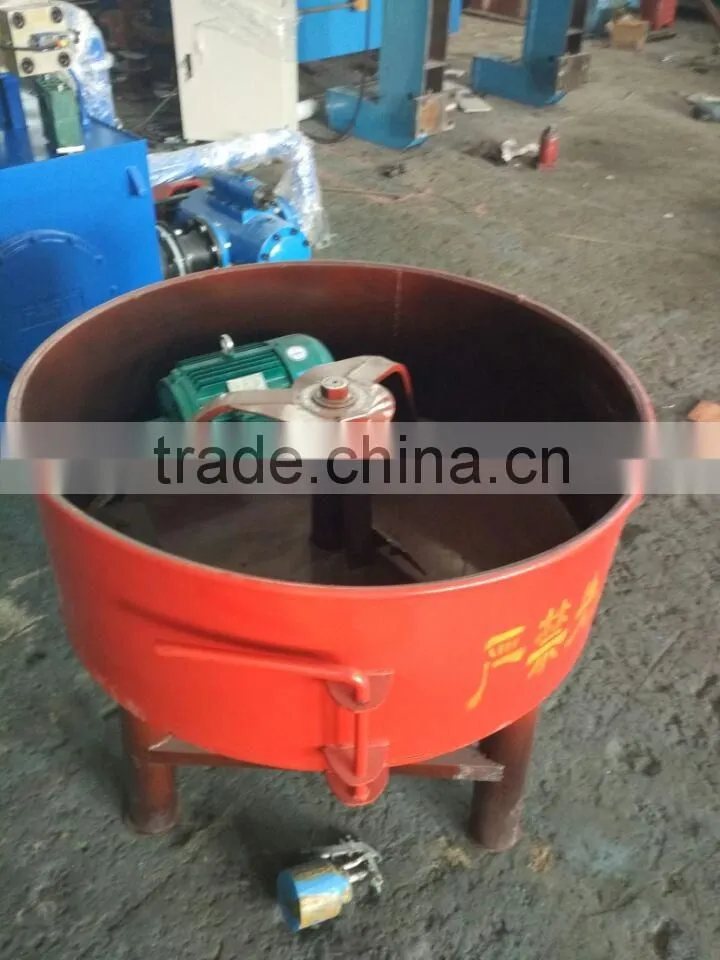

B rubber powder mixing machine
Moulds:
Production: Put rubber granules into mixer. Add glue and color pigment. Mixer will mix them completely. Then put granules after mixing into molds and spread out. Push molds into vulcanizing press. After 10-12 minutes, it can be finished and take out the tiles.
Application:
Rubber tile vulcanizing press is to make rubber granules (from waste tires) into rubber tiles.
This kind of products are used in stadiums, children’s playground, gym, senior center, swimming pool beach, kindergartens, nurseries, parks, stations, shopping malls, office, hotels and so on.
Rubber tiles is with elasticity, high strength, stand wear and tear, antislip, shock proof, insulation, antistatic. Ground covered with rubber tiles can protect people from falling down.
Small Hydraulic Press Small Hydraulic Press Small Hydraulic Press Small Hydraulic Press
If you interested in our products mentioned above. Kindly welcome to our factory for a visit and let us know by return email.
