Specifications
new parts for electric fireplace heater1 CE certification
2 OEM sevice
3 Energy saving
4 compact
New parts for electric fireplace heater
Electric fireplace heater specifications
1.Temperature limiting
2.wide voltage range
3.Dynamic heating up
4.Energy saving
pact
Electric fireplace heater Introduction (heater)
Small heaters designed to prevent condensation and ensure a minimum operating temperature in small enclosures
Electric fireplace heater Technical Data:
Operating voltage |
120-240V AC/DC* (min. 110V, max. 265V) |
Heating element |
PTC resistor, temperature limiting |
Heater body |
aluminium, anodised |
Mounting |
screw fixing |
Fitting position |
variable |
Operating/Storage temperature |
-45 to +70 °C (-49 to +158 °F) |
Operating/Storage humidity |
max. 90 % RH (non-condensing) |
Protection type/Protection class |
IP54 / II (double insulated) |
Approvals |
VDE + UL File No. E150057 |
Note |
other voltages on request |
Operating with voltages below 140V AC/DC reduces heating performance by approx.
10%
Art. No. |
Heating capacity* |
Inrush current max. |
Pre-fuse T (time-delay) |
Surface temperature (approx.) |
Connection |
Weight (approx.) |
01622.0-00 |
5W |
2.0A |
1A |
165°C |
2 x AWG 22 sheathed cable (silicone) |
20g |
01623.0-00 |
9W |
2.5A |
2A |
175°C |
2 x AWG 22 sheathed cable (silicone) |
20g |

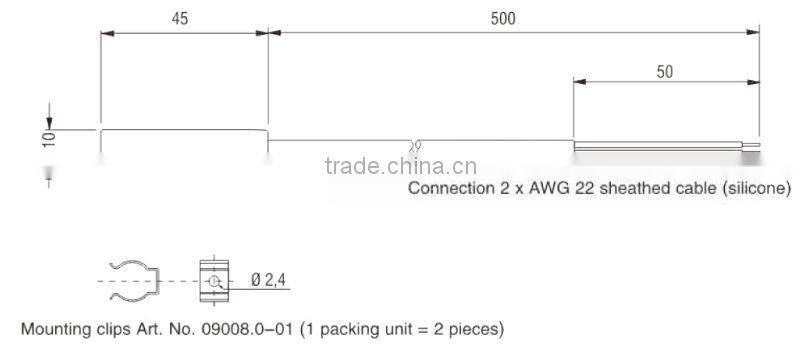

Electric fireplace heater the Drawing:

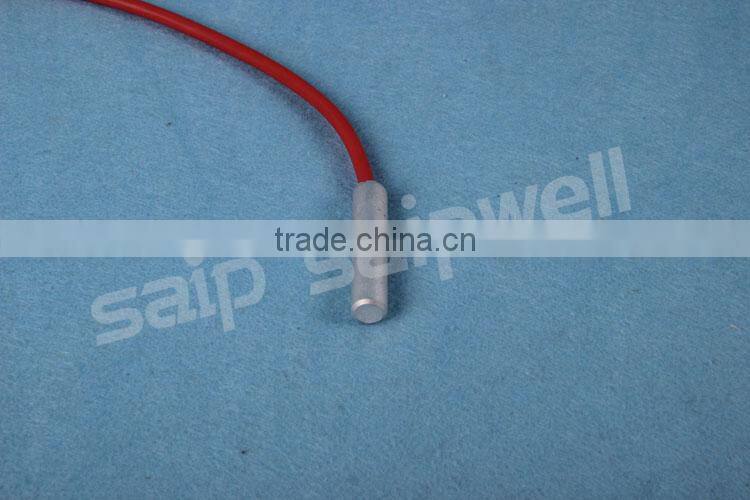

Electric fireplace heater Product details
