Specifications
IP20 Semiconductor Industrial Electric Fan Heater CSL0281. CE
2. OEM service
3. 2 years warrant
4. 10 years manufacturer
SAIP MEANING:
A global quality electric organization
In order to obtain the highest quality all of
Products according to international IEC normative.
SAIP VISION:
To be an enterprise lasting 103 years and beyond
To be an enterprise with a network of 20000 sales personnel and 2000 design engineers
To be the choice brand manager of major worldwide electrical brands
SAIP MISSION: To create products that deliver happiness to everyone
SAIP BUSINESS PRINCIPLE: To conduct business in a simple straightforward manner.
SAIP WORKING PRINCIPLE: To work and live happily

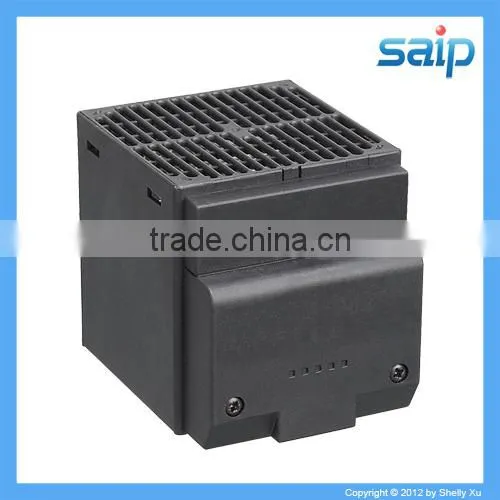

2014 Hot Sale IP20 Semiconductor Industrial Electric Fan Heater CSL028
Product Features:
1. Small, compact design
2. Quiet in operation
3. Dynamic heating up
4. Clip or screw fixing
5. Fan heater prevents formation of condensation and provides an evenly distributed interior air
temperature in enclosures with electric/electronic components. The heater is connected using
the internal terminal connectors The CS 028s small size make it ideal for use in enclosures
where space is at a premium.
Technical Data:
| Heating element | PTC heating element |
| Inrush current max. | 2A at 230VAC, 5A at 120VAC |
| Surface temperature | Max.65°C(149°F) |
| Axial fan, ball bearing | air flow 13.8 m³/h, free flow (service life 40,000h at 40°C) |
| Connection | 2-pole clamp max. 2.5mm², clamping screw torque 0.8Nm max. |
| Casing | plastic according to UL94-0, black |
| Mounting | clip for 35 mm DIN rail, EN 60715 |
| Fitting position | vertical |
| Weight | approx. 0.30kg |
| Operating / Storage temperature | -45 to +70°C (-49 to +158°F) |
| Protection type / Protection class | IP20 / II (double insulated) |
| Note | other voltages on request |
| Art. No. Clip fixing | Art.No. Screw fixing | Operating voltage | Heating capacity | Dimensions | Weight |
| 02700.0-00 | 02800.0-02 | 230VAC, 50/60Hz | 150W | 90X85X111mm | 0.5kg |
| 02701.0-00 | 02811.0-01 | 230VAC, 50/60Hz | 250W | 90X85X111mm | 0.5kg |
| 02700.9-00 | 02810.0-01 | 230VAC, 50/60Hz | 400W | 90X85X111mm | 0.5kg |
| 02701.9-00 | 02800.9-01 | 120VAC, 50/60Hz | 150W | 90X85X111mm | 0.5kg |
| 06021.0-00 | 02811.9-01 | 120VAC, 50/60Hz | 250W | 90X85X111mm | 0.5kg |
| 06022.0-00 | 02810.9-01 | 120VAC, 50/60Hz | 400W | 90X85X111mm | 0.5kg |
*at 20°C (68°F) ambient temperature

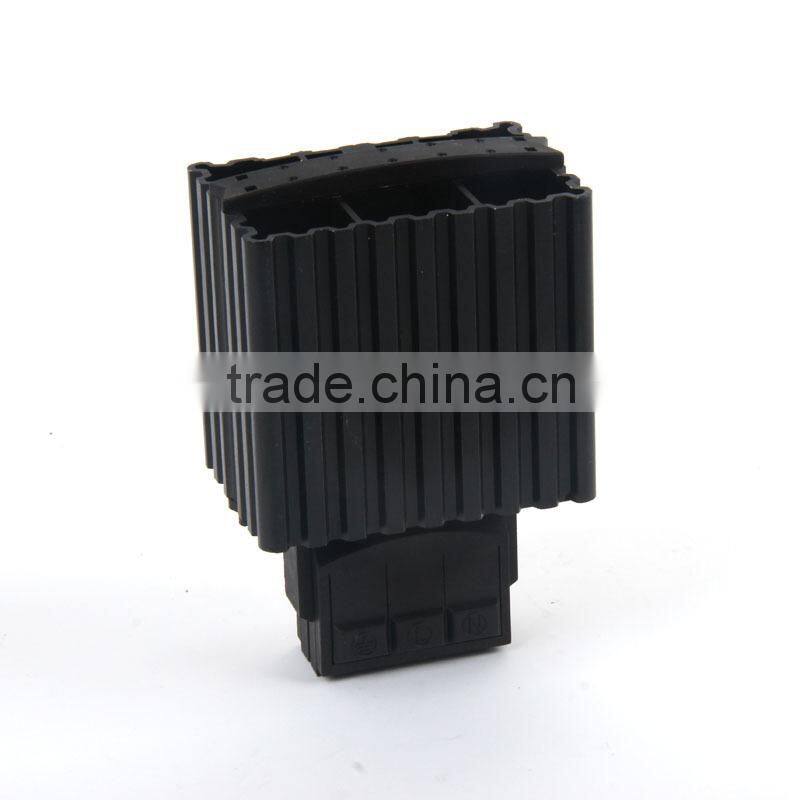

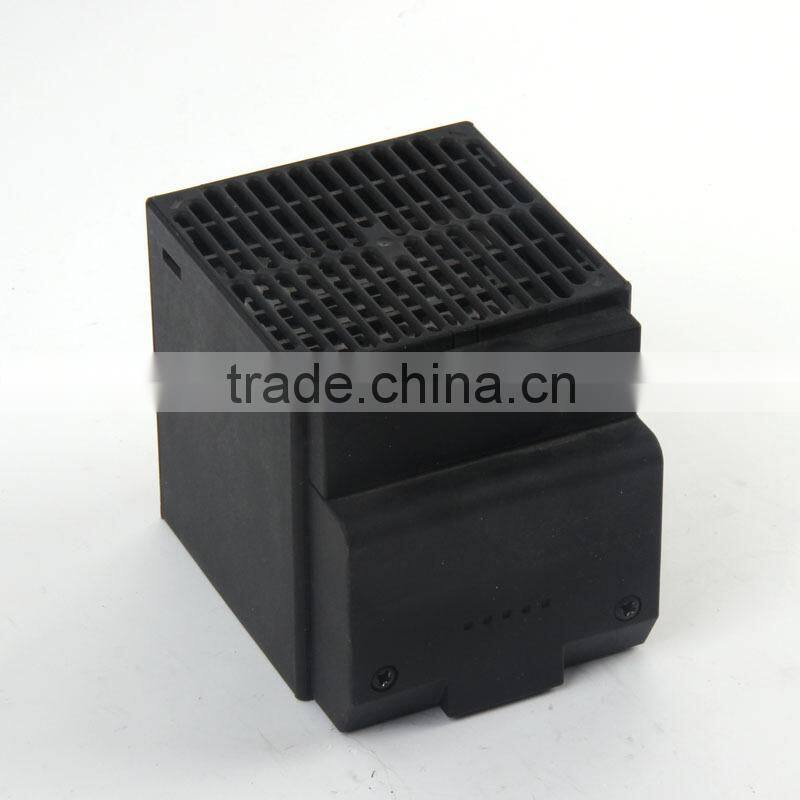

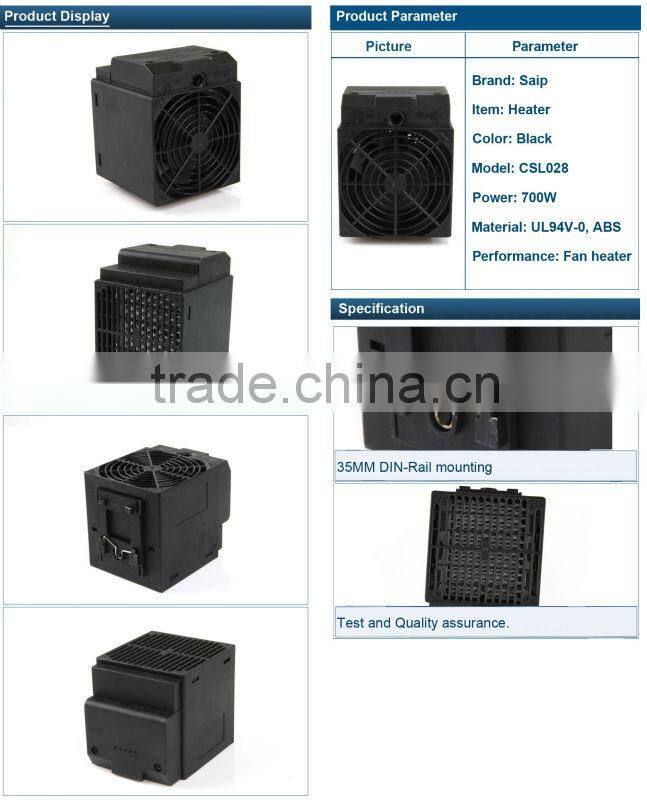

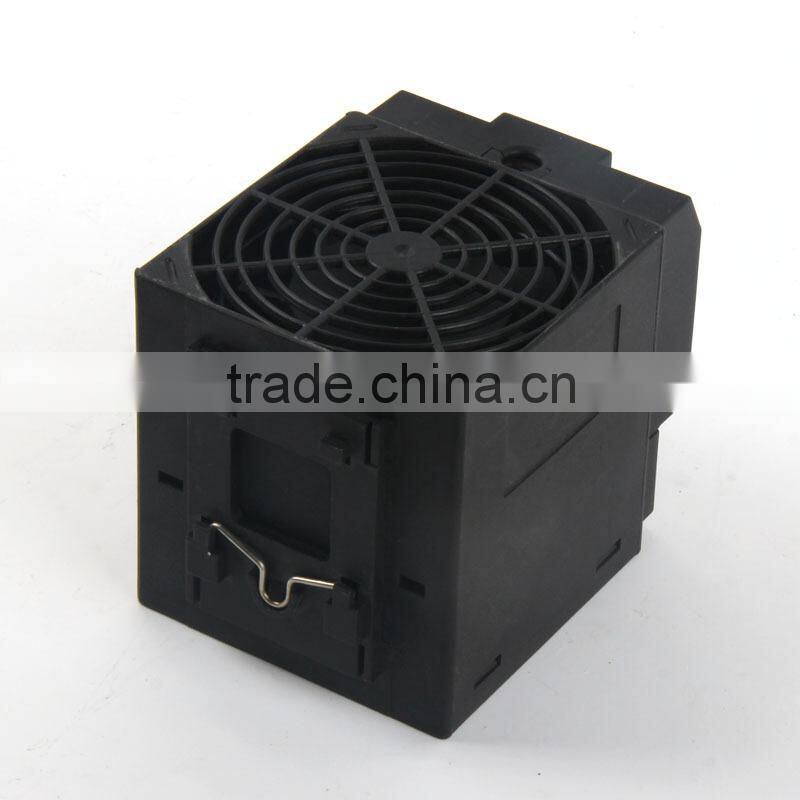

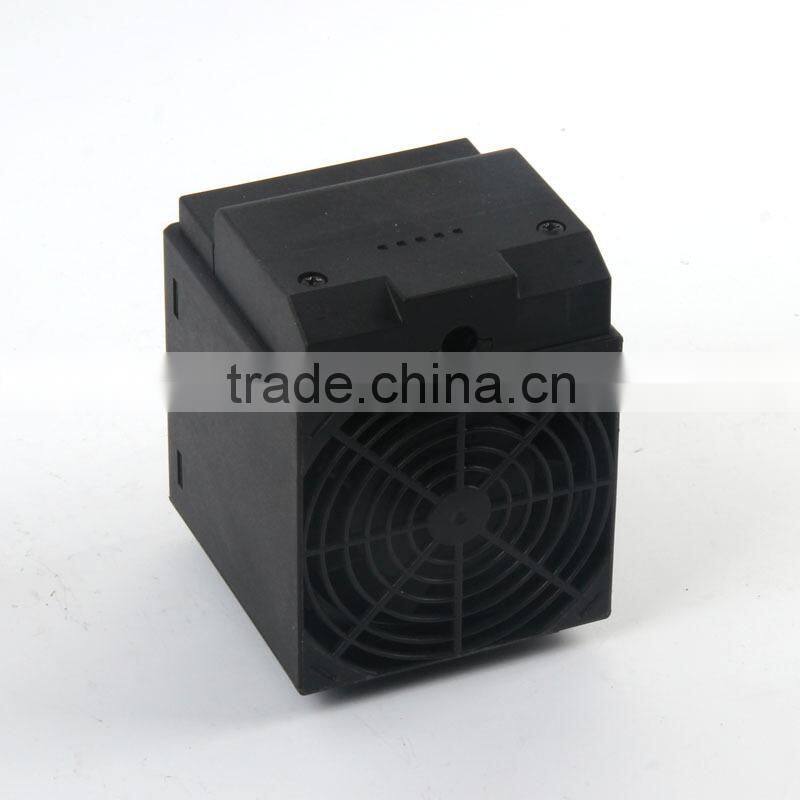

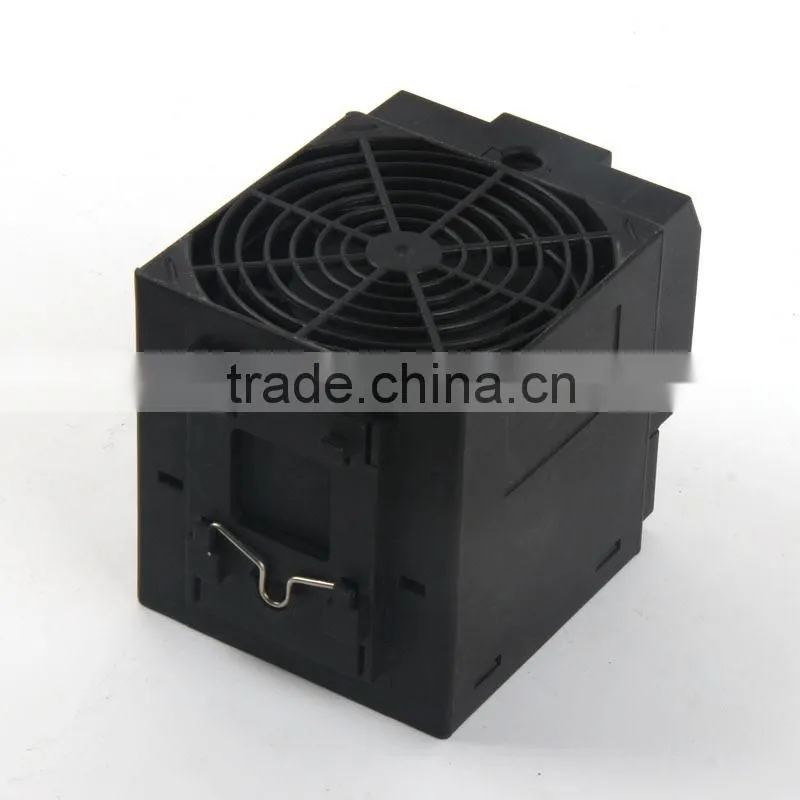

Product Pictures:
Similar Products:
About Our Saip:
Saip Electric Group Co., Ltd (called "Saip" for short) is an enterprise specialized in design, production and sales of electric equipments.
Head office located in the largest manufacturing base of electric equipment of Wenzhou China, which is called "the Electric Equiment Capital of China".
We have 5 specialized branches,over 300 specialized cooperative partners.
Saip,an ISO9001 certificated enterprise.
With 20 years of development history, Zhejiang Saip Electric Co., Ltd. has become a modern enterprise integrating the production,sale with research.
