Specifications
The Newest Mini Panel Fan Filter FF 018 Series 200m3/h1. CE
2. OEM service
3. 2 years warrant
4. 10 years manufacturer
SAIP MEANING:
A global quality electric organization
In order to obtain the highest quality all of
Products according to international IEC normative.
SAIP VISION:
To be an enterprise lasting 103 years and beyond
To be an enterprise with a network of 20000 sales personnel and 2000 design engineers
To be the choice brand manager of major worldwide electrical brands
SAIP MISSION:
To create products that deliver happiness to everyone
SAIP BUSINESS PRINCIPLE:
To conduct business in a simple straightforward manner.
SAIP WORKING PRINCIPLE
To work and live happily
PRODUCTS INTRODUCTION
2014 The Newest Mini Panel Fan Filter FF 018 Series 200m3/h
Product Features:
1. Very low noise
2. Minimal depth in enclosure
3. Functional design
4. Time-saving installation
5. Weather proof and UV resistant
Technical Data:
Axial fan, ball bearing |
service life min.50 000h at 25°C /77°F(65%RH) |
| fan body aluminium, rotor plastic | |
| Connection | 2 wires with pressure clamps 2.5mm², length 100mm |
| Casing (filter fan and exit filter) | plastic according to UL94 V-0, light grey |
| Hood (filter fan and exit filter) | plastic according to UL94 V-0, light grey, weather proof and UV light resistant according to UL746C (f1) |
| Mounting frame | with double-side industrial adhesive band for fixing to the outside of enclosure; certain operating circumstances can make the additional use of screws necessary (see drilling template); included in the delivery of the filter fans is a template for the enclosure cut-out. |
| Filter mat | G4 acc. to DIN EN 779, filtering degree 94% |
| Filter material | synthetic fibre with progressive construction, temperature resistant to 100°C, self-extinguishing class F1; moisture resistant to 100% RH; reusable - cleaning by washing or vacuuming |
| Operating/Storage temperature | -45 to +70°C (-40 to +158°F) |
| Protection type/Protection class | IP54 / I (earthed) |
*Using fine filter mats type F5 increases the protection type to Ip55, but reduces the air volume.
Product Data:
- The self-adhesive seal of the mounting frame prevents dust and water from entering the cabinet.
- Functional design of the intake and exit fan hoods very effectively prevents direct intrusion of falling water and dust. The advantage is that the filter mat does not get so quickly contaminated with dirt and thus does not need to be exchanged so often.
- The air channeling makes the filter fan particularly quiet in operation.
- Functional and modern design enables time-saving assembly and maintenance. EMC versions and other voltages on request.
- The direction of air flow can easily be switched by reversing the axial fan (sizes 1 to 3)
Art. No. |
Operating voltage | Air volume, free flow | Air volume with exit filter | Current consumption | Power consumption | Average noise level (DIN EN ISO4871) | Depth in enclosure | Enclosure cut-out | Weight (approx.) |
| 01800.0-00 | 230VAC, 50Hz | 21m³/h | 16m³/h | 80mA | 13W | 31dB (A) | 45mm | 97 x 97mm + 0.4 | 0.6kg |
| 01801.0-00 | 230VAC, 50Hz | 55m³/h | 42m³/h | 100mA | 15W | 40dB (A) | 58mm | 125 x 125mm + 0.4 | 1.0kg |
| 01802.0-00 | 230VAC, 50Hz | 102m³/h | 68m³/h | 100mA | 15W | 39dB(A) | 86mm | 176 x 176mm + 0.4 | 1.3kg |
| 01800.0-01 | 120VAC, 60Hz | 24m³/h | 18m³/h | 160mA | 13W | 31dB (A) | 45mm | 97 x 97mm + 0.4 | 0.6kg |
| 01801.0-01 | 120VAC, 60Hz | 63m³/h | 48m³/h | 180mA | 15W | 40dB (A) | 58mm | 125 x 125mm + 0.4 | 1.0kg |
| 01802.0-01 | 120VAC, 60Hz | 117m³/h | 78m³/h | 180mA | 15W | 39dB (A) | 86mm | 176 x 176mm + 0.4 | 1.3kg |

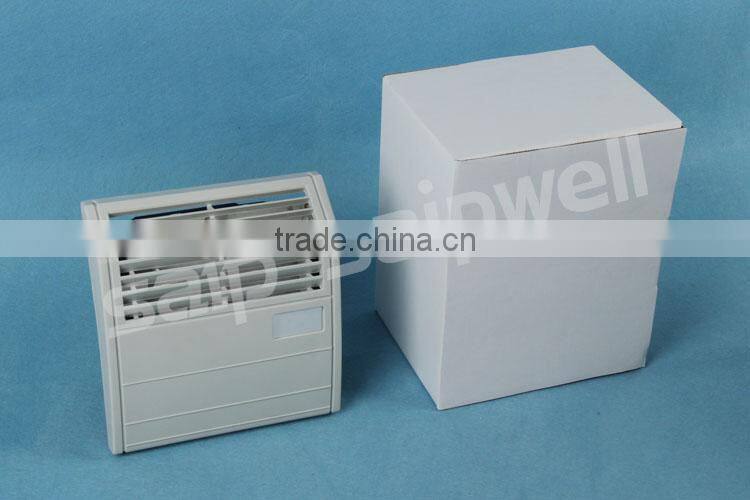

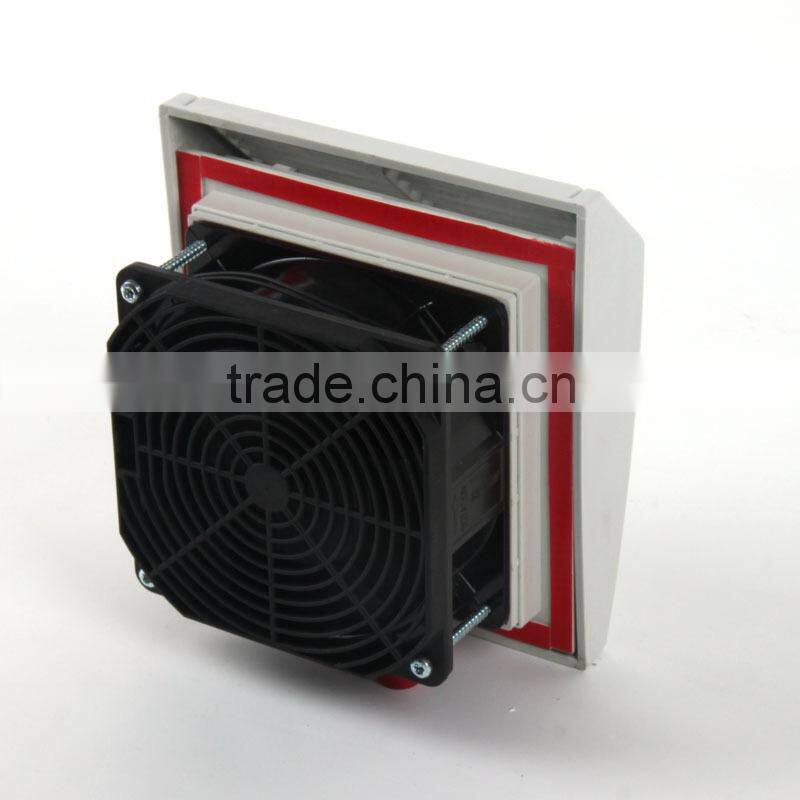

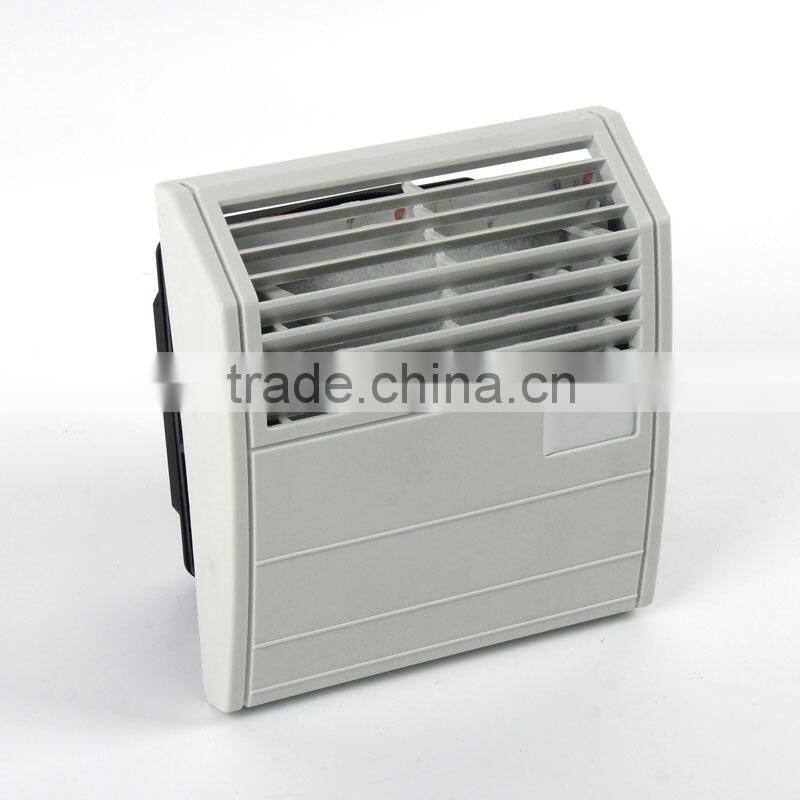

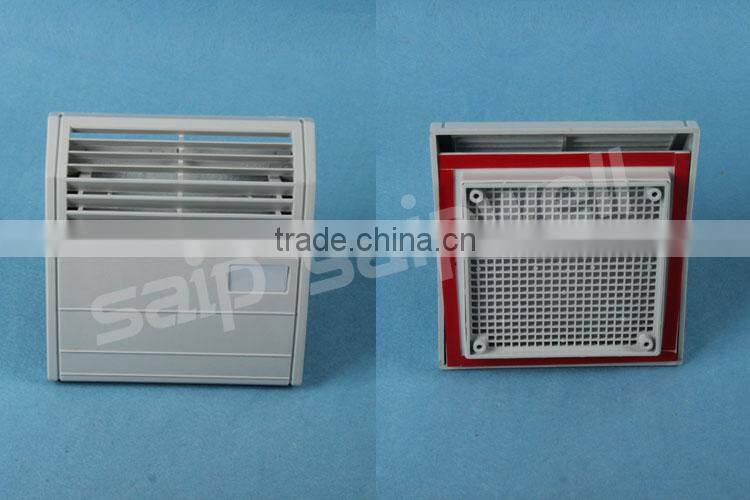

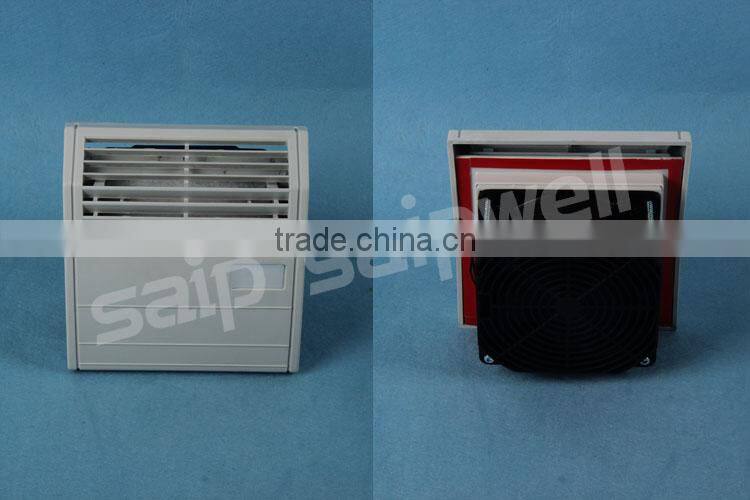

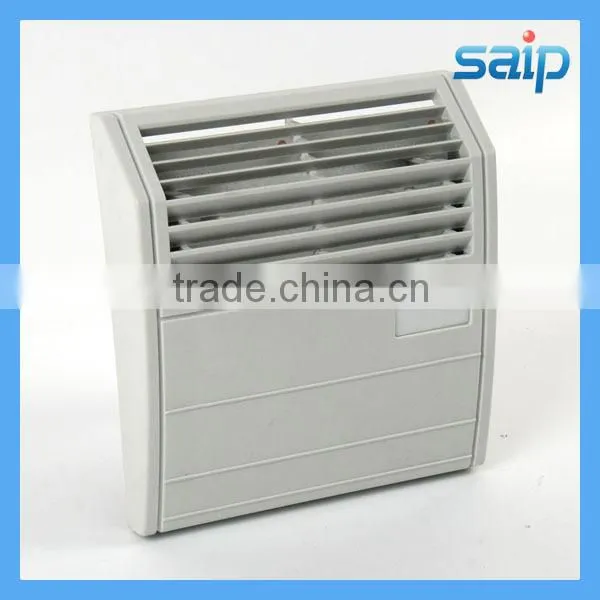

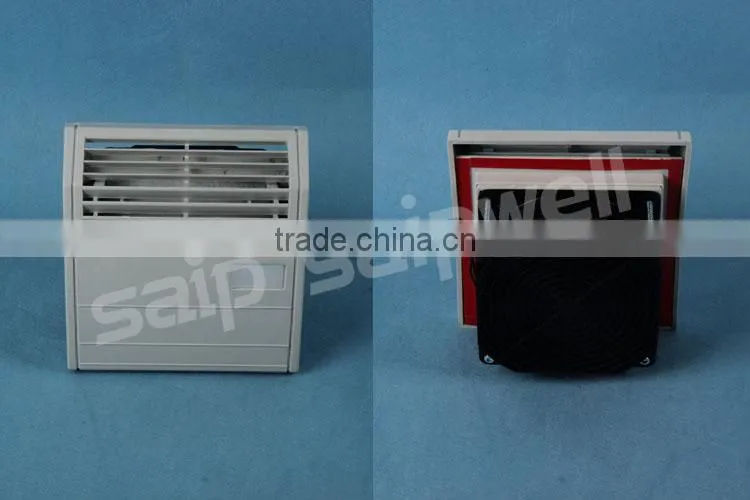

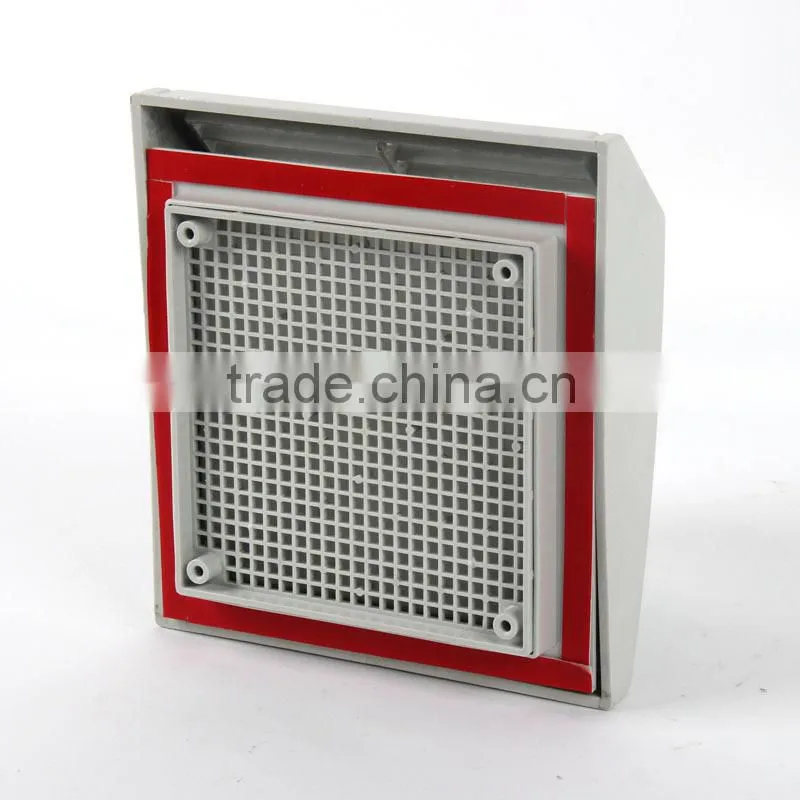

Product Pictures:
Contact us:
Saip Electric Group Company Limited
ADD:Liushi Industrial Zone,Yueqing,Zhejiang,China 325604
Mob: 0086-18067787960
Fax: 0086-577-62760731
QQ: 2775527780
Skype: saip553saip
For more details , feel free to contact me,thanks!---Attn:Saip/Snow(Ms.)
