Specifications
Battery powered camping heater 14008.0-001 CE certification
2 OEM sevice
3 Energy saving
4 Compact
Battery powered camping heater 14008.0-00
Battery powered camping heater Specifications
1.Dynamic heating up
2.Energy saving
3.Wide voltage range
4.Temperature Limiting
The heaters are used in enclosures where condensation is to be prevented or the temperature may not fall below a minimum value. In this way corrosion is avoided and an even temperature is ensured.
Battery powered camping heater technical Data:
| Operating voltage | 120-240V AC/DC* (min. 110V, max. 265V) |
| Heating element | PTC resistor, temperature limiting |
| Heater body | extruded aluminium profile, anodised |
| Connection | 3 pressure clamps for stranded wire 0.5-1.5mm² (with wire end ferrule) and rigid wire 0.5- 2.5mm² |
| Connection casing | plastic according to UL94 V-0, black |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Fitting position | vertical airflow (air outlet up, connection on bottom) |
| Operating/Storage temperature | -45 to +70 °C (-49 to +158 °F) |
| Operating / Storage humidity | max. 90 % RH (non-condensing) |
| Protection type/Protection class | IP20 / I (earthed) |
| Approvals | VDE + UL File No. E150057 |
| Accessoires | screw fixing, Art. No. 09024.0-00 (1 packing unit = 2 pieces) |
Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.
| Art. No. | Heating capacity* | Inrush current max. | Pre-fuse T (time-delay) | Length (L) | Weight (approx.) |
| 14000.0-00 | 15W | 1.5A | 1A | 65mm | 0.3kg |
| 14001.0-00 | 30W | 3.0A | 2.5A | 65mm | 0.3kg |
| 14003.0-00 | 45W | 3.5A | 2.5A | 65mm | 0.3kg |
| 14005.0-00 | 60W | 2.5A | 2.5A | 140mm | 0.4kg |
| 14006.0-00 | 75W | 4.0A | 4A | 140mm | 0.5kg |
| 14007.0-00 | 100W | 4.5A | 4A | 140mm | 0.5kg |
| 14008.0-00 | 150W | 9.0A | 6.3A | 220mm | 0.7kg |

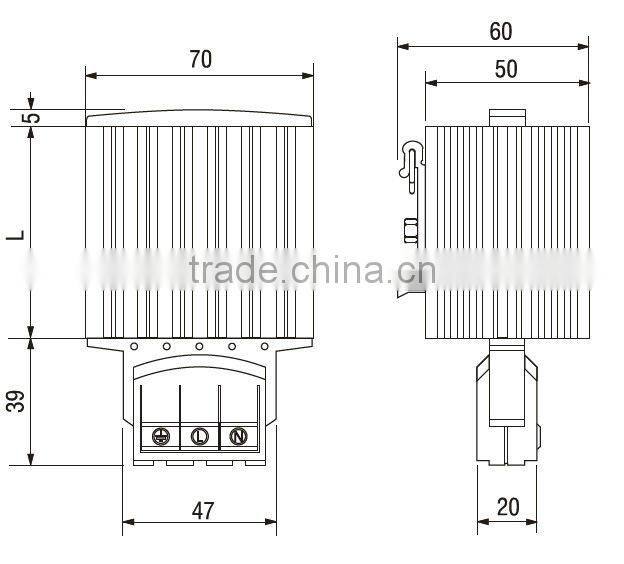

Battery powered camping heater the Drawing:

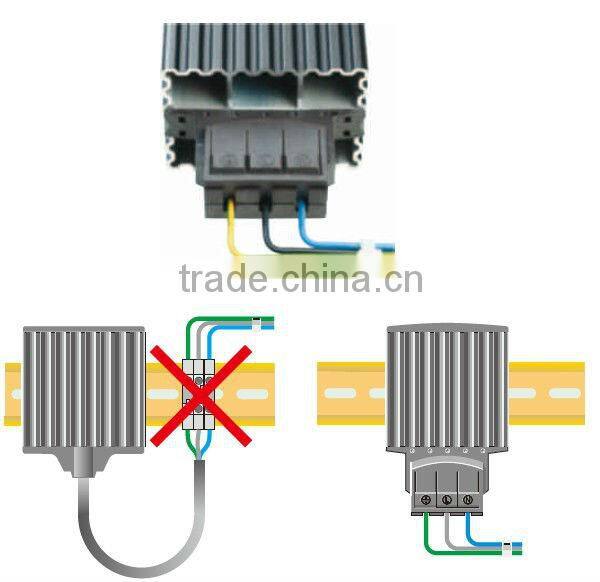

Battery powered camping heater example of connection:

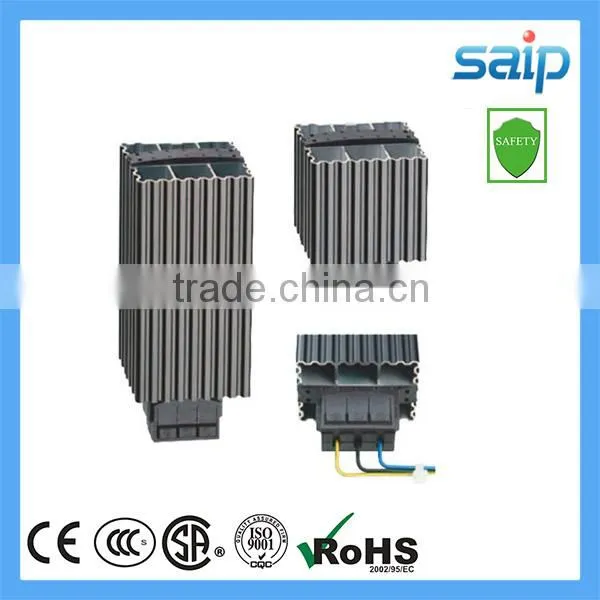

Battery powered camping heater product details
