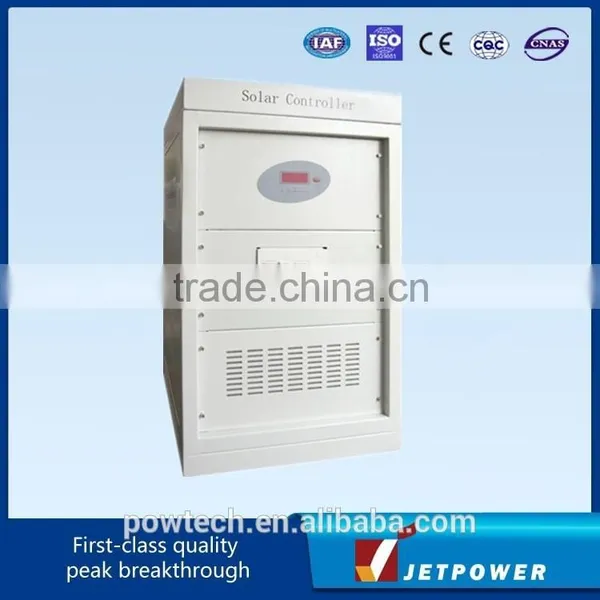

384Vdc Solar Controller With Big Current 300A Controller Standlone TYPE

Name: 384Vdc Solar Controller With Big Current 300A Controller Standlone TYPE
Brand: JETPOWER
SKU: 129446595
Availability: InStock

US$ 100 - 200 MOQ: 1 Piece

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

JETPOWER

Model Number:

SC384

Qingdao Powtech Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name JETPOWER

Model Number SC384

Application Solar System Controller

Rated Voltage Other, 384

Maximum Current 300A

Product Description

384V DC input Solar controller standlone

product features:

1.384V

2.CE,ISO,CCC

3.customized

Technical parameters

Voltage		SC384
Rated current(A)		300A
Max.PV array open circuit voltage(V)		880
PV array path (Max.)		5
Max.current each PV array(A)		60
Storage battery over discharge protection value(V)		345
Storage battery over discharge recovery value(V)		384
Floating voltage(V)		438
Over charge protection voltage(V)		460
Charge recovery voltage(V)		422
Un-load current(mA)		<1%( Rated current)
Voltage drop	PV array and storage battery(V)	1.35
	Storage battery and load(V)	0.1
Temperature compensation factor (optional)		-3~-7mV/℃(Every Battery Cell)
Ambient temperature(℃)		-20~+50
Relative humidity		<95% (Non-condensing)
Altitude(m)		≤5000(Capacity decreased as GB/3859.2 when altitude higher than 1000m)
Protection degree		IP20
Protection function		Protective function of PV array counter connection,storage battery counter connection,counter charge at night,storage battery overcharge,storage battery over discharge,output over load,output short circuit.
Size(WDH mm)		440440660
Weight(Kg)		40
