Home > Products > Inverter > 4kw PV inverter single phase solar inverter(off gird inverter) 110V dc to 220Vac

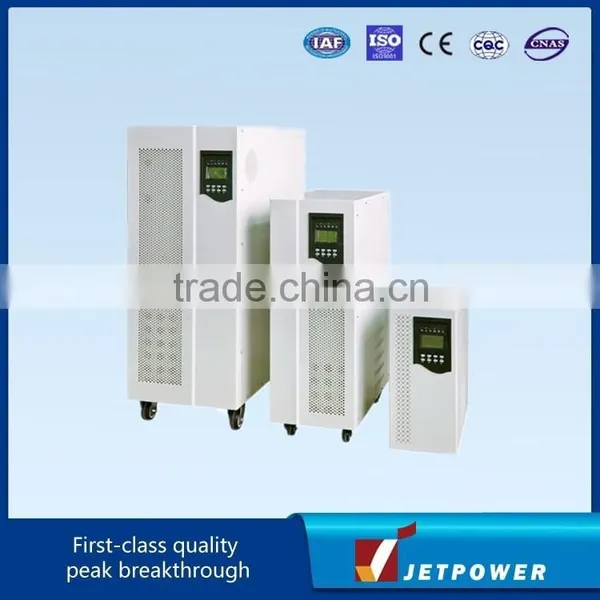

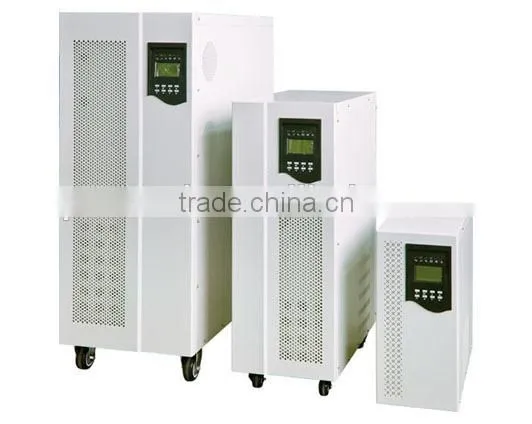

4kw PV inverter single phase solar inverter(off gird inverter) 110V dc to 220Vac
- 300 Unit / Units per Month
- Qingdao port
- T/T
- electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
- 45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
- EM15-G3 General used Vector control Frequency inverter(3 phase )
- EMHEATER soft starter
- EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
- Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
Place of Origin: | Shandong, China | Brand Name: | JETPOWER | Model Number: | SI 110-4K |
Output Power: | 1 - 200KW | Output Type: | Single | Size: | 380*700*1015mm |
Weight: | 150KG | Input Voltage: | 110VDC | Output Voltage: | 220VAC |
Type: | DC/AC Inverters | Output Frequency: | 50/60HZ | Output Current: | 36.4A |
Product Description
Product Description
(1) High performance DSP control
(2) Comprehensive protection: overload, short circuit, reverse protection, under voltage,over voltage and over temperature
(3) LED / LCD display (optional)
(4) Remote communication: RS232
(5) True sine wave output, low THD, high inverter efficiency, stable output voltage and good EMI
(6) High reliability, high efficiency
Model | SI 110-3K | SI 110-4K | SI 110-5K | SI 110-8K | SI 110-10K | |
DC input | Rated capacity | 3 KW | 4 KW | 5 KW | 8 KW | 10 KW |
Rated DC voltage (VDC) | 110 | |||||
DC input range (VDC) | 94~150 | |||||
AC bypass | AC bypass range (VAC) | 220±15% | ||||
Transfer time (mS) | ≤4ms | |||||
AC output | Rated voltage(VAC) | 220V | ||||
Frequency (Hz) | 50/60Hz | |||||
Overload | 120%1min,150%10ms | |||||
Voltage regulation(VAC) | 220±1% | |||||
Frequency regulation (Hz) | 50/60±0.04 | |||||
THD | 3%(linear load) | |||||
Dynamic response (0-100%) | ≤20ms | |||||
Power factor | 0.8 | |||||
Inverter efficiency | 92% | |||||
Crest factor ) | 3:1 | |||||
System | Continuous working | Continuous working | ||||
Noise (dB, 1m) | ≤50 | |||||
Ambient | -10~+45℃ | |||||
Altitude | ≤4000m (Reduce the capacity when altitude over 1000metres) | |||||
Communication port | RS232, RS485, SNMP card, dry contact (optional) | |||||
Sizes | Tower | 210*570*550 | 305*595*870 | 380*700*1015 |
company certifications
1.Major manufacturer,Competitive price
2. ISO9001:2008 certification
3. 20 years' production experience
4. Turn-key solution for your transmission line
1. Abroad site installation & training available any time
2. Best prices compared to same configuration
3. Customized product available
4. Good after-sale response
5. Small order accepted
6. Excellent workmanship
