48V 1KVA Inverter for Telecom Use/low Frequency UPS Inverter

Qingdao Powtech Electronics Co., Ltd.
48V 1KVA Inverter for Telecom Use/low Frequency UPS Inverter thumbnail-1
48V 1KVA Inverter for Telecom Use/low Frequency UPS Inverter thumbnail-2
48V 1KVA Inverter for Telecom Use/low Frequency UPS Inverter photo-1
48V 1KVA Inverter for Telecom Use/low Frequency UPS Inverter photo-2
US$ 300 - 400 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
POWTECH
Model Number:
TI- 1000
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name POWTECH
Model Number TI- 1000
Output Power 1 - 200KW
Output Type Single
Size 450*430*90
Weight 15KG
Input Voltage 48VVdc
Output Voltage 115Vac/230V
Type DC/AC Inverters
Output Frequency 50/60Hz
Output Current 3.04V/6.08A

48V 1KVA inverter for telecom use/low frequency UPS inverter

Product Description

48V 1KVA inverter for telecom use/low frequency UPS inverter

Features:

l  48Vdc input reduces battery load and provide standardize output time

l  Available AC input reduces battery use

l  Direct current filter prevent interference to telecommunication system

l  Friendly LCD display

l  19’Rack mount design for easy integration

l  Smart interface RS 232 standard

l  Remote control and schedule switch on/off

l  Optional RS485,USB,SNMP interface

l  True sine wave output

l  With isolation transformer

Spec.



Model TI- 1000TI-2000TI- 3000TI- 5000
StructureLow Frequency SPWM
Capacity1000VA(700W)2000VA(1400W)3000VA(2100W)5000VA(3125W)
DC InputNormal voltage-48Vdc
Voltage range-40~-57Vdc
Wide band noise current<10%
Psophometric noise current<2‰
AC Input (Optional)Normal voltage115V/230Vac230Vac
Voltage range80~135Vac160~270Vac
160~270Vac
Frequency range50/60Hz±5%
OutputNormal voltage115V/230Vac230Vac
Voltage Stability±2%(Typical)
Frequency stability50/60±0.5%
Wave styleSine Wave
Overload Capacity110~150% for 20sec;>150% Protect at once
IndicatorsFront panel LED Line Normal, bypass output, inverter output, overload , abnormity
Audible AlarmsBattery low, overload, abnormity
CommunicationsIntelligent InterfaceRS232 and contact closure signal or RS485
Compatible O/SWindows XP/NT,Linux,Novell,Unix,SNMP,HTTP
Safety Meet UL 1012,EN 60950,EN 50091-1-1
EMIMeet FCC Part 15,Class A
EN 55022,Class A/EN 50091-2,Class A
EMCIEC 801-1,2,3,4,5/EN 61000-4-1,2,3,4,5
EnvironmentAmbient Operation3000 Meters Max,0~40℃,0~95% Humidity(Non-Condensing)
Audible noise(1 meter from surface)<45dB<60dB
PhysicalDimension (D×W×H)mm450×430×90450×430×135
Net Weight(kg)15182338.3

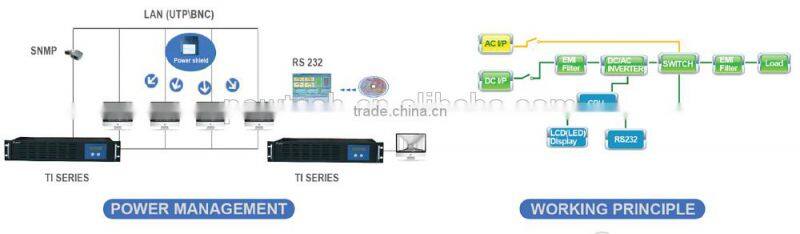

Working principle

  48V 1KVA inverter for telecom use/low frequency UPS inverter

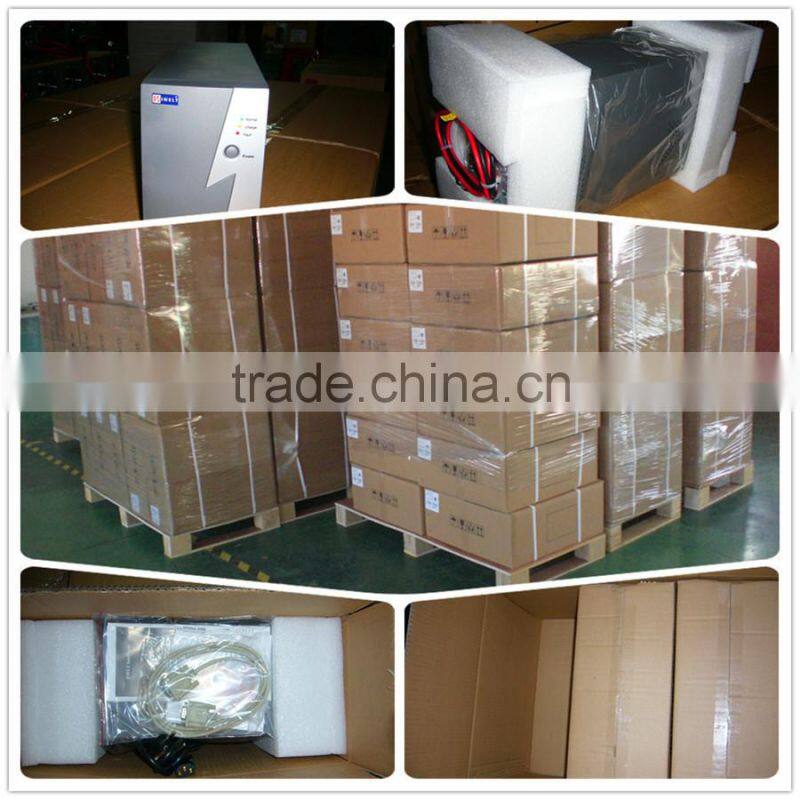

Packaging & Shipping



48V 1KVA inverter for telecom use/low frequency UPS inverter

Shipping

 48V 1KVA inverter for telecom use/low frequency UPS inverter

Why choose us



1.Major manufacturer,Competitive price



2. ISO9001:2008 certification



3. 20 years' production experience



4. Turn-key solution for your transmission line

Our Services



1. Abroad site installation & training available any time



2. Best prices compared to same configuration



3. Customized product available



4. Good after-sales response



5. Small order accepted



6. Excellent workmanship
