Specifications

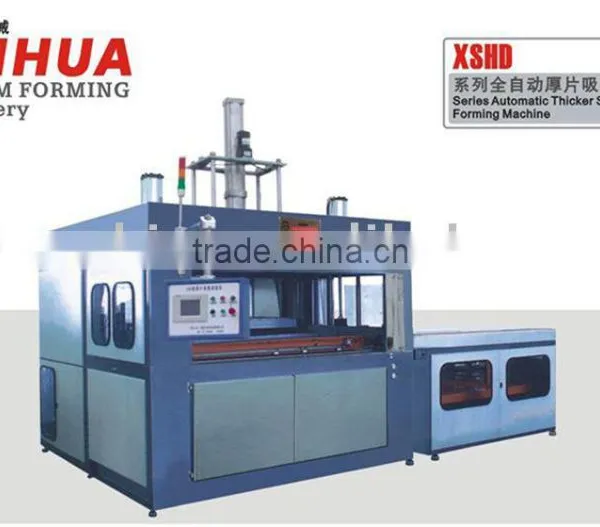

Recreational vehicle making machine produce recreational vehicle,automotive interiors;jacuzzis, motorcycle decorater board etc..The Series of XSHD Automatic Computerized Thicker Sheet Vacuum Forming Machine adopts foreign leading technology, infrared ceramic heater and the whole system was controlled by Siemens PLC, it can carry sheet and take out finished product automatically; reliable performance and easy operation. It has been obtained six national patents. It is suitable for thermoforming ABS,PS,PVC,PE,PP,PC,PMMA plastic board and plastic sheet etc., which can produce the Hot Tub, Recreational Vehicle, Automotive Interiors;Jacuzzis, Motorcycle decorater board, The shell of eclectic scooter, The shell of medical apparatus, Refrigeratory Cabinet, The parts of bathroom, Bathtub, Lantern etc...
Main Technical Parameters:
Model: XSHD2010/6
Max. Forming Area: 2000*1000mm
Max. Height of Mold: 650mm
Power of Oven: Approx.83.2kw (Upper Oven) Approx.51.2kw (Lower Oven)
Overall Dimensions: 3400*4300*3800mm
Weight: 7700kg
Option:
1. Hydraulic pressure system.
2. Heating elements: Short wave emitter, its advantage is Heat uniformly, penetrate strongly, reflect best and heating quickly.
3. Controlled and adjusted the heater temperature by temperature module.
