Gable Top Carton Filling Machine for Beverage 001

Specifications

 gable top carton filling machine is a kind of small type equipment in low automation degree and small amount of output. The equipments are with small footprint, in low power consumption, and easily operated and maintained; the price of them is comparatively low, which is ideal equipment for small and medium-sized company who want to produce high grade gable top carton products.

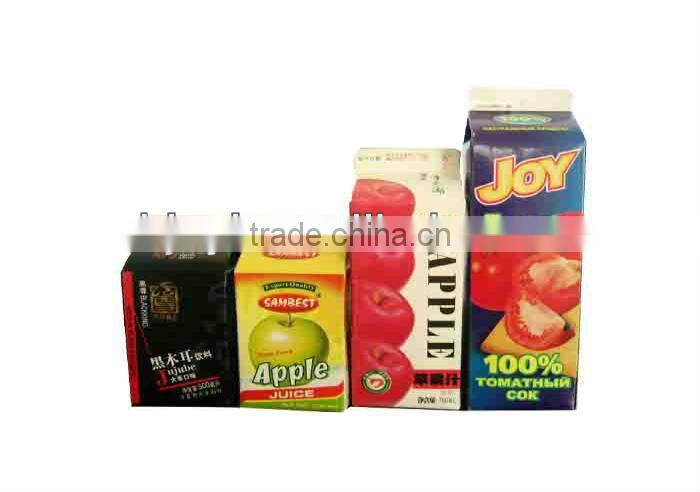

This type of machine suits to fill liquids like juice, fruit vinegar beverage, yogurt, milk beverage, corn beverage, tea beverage, etc. All of the liquid mentioned above can be filled in hot temperature (85-92°C) and kept in normal temperature with shelf period in 3 months to 12 months according to different products.

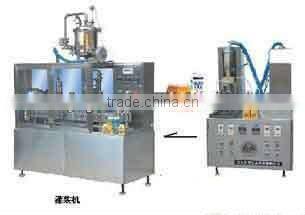

this type is composed by two separate machines: carton formation machine and filling machine.

Carton formation machine: Purchased Carton→ manually Put on the carton→ Bottom Heating→ Pressure Molding and Sealing→ Top Open Carton

Top Open Carton→ manually Put on the carton—Filling→ Top Heating→ Sealing—data printing

The operation of filling machine is automatically controlled by computer program; others are controlled by electric apparatus. The whole progress is controlled by PLC, needs 3 persons to operate.

Technical parameter:

Capacity: 2200—2000ml, which can be filled in the same machine

Output: 800-1200 boxes/hour

Packing material: carton with aluminum-foil bottom size 95mm*95mm, 70mm*70mm, 57mm*57mm (only one to choose)

Overall Power: 22KW (two phases of power electricity)

Size :( L*W*H, m):

Box-making machine: 1.24*0.84*1.50m

Filling machine: 2.0*0.85*2.6m

Compressed air Pressure: 1.0-1.4Mpa

Flow rate: 1.4-2M3/min£¬without oil, water and dust

Cooling water Flow volume: 40L/ min Temperature ≤15°C

Net Weight: 1100kg, (box formation machine: 300kg, filling machine: 800kg)

Installation Requirement Cement, floor tile, plastic ground, any one is OK. Do not need to make angle.
