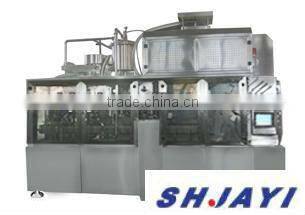

Gable Top Carton Filling Machine for Beverage 004
- shanghai
- T/T Money Gram Credit Card
You May Like
Product Details
| Condition | New | Application | Beverage | |
| Packaging Type | Cartons, Case | Packaging Material | Other, 5 layers(PE film+basic cardboard+ basic cardboard+aluminium foil+PE f | |
| Automatic Grade | Semi-Automatic | Driven Type | Pneumatic | |
| Voltage | 380V | Power | 22kw | |
| Place of Origin | Shanghai, China | Brand Name | shjayi | |
| Model Number | 004 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
we are special for gable top carton filling machine (liquid filling).
Process Flow:
Purchased Carton→ Bottom Preformed →Bottom Molding →Capping→Hot Filling → Top Preformed → Top Molding→ Seal → Print date → Gable Top Carton Products→ (Ladle-to Ladle→Water Spray Cooling→Finished Goods→normal storage)
The whole process is automatically controlled by computer program,only need one person to operate.
Production Varieties:

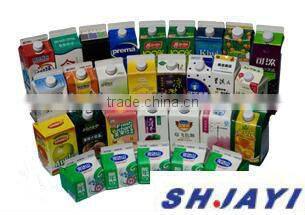

All kinds of fruit and vegetable juice beverage, milk beverage, tea beverage, cereal beverage, fruit vinegar juice, detergent, sake, etc.
1,Packing capacity:500,750,1000ml,which can be filled in the same machine
2,Production quantity:2200 Boxes/hour(by 500ml)
3,Box material:B type carton with aluminium foil, bottom size 70mm*70mm
4,Cap:with cap & without cap, two ways to choose
5,Sehlf life:3-12 months under normal condition
6,Filling temperature:80-94°C
7,Power rate for whole set:23KW
8,Compressed air: Pressure:1.0-1.4Mpa, Flow rate:1.4-2M3/min,without oil, water & dust
9,Cooling water:Flow volume:≥40L/ min Temperature:≤15°C
10,Aspect Size:(Length*Width*Height)3.7*1.6*2.8m
11,Machine weight:3500KG
12,Installation Requirement:Cement, floor tile, plastic ground, any one is OK. Do not need to make angle.
Fruit and vegetable juice production line for gable top carton
1. process flow:
2. machine technics
3. Applied products:
various fruit and vegetable juice beverage, fruit vinegar beverage, yoghurt, cereal and corn juice beverage, such products via hot filling.
4. Product character:
beautiful appearance, high grade, easy drinking, package material environmental protection. Suitable for supermarket, catering and hotel sales.
Dairy beverage production line for gable top carton
1. process flow:
2. machine technics
3. Applied products:
various dairy beverage, flavoured yoghourt, rice milk, corn juice such products needed to be hot filled.
4. Product characther:
beautiful appearance, high grade, easy drinking, package material environmental protection. Suitable for supermarket, catering and hotel sales.
Yoghourt production line for gable top carton
1. process flow:

3. Applied products:
ferment yoghourt, ferment yoghourt beverage, fresh juice etc.
4. Product character:
beautiful appearance, high grade, easy drinking, package material environmental protection. Suitable for supermarket, catering and hotel sales.
Non dairy cream production line for gable top carton
cess flow:


3. Applied products:
non dairy cream, man-made cream.
4. Product character:
beautiful appearance, high grade, easy drinking, package material environmental protection.
