High Quality and Long Durability Cable Yellow / Green 28 mm Flexible Multi-thread

FOB Price

US$ 0.1 - 9.89 / Kilometer

15 Kilometers(Min. Order)

Port qingdao port
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	taifa
Model Number	ground wire	Type	Insulated
Application	Other, lighting ,building	Conductor Material	Copper
Conductor Type	Stranded	Insulation Material	PVC

Product Description

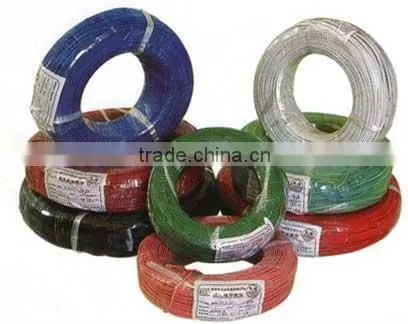

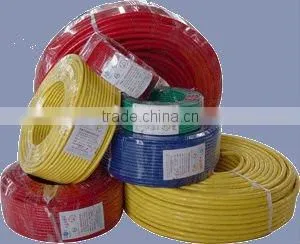

high quality and long durability cable yellow / green 28 mm Flexible multi-thread

Aluminum or Copper conductor
300V/500V,450V/750V,0.6/1KV Wire
IEC227,JB8734.15-19984

Single or Multi Cores Copper Conductor PVC Wire(P/F Cable)

1.Standards
The products adopt GB 5023.11997450/750V or below PVC Wire(P/F Cable)JB 8734.15-1998450/750V or under PVC insulated cables,electric wires and flexible wiresand Q/ZEL 02-2002Piastic insulated electric wires and cables.GB 5023.17-1997 is identical to IEC227,and type are same as the stipulation of IEC

2.Products

Type	Name	Laying place and requirement	Long term working temperature
227IEC01/05 BV BLV	Copper conductor PVC insulated wires	Fixed laid indoors,conduits etc.	70
227IEC01/05 BV BLV	Aluminum Conductor PVC insulated wires	Fixed laid indoors,conduits etc.	70
227IEC07 BV-90	Heat resistant copper conductor PVC insulated wires at 90	Mainly be laid at the places of high temperature environment and can be laid indoors,conduits.	90
BVR	Copper conductor PVC insulated flexible wire	Be for laying permanent place where flexible required	70
227IEC10 BW	Copper conductor PVC insulated PVC sheathed round wires	Fixed laid,fit for the places with high mechanical protection and moisture place.Can be laid in the air or underground.	70
BLW	Aluminum conductor PVC insulated PVC sheathed round wires
BWB	Copper conductor PVC insulated PVC Sheathed flat wires
BLWB	Aluminum conductor PVC insulated sheathed flat wires
227IEC02RV 227IEC06RV	Copper conductor PVC insulated flexible connector	Mainly used at middle and linht stylemoving electronics,home appliances,power and lighting and the places where flexible required.	70
227IECC42 RVB	Copper conductor PVC insualted flat flexible connector
RVS	Copper conductor PVC insulated flexible twisting connector wire
227IEC52 RW 227IEC53 RW	Copper conductor PVC insulated PVC sheated round flexible connector(light and common type)

Comprehensive Data of BV Wire

Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20	Min insulated resistance at 70MΩ/km	Weight Kg/km
0.5	1/0.80	0.6	2.4	36.0	0.015	8.1
0.75	1./0.97	0.6	2.6	24.5	0.012	10.6
1	1/1.13	0.6	2.8	18.1	0.011	13.2

Comprehensive Data table of BV BLV Type PVC Wire(P/F)

Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20		Min insulated resistance at 70MΩ/km	Weight Kg/km
Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Cu	Al	Min insulated resistance at 70MΩ/km	Cu	Al
1.5	1/1.38	0.7	3.3	12.1	-	0.011	19.2	-
1.5	7/0.52	0.7	3.5	12.1	-	0.010	20.6	-
2.5	1/1.78	0.8	3.9	7.41	11.8	0.010	30.8	15.0
4	1/2.25	0.8	4.4	4.61	7.39	0.0085	45.5	21.0
6	1/2.76	0.8	4.9	3.08	4.91	0.0070	65.0	29.0
10	7/1.35	1.0	7.0	1.83	3.08	0.0065	110.0	52.0
16	7/1.70	1.0	8.0	1.15	1.91	0.0050	170.0	70.0
25	7/2.14	1.2	10.0	0.727	1.20	0.0050	270.0	110.0
35	7/2.52	1.2	11.5	0.524	0.868	0.0040	364.0	150.0
50	19/1.78	1.4	13.0	0.387	0.641	0.0045	500.0	200.0
70	19/2.14	1.4	15.0	0.268	0.443	0.0035	688.0	269.0
95	19/2.52	1.6	17.5	0.193	0.320	0.0035	953.0	360.0
120	37/2.03	1.6	19.0	0.153	0.253	0.0032	1168.0	449.0
150	37/2.25	1.8	21.0	0.124	0.206	0.0032	1466.0	551.0
185	37/2.52	2.0	32.5	0.099	0.164	0.0032	1808.0	668.0
