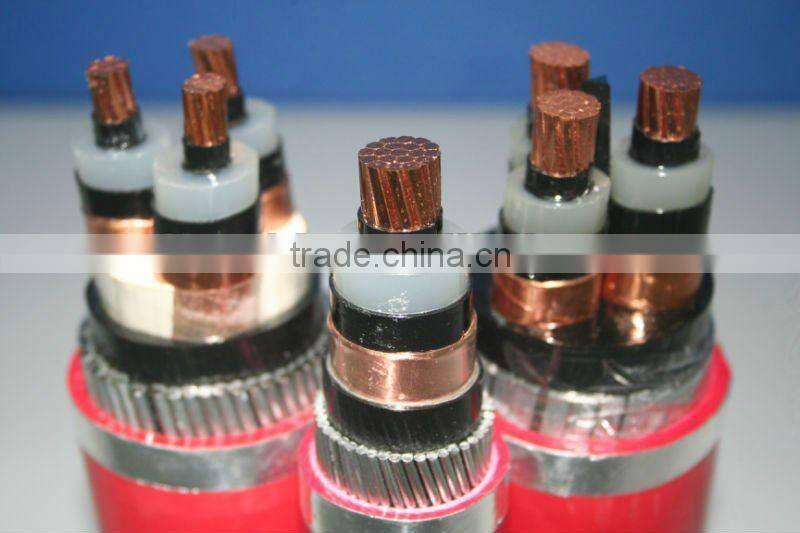

IEC60502 CU/PVC/SWA/PVC, CU/XLPE/SWA/PVC cable
0.6/1kv XLPE insulation Power Cable
Conductor:
Solid or stranded Copper/Aluminum
-Insulation:
Cross-linked polyethylene( XLPE or PVC)
-Circuit Identication:
The insulation shall be red, black
-Filler:
Polypropylene lament with lapped binding tape
-Inner Sheath:
Polyvinyl chloride (Black)
-Armor:
Galvanized steel wire/steel tape/Unarmored/Aluminum wire
-Core-covering:
Binding tape
-Outer Sheath:
Polyvinyl chloride (Black)
-Application:
For use in ducts, trays and direct burial in ground. The cable is subject to immerse in water all the time.
-Standards / Testing Specications:
IEC 60502-1
Installation
This cable can be installed in duct, tray or direct burial. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will not be affected by eciencies in the installation.
XLPE Insulation Power Cable
The Application of Power Cable
Power Cable is used to transmit power on power distribution circuit of AC 50Hz, rated voltage 35 KV or lower. It has not only excellent electrical performance, mechanical performance, heat-resistant & anti-aging performance, environment resistant character & chemical-corrosion resistant performance, but simple structure, light weight, without restriction by laying fall, and it also has high temperature (90) for long term
Instruction
I. Executive Standard: GB12706.1.3 adopts international electrician committee IEC60502
II. Working Features:
1. Environment temperature should be no lower than 0 for laying, the cable fall without limitation
2. The min bending radius of cable is stipulated as follows: Single core: 20(d+D) 5% three cores: 15(d+D) 5% (D is actual diameter of cable; D is actual outer diameter of conductor).
3. Operation temperature of cable PVC sheath is no more than 90.
4. Max rated temperature of cable conductor is 90, and no higher than 250 in time of short circuit (max. Lasting time is no longer than 5s).
The PVC Insulated Power Cable
The PVC insulated power cable and fire resistant cable are suitable for fixed laying in power transmission and distribution lines with A. C. 50Hz and voltage rating of up to or including 6KV.
1. Product Performance:
(1). The long-time permissible operation temperture of conductor shall not be higher than 70oC.
(2). Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160 oC.
(3). The power cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0 oC.
(4). Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame.
(5). Light weight, perfect bending properties, installed and maintained easily and conveniently.
Voltage rating: 0.6/1kV3.6/6kV.
Conductors: Copper or aluminum.
Number of cable cores: One core(Single core), two cores(Double cores), three cores, four cores(Four Equal-section-area cores or three equal-section-area cores and one smaller section area neutral core), five cores(Five equal-area cores or three equal-section-area cores and two smaller section area neutral cores). We provide armoured trpe and non-armored type for the power cables above.
Our company has been carrying out Chinese national standard GB 12706 and GB 12666.6(equivalent to IEC 60502 and IEC 60331)for PVC insulated power cable and fire resistant cable needed by domestic customer, and for foreign customers we can manufacture in accordance with BS, DIN and other countries, standards. In addition, we can design and manufacture PVC insulated power cable with special characteristics according to needs of customers.
